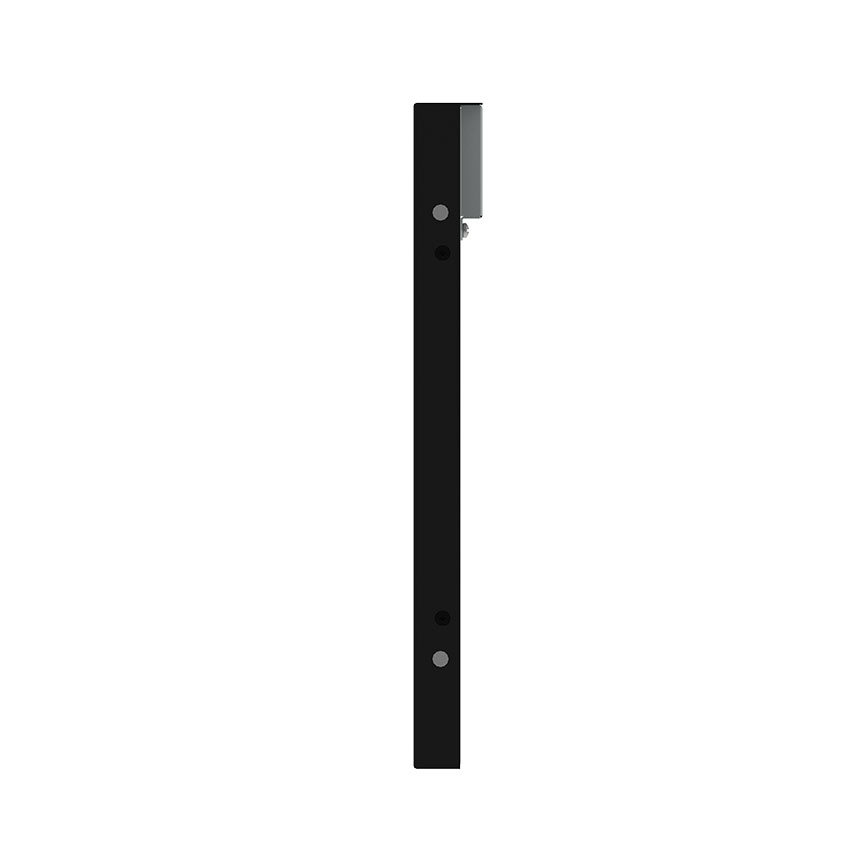

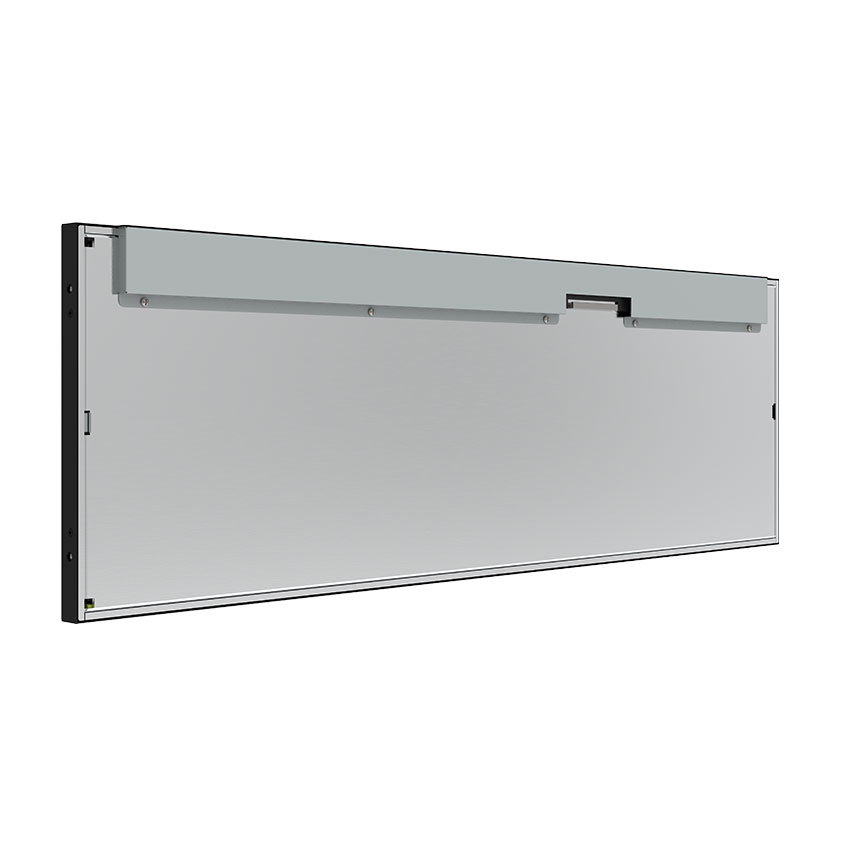

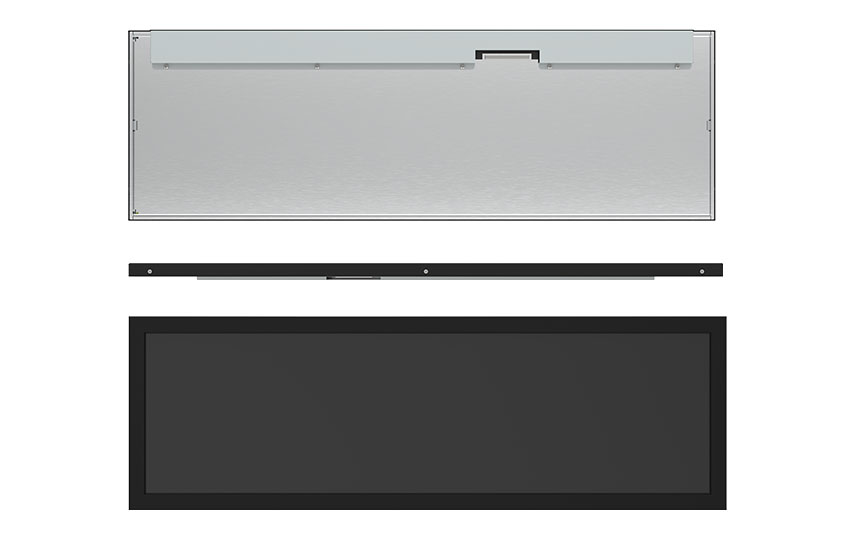

19.5" Industrial ultra High Brightness Stretch Bar LCD Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Specification
| Parameter | Specification |
|---|---|
| System Category | LCD/OLED/EPD Panel Module > TFT-LCM |
| Brand | RisingStar |
| Series | 19.5-inch |
| Model Number | RS195HAN-GE15 |
| Product Type | Graphic Type |
| Panel Type | a-Si TFT-LCD |
| Module Composition | LCD Module |
| Panel Size | 19.5" |
| Resolution | 1920 × 540 |
| Aspect Ratio | >3:1 (W:H) |
| Active Area (A.A.) | 476.64 × 136.41 mm |
| Outline Dimension | 497.4 × 158.4 mm |
| Max Thickness | 15.7 mm |
| LCD Family | VA Flexible Screen |
| Polarizer | Transmissive |
| Brightness | 1500 nits (Min.) |
| Contrast Ratio | 3000:1 (Typ.) |
| Viewing Angle | 89/89/89/89° (L/R/U/D) |
| View Direction | Full Viewing Angle |
| Display Colors | 1.07B |
| Backlight Type | WLED |
| Signal Type | LVDS |
| Signal Pins | 30 Pins |
| Touch Screen | None |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |

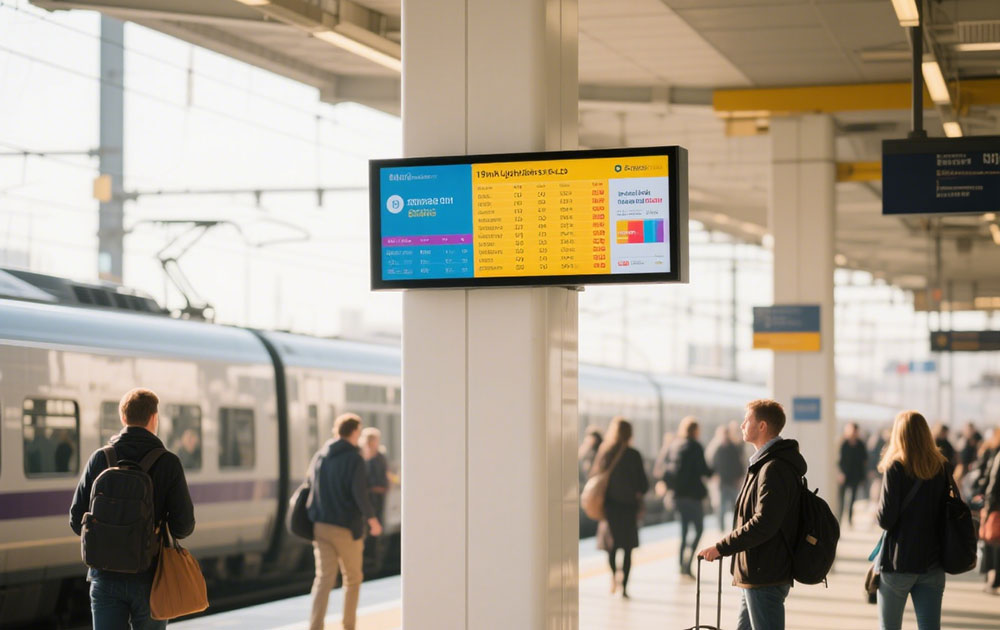

| Key Applications | Outdoor digital signage, bus station ads, retail display bars |
| Tags/Features | Color TFT LCD, wide temperature, high brightness, sunlight readable, cut-bar screen |
Description & Applications
The RisingStar RS195HAN-GE15 is a 19.5-inch high-brightness outdoor LCD module featuring a wide 1920×540 resolution with a >3:1 aspect ratio, ideal for digital signage and narrow bar display applications. With 1500 nits brightness, high contrast ratio (3000:1), and full viewing angles, it ensures clear readability even under direct sunlight. Its VA soft LCD panel with transmissive polarizer and WLED backlight delivers 1.07 billion colors, making it perfect for bus stop advertising screens, retail digital display bars, and other outdoor high-brightness applications. The module operates reliably across a wide temperature range (-30 ~ 80 °C), supporting outdoor environments in extreme weather conditions. Its slim 15.7 mm thickness and cut-bar shape allow flexible integration in digital signage, commercial displays, and specialized outdoor installations.
| Parameter | Specification |
|---|---|
| System Category | LCD/OLED/EPD Panel Module > TFT-LCM |
| Brand | RisingStar |
| Series | 19.5-inch |
| Model Number | RS195HAN-GE15 |
| Product Type | Graphic Type |
| Panel Type | a-Si TFT-LCD |
| Module Composition | LCD Module |
| Panel Size | 19.5" |
| Resolution | 1920 × 540 |
| Aspect Ratio | >3:1 (W:H) |
| Active Area (A.A.) | 476.64 × 136.41 mm |
| Outline Dimension | 497.4 × 158.4 mm |
| Max Thickness | 15.7 mm |
| LCD Family | VA Flexible Screen |
| Polarizer | Transmissive |
| Brightness | 500~5000 |
| Contrast Ratio | 3000:1 (Typ.) |
| Viewing Angle | 89/89/89/89° (L/R/U/D) |
| View Direction | Full Viewing Angle |
| Display Colors | 1.07B |
| Backlight Type | WLED |
| Signal Type | LVDS |
| Signal Pins | 30 Pins |
| Touch Screen | None |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Key Applications | Outdoor digital signage, bus station ads, retail display bars |
| Tags/Features | Color TFT LCD, wide temperature, high brightness, sunlight readable, cut-bar screen |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
