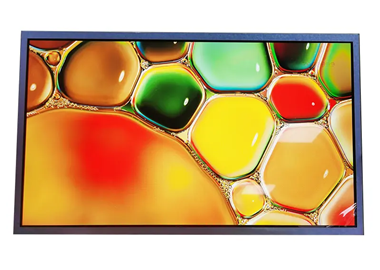

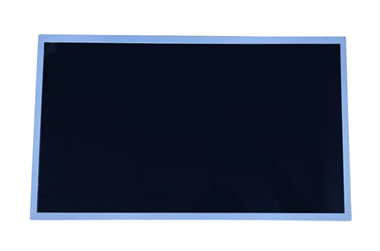

18.5 inch 1500 nits high brightness industrial LCD panel

18.5 inch 1500 nits high brightness industrial LCD panel

Brand LG/AUO/BOE
Model name RS185HAN-GE10
Screen size 18.5"
Screen type Outdoor LCD Panel
Resolution 1920(RGB)×1080 (HD)
Brightness 1500 cd/m²
Contrast Ratio 1200:1
Interface 30 pins LVDS
Working Temp -30 to 80 °C
Touch Option 10 point capacitive touch (Optional)
Application Industrial production monitoring and controlling
Overview Specifications Customized Services Support & Shipping

18.5 inch industrial display with 1500 nits brightness, 1920*1080 HD resolution, wide viewing angle. 1200:1 contrast ratio, 30 pins LVDS interface, -30 to 80 degree working temperature. Suitable for automatic industrial production monitoring and controlling. Option for 10 point capacitive touch.

18.5 inch industrial panel mail features

High brightness panel 1500 nits

Ultra HD 1920*1080 resolution (16:9)

High contrast ratio (1200:1)

Wide viewing angle

Regular LVDS interface

High frame rate: 60HZ

Aluminum die-casting, strong and easy heat dissipation

High and low temperature resistance

Through the controllable high temperature detection, the product adapts to the temperature between -30 to 85 degree

Private mold processing higher accuracy selection of high quality plates better electromagnetic oxidation ability.

RS185HAN-GE10 18.5 inch high brightness display 18.5 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal18.5 inch
BOE panel noGV185FHM-N10
Panel Brand RisingStarLCD
Model NoRS185FHM-DG15
Active Area 408.96(W)×230.04(H) mm
Pixels1920(RGB)×1080, FHD, 119PPI
Physical Size430.4(W)×254.6(H)×12(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )1500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio1200:1 (Typ.)
Optical Response Time30 (Typ.)(Tr+Td) ms
Nominal Input Voltage 5.0V (Typ.)
Frame Rate60Hz
Viewing Angle85/85/85/5 (Typ.)(CR≥10)
Weight [g] 1.8kgs(Typ.)
Interface Type30 pins   LVDS (2 ch, 8-bit)
Support Color 16.7M , 70% NTSC
Surface Treatment Hard coating (3H),
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
