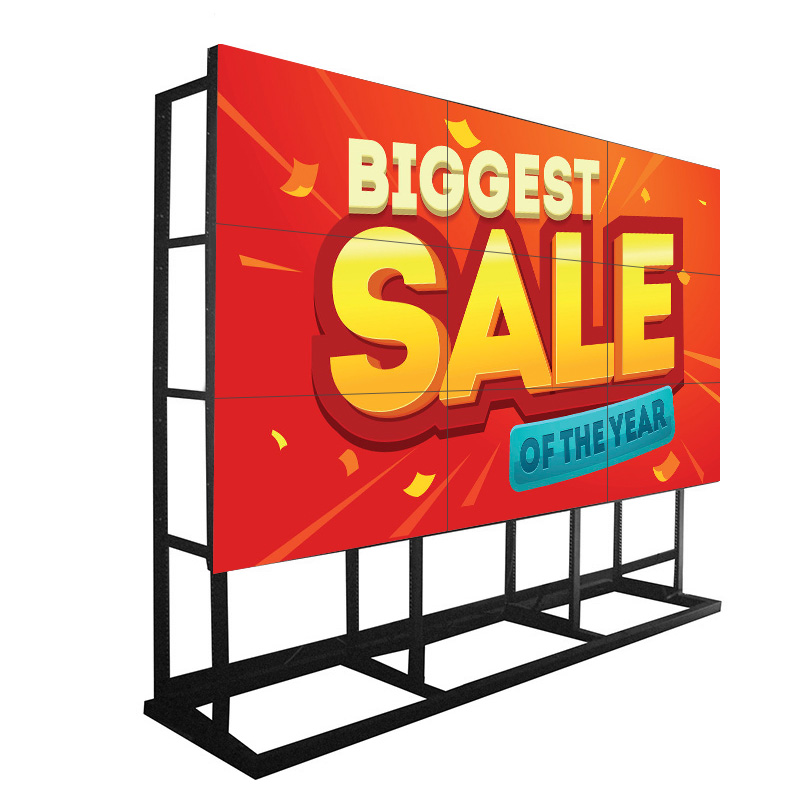

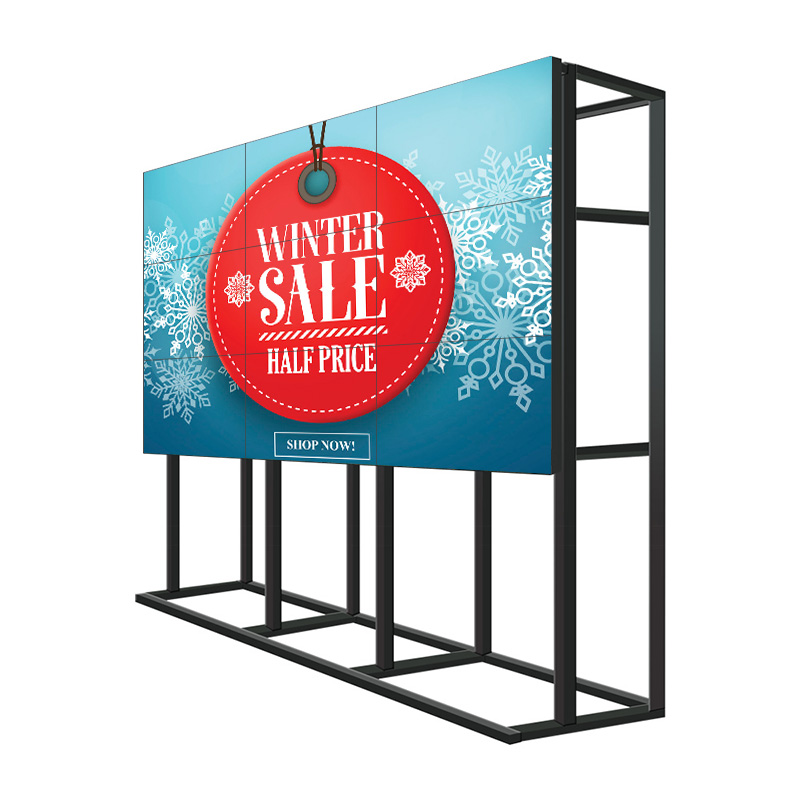

55 inch LCD video wall, advertising players
| Brand | Risinglcd |
| Model name | RS550ENT-N07 |
| Screen size | 55" |
| Screen type | LCD |
Narrow bezel 46 inch 49 inch 55 inch LCD video wall, advertising players
| LCD Video Wall Screen (WIth DID) | ||||||||
| Specifications | ||||||||
| Panel Size | With DID LCD Screen(super narrow bezel 5.3mm with LED Backlight) | |||||||
| Aspect Ratio | 16:9 | |||||||
| Max Resolution Support | 1920x1080 | |||||||
| Color | 8Bit,16.7M | |||||||
| Brightness (nits) | 700cd/m2 | |||||||
| Contrast | 3000:1 | |||||||
| Visual Angle (H/V) | 178° | |||||||
| Response Time | <=6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||

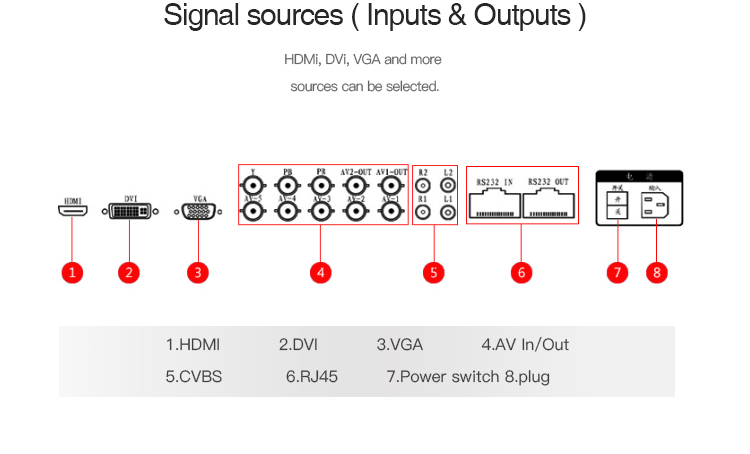

| Input and output | ||||||||
| DVI | 1 | |||||||
| D-15 RGB Input(VGA) | 1 | |||||||
| YUV/YPbPR | 1(3xBNC) | |||||||
| S-(YC) | 1(2xBNC) | |||||||
| Composite Video Input/(AV) | 3(3xBNC) | |||||||
| Composite Video Output | 2(2xBNC) | |||||||
| AUDIO INPUT | 1 | |||||||
| Split Screen | Support Picture in Picture(PIP/POP/PAP) | |||||||
| Power | ||||||||
| Power Supply | AC100V~240V | |||||||
| Maximum Power Consumption | 250W | |||||||
| Standby Power Consumption | <=3W | |||||||
| Temperature | ||||||||
| Operating Temperature | -20 ~ 70 °C | |||||||
| Working Humidity | 20%-80% | |||||||
| Dimension | 1025.65x579.84x105mm | |||||||
| Video Wall Controller(Built-in each Screen) | ||||||||
| Model No. | US-P817W | |||||||
| Input | CVBS | 1*BNC port, support PAL/NTSC all formats | ||||||
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
| CVBS | support PAL/NTSC all formats | |||||||
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
| Operate mode | Panel key operation(needs customization) | |||||||
| Standard RS232 port( provide free control software) | ||||||||
| ADD Code | ||||||||
| Engineering software | XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out) | |||||||
| Working temperature | 0~70 °C | |||||||
| working humidity | 5~95 %RH | |||||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||||
| power consumption | Max 300W,according to different Screen models | |||||||
| Dimension | 307×283×55(mm) | |||||||
| Weight | About 3.5KG | |||||||
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
