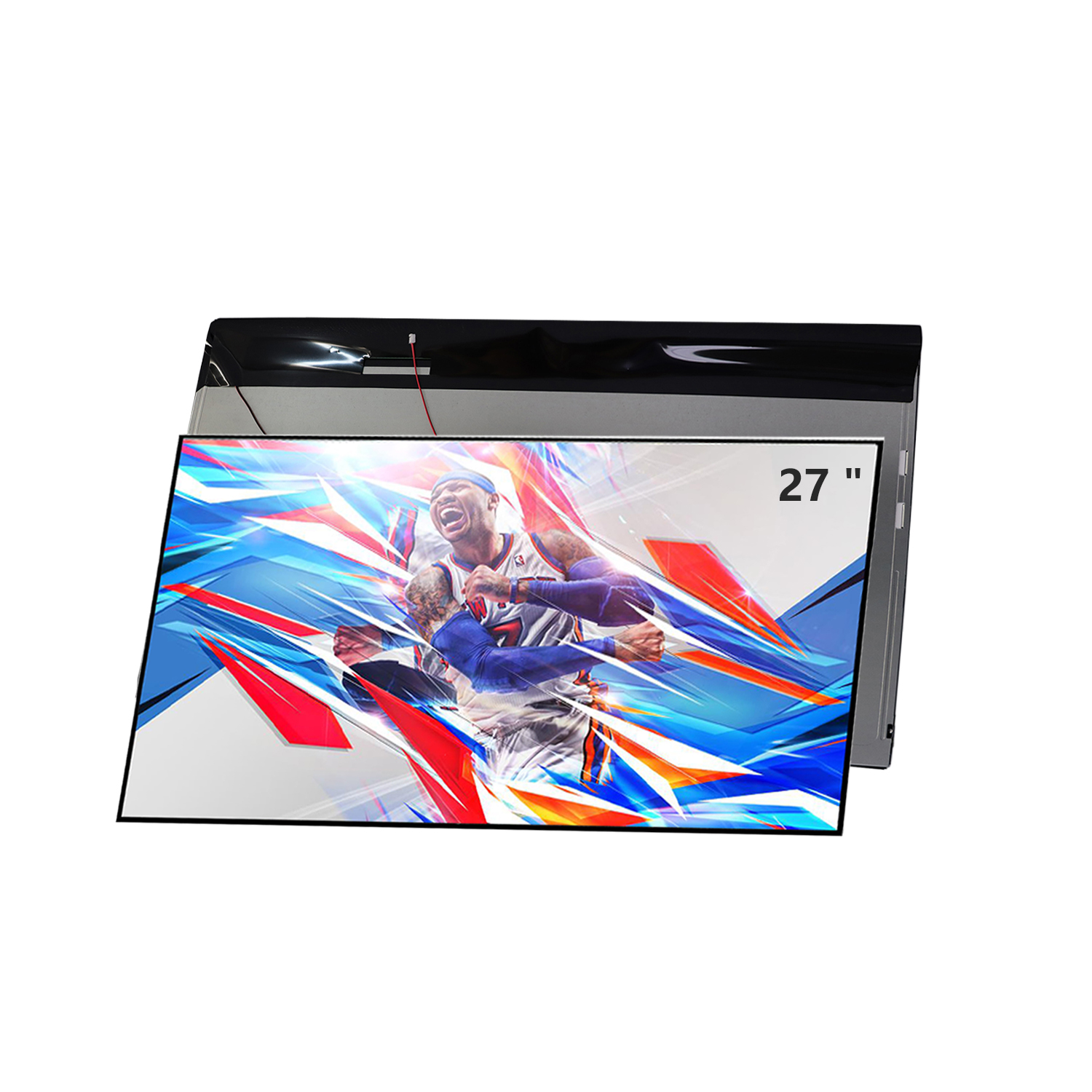

27 inch LCD module, 16:9 1920*1080 500 to 2000 nits 60 Hz Screen Backlight drive voltage: 12v, Signal interface: LVDS, full viewing angle
Functions and features:
1. Sunlight readable, 500 to 2000 nits.
2. Brightness adjustment method: automatic adjustment, manual adjustment, pwm adjustment.
3. The backlight structure adopts double-sided LED light source, the heat is lower, and the product is more stable.
4. The backlight driver adopts dual output voltage to be more stable
5. The backlight adopts 3M brightness enhancement technology, and the brightness is increased by 40% under the same power consumption.
6. The annual shipment of the same product is more than 100,000 units, which has been verified by the market
| 27" High Brightness LCD Panel | |
| Model No. | RS270ENT-N15 |
| Display Area | 597.8*336.3mm |
| Outline Dimenssion | 613.6*356.85*10.5mm |
| Panel Type | White LED backlit |
| Pixel Arrangement | edge emitting led-backlit |
| Resolution | 1920*1080pixel |
| Brightness | 1500nits |
| Aspect Ratio | 16:9 |
| Constrast Ratio | 1100:1 |
| Viewing Angle | 178°*178° |
| Driver Elements | a-Si TFT-LCD |
| Surface Treatment | Antiglare (Haze 3%) Hard coating (2H) |
| Display Color | 16.7M |
| Power | 42W |
| Weight | 3.8kg |
| Operating Temp. | 0°- 60°C |
| Storage Temp. | -20°- 60°C |
