Open frame 46 inch 4000 nits high brightness LCD monitor

Open frame 46 inch 4000 nits high brightness LCD monitor

RisingStar® 46 inch RS46-OEM sunlight readable display. 4000 nits high brightness, 1920(RGB)×1080 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

The Risingstar 46 inch open frame LCD monitor boasts a staggering 4000 nits high brightness, making it a perfect fit for outdoor industrial applications where direct sunlight can be a challenge. With its advanced technology, this monitor ensures clear and crisp display quality at all times, providing exceptional viewing experience. It features an array of video input options including HDMI, VGA, and DVI, making it exceptionally versatile. The durable open frame construction is made of premium quality metal, ensuring a rugged and long-lasting design. Enjoy a seamless and efficient display solution for your outdoor industrial needs with the Risingstar 46 inch open frame LCD monitor.

Description:

1) 46 inch, more sizes are available

2) Industrial A+ grade LCD panel

3) 4000 nits high brightness,vivid image layout,bets details performance.

4) Open frame design

5) High operation temperature, Hi-Tni screen .

6) Auto brightness adjustment.

7) Wide visual angle 178°

8) Build-in stable power,low consumption,long life span>60000hours

Applications:

Stock exchanges, Traffic control centers, metro, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.

High brightness open frame Monitor

With a great brightness of 4,000 nits, Risingstar 46 inch monitor clearly delivers contents and attract public attention, which is the ultimate display for outdoor visibility. this series is optically bonded which increases the perceived contrast ratio and cuts down on glare, providing amazing picture quality, even in direct sunlight. 4000 nits high brightness

Open Frame Monitor

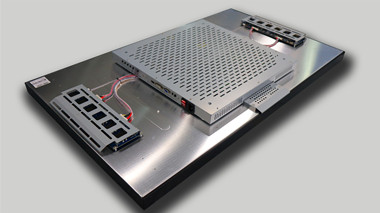

An Open Frame Monitor provides an LCD with the supporting structure to protect electronic components without using an enclosure or bezel. VESA mounting makes this monitor easy to install, making it the perfect solution for ATMs, vending machines, casino monitors, airport information displays, and mall kiosks.



PanelScreen Size46inch
Resolution1920*1080 FHD
Brightness (nits)4000 nits (Typ.) 3600 nits(Min.)
Display Area(mm)1018.08(W)×572.67(H) mm
Viewing Angle89/89/89/89 (Min.)(CR≥10)
Color1.07B
View angle (H x V)178/178
Ratio 16:9
Contrast Ratio4000:1
Portrait/LandscapeYes/Yes
Product
Specification
Products Size
(H*V*D)(mm)
1050.6(H)*610.3(V)*78.7(D)
Brightness ControlAuto-Sensitivity
Power SupplyAC 110V/240V
50Hz/60Hz
Cooling SystemSmart Direct Ventilation
Power Consumption300W (Typ.)
Operation Temperature-20℃ to  70℃
Operation Humidity5%-90%RH
VESA standard mount interface 400 * 400mm
Gross WeightTBD
Cooling FanNO
ConnectivityInputHDMI, DVI, VGA, PC, AUDIO
Output Earphone
RS46-OEM 46 inch high brightness display 46 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
