Specification
| Parameter | Specification |
|---|---|
| Screen Size | 37 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 540, 53 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 904.32(W) × 254.34(H) mm |
| Viewable Area | 907.5(W) × 257.5(H) mm |
| Surface Treatment | Anti-glare (Haze 1%), Hard Coating 3H |
| Brightness | 500~5000 cd/m² |
| Contrast Ratio | 5000:1 (Typ.) [Transmissive] |
| Optimal Viewing Angle | Full Viewing Angle |
| Optical Mode | Super MVA, Normally Black, Transmissive |
| IPS Hard Screen Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Soft Screen Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Response Time (G to G) | 11 ms (Typ.) |
| Color | 16.7M, 72% NTSC |
| Backlight Type | WLED, 50K hours, with LED driver |
| Weight | 4.67 ± 0.23 kg |
| Recommended Applications | Digital Signage, Outdoor High-Brightness Displays, Cut Bar Displays |
| Refresh Rate | 60 Hz, 120 Hz (60Hz input, with MEMC), 120 Hz+120 Hz, 240 Hz (60Hz input, with MEMC) |
| Touch Function | None |
| Signal System | LVDS (2 ch, 8-bit), 51 pins |
| Supply Voltage | 12 V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 60 °C |

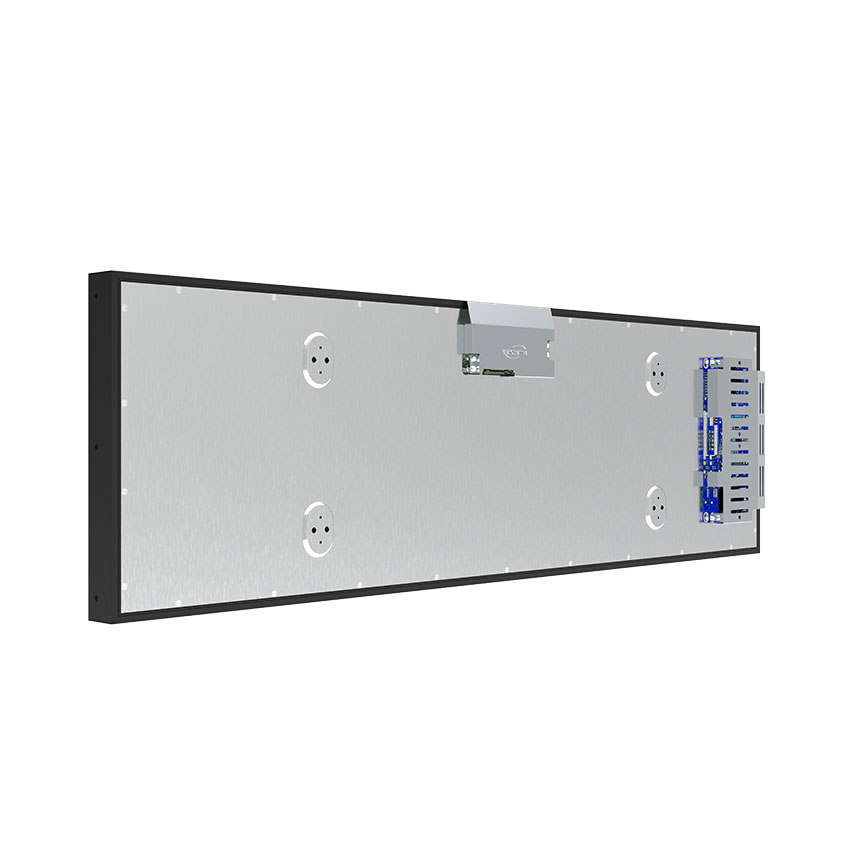

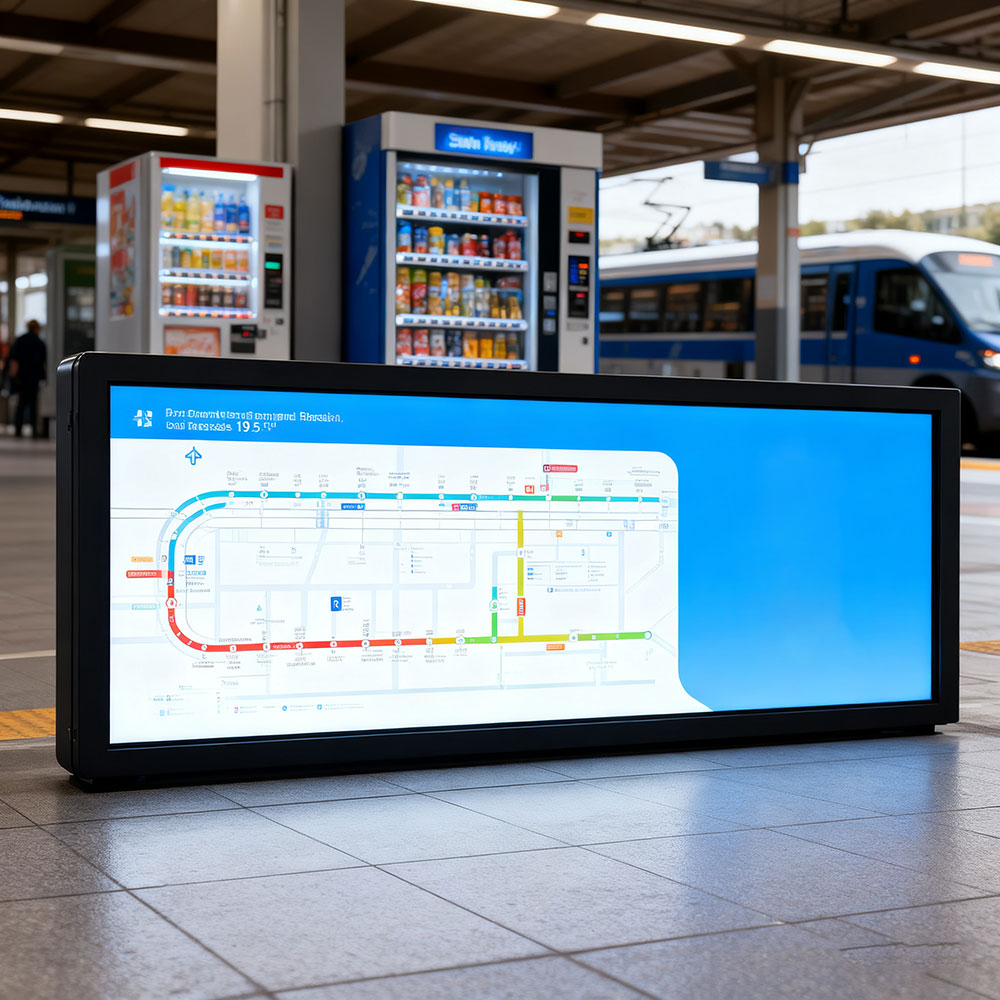

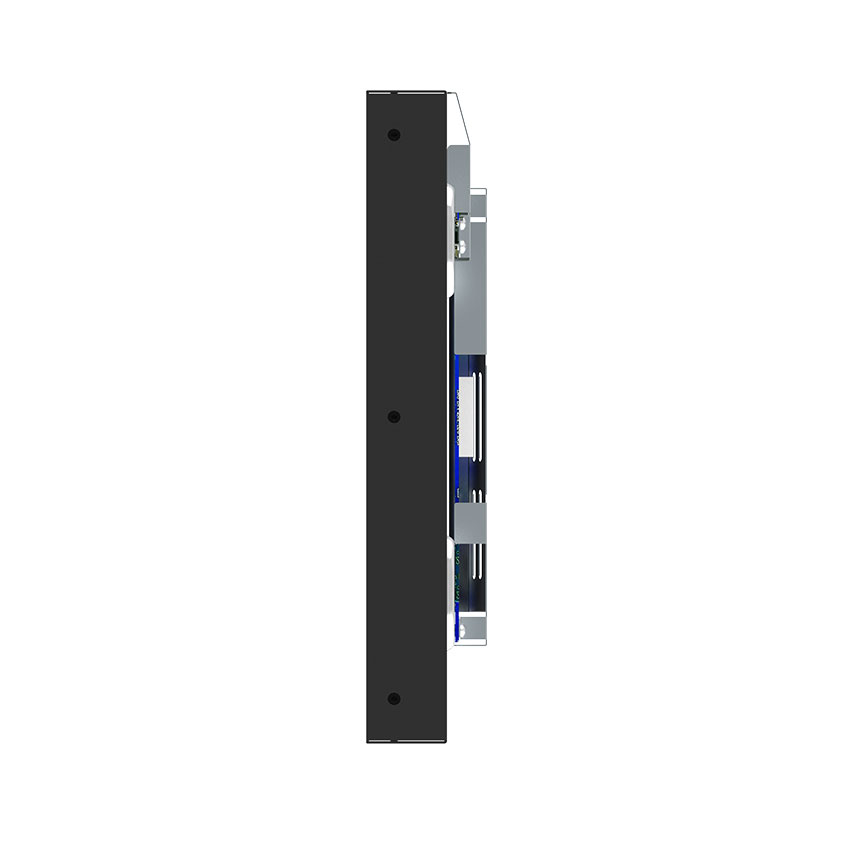

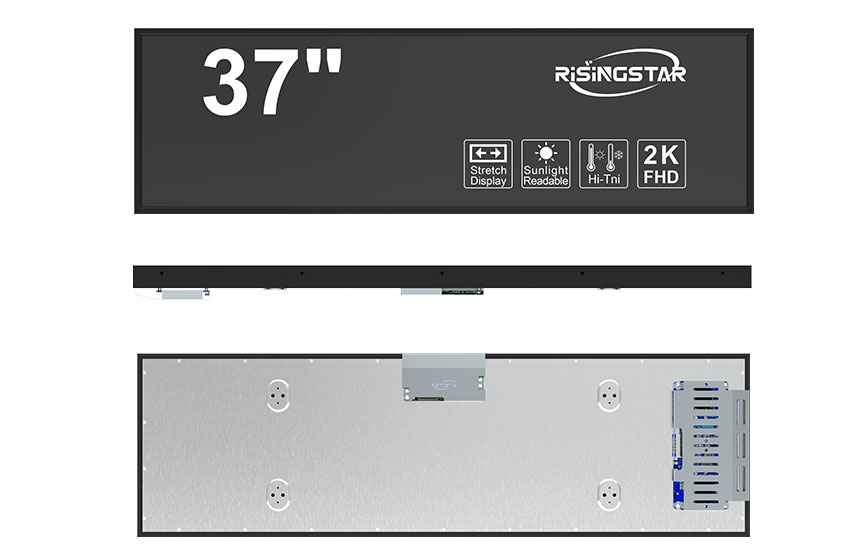

The 37-inch a-Si TFT-LCD module is designed for high-brightness outdoor applications, including digital signage and specialized cut-bar displays. With a 1920 × 540 resolution and Super MVA optical mode, it delivers deep blacks, high contrast (5000:1 typ.), and wide viewing angles (89° all directions). Its WLED backlight provides 500–5000 nits brightness, ideal for outdoor sunlight readability. The panel supports 60–240 Hz refresh rates with MEMC for smooth motion and is robust enough to operate in temperatures from -20°C to 60°C, with storage up to 70°C. The thin, lightweight design (4.67 kg) and durable anti-glare hard coating make it suitable for industrial digital signage, outdoor displays, and customized bar screens.
