75 inch 2500 nits high brightness outdoor LCD display panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

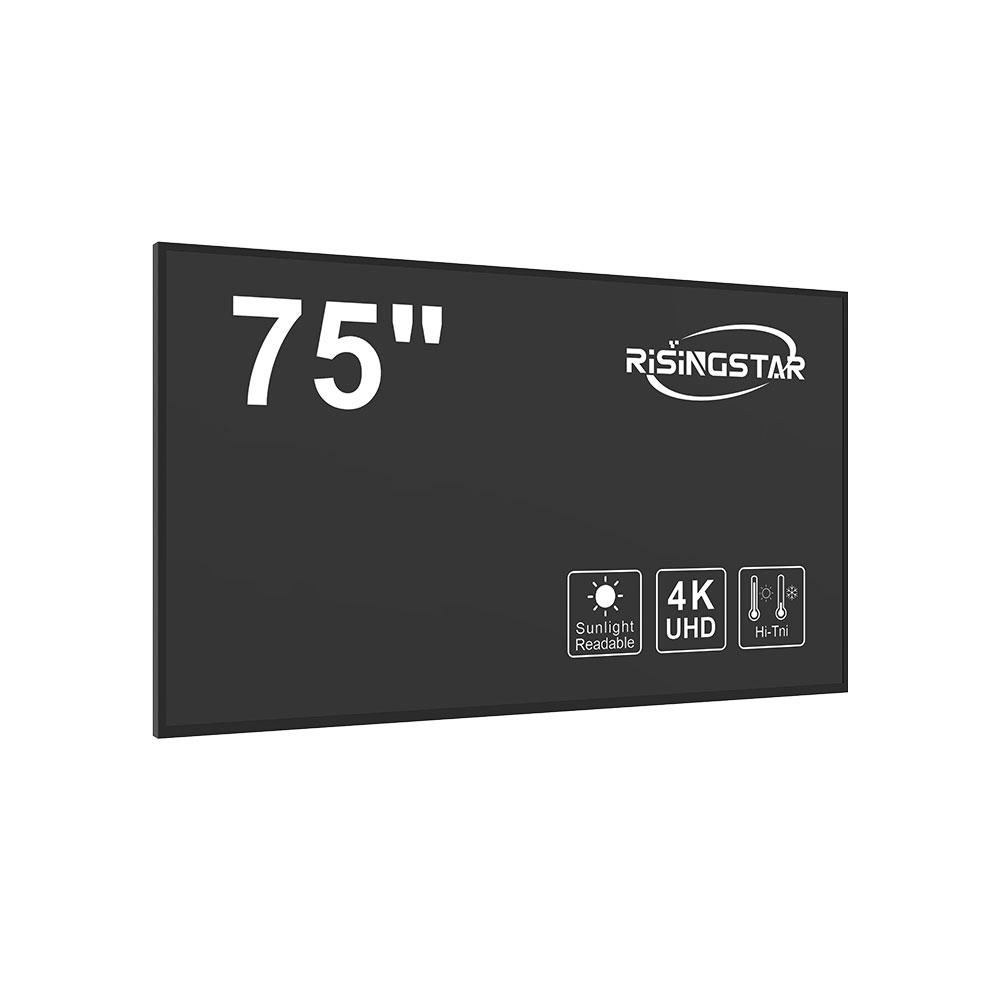

RS750ENT-GD25 is a wide-temperature LCD panel from RisingStar, utilizing original LCD open cells from LG combined with RisingStar's own design backlight. It retains the original features, including over 2500 nits of high brightness and operates without blackspot issues from -20℃ to 70℃.

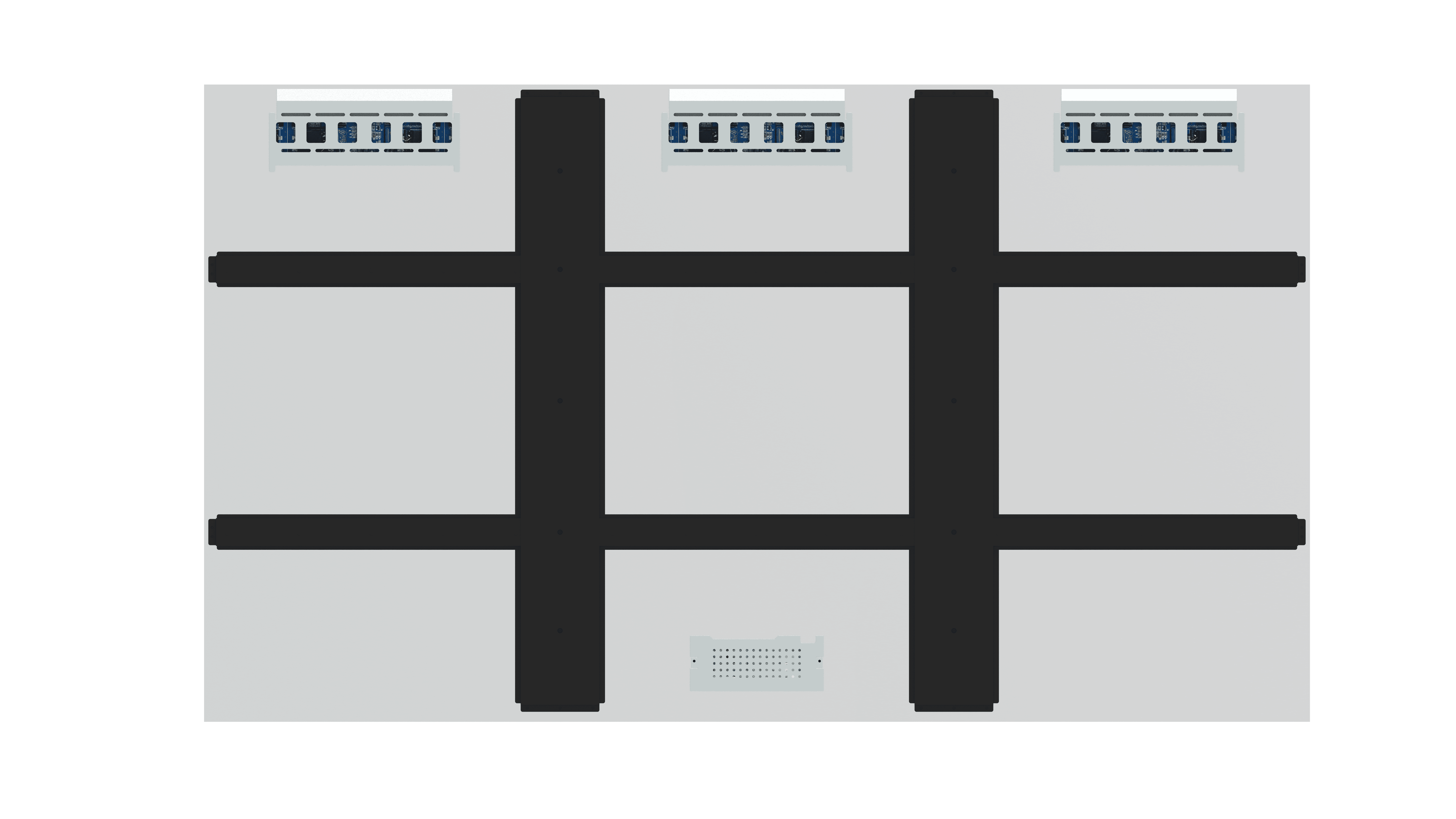

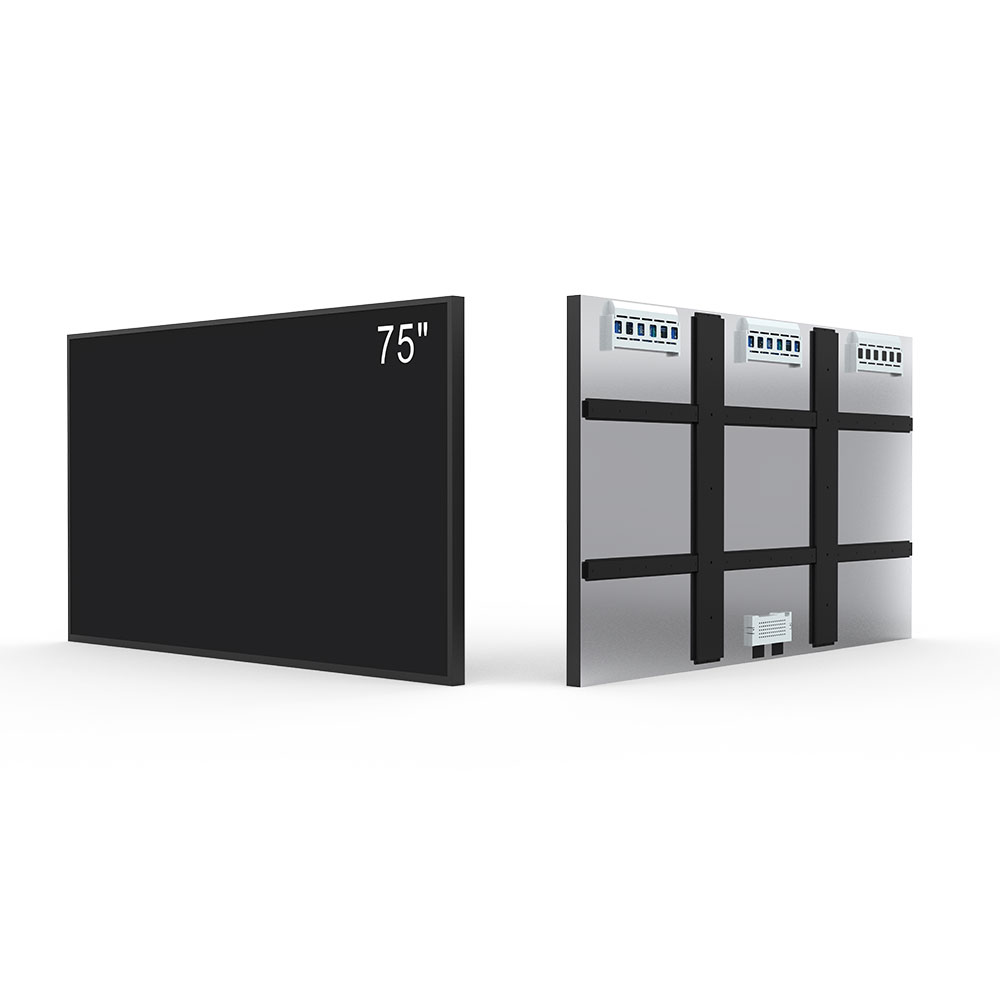

RS750ENT-GD25 employs a full aluminum plate to reduce weight, and steel bars to ensure the structure remains undeformed. The model has 6 power supplies for the LED backlight, which are designed to provide the ultra-high brightness required. Each power supply can operate independently and is easily replaceable.
4K UHD LCD panel, 3840*2160 high resolution make sure every detail can be showing.
As a large-sized Hi-TNI LCD panel, RS750ENT-GD25 is designed for outdoor digital signage on streets, displaying information or advertisements directly to passersby. This makes it an essential component of the DOOH (Digital Out-of-Home) advertising network.
| Brand | RsingStar |
| Size | 75" |
| Panel Type | A-si TFT LCD |
| Panel Model | RS750ENT-GD25 |
| Resolution | 3840(RGB)×2160 UHD 59PPI |
| Brightness | 2500 nits |
| View Angle | 89/89/89/89 |
| Contrast Ratio | 1400:1 |
| Display Colors | 16.7M 72% NTSC |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1649.66*927.936 mm |
| Backlight | White LED |
| Outline size | 1684.7(W)×970.5(H)×627(D) mm |
| Surface | AG, Hard coating 3H |
| Weight | 34.3 Kgs |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Interface | 51 pins V-by-One 8 lane Connector |
| input voltage | 90 ~ 264 V |
| Operating | -20 ~ 70 °C |
| Storage | -20 ~ 70 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
