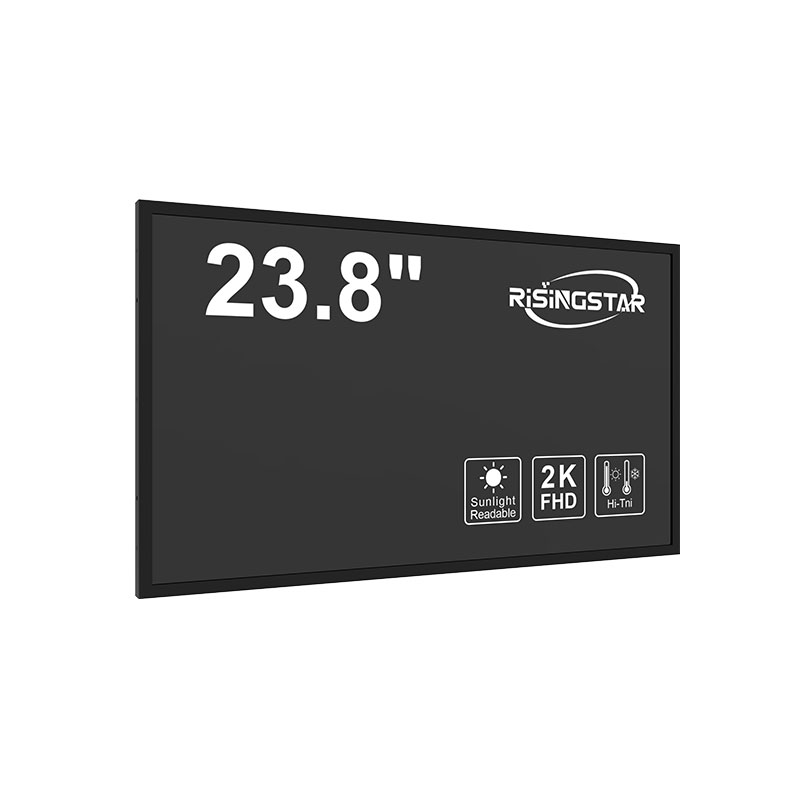

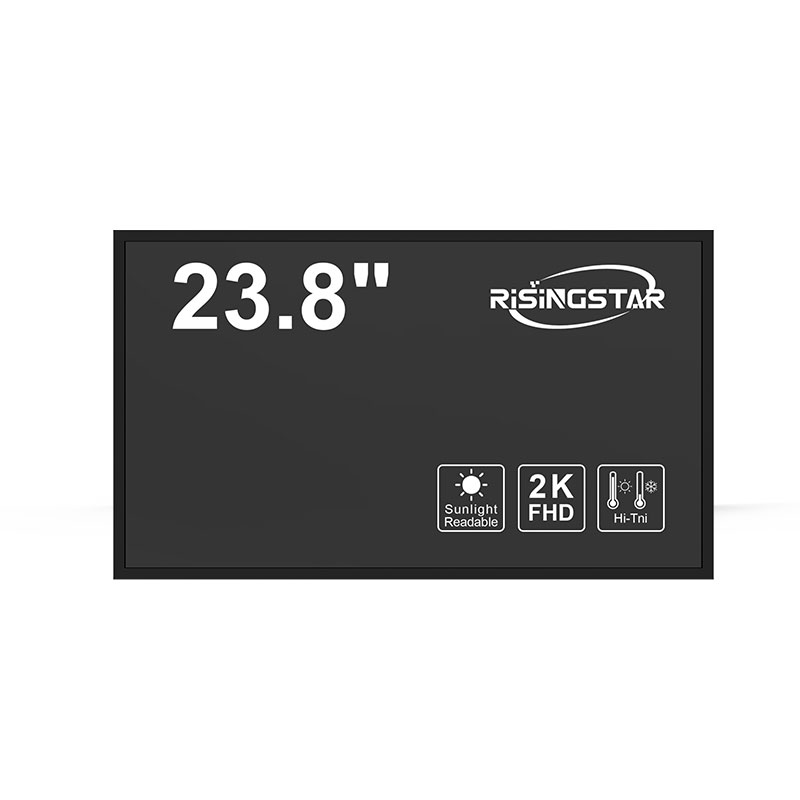

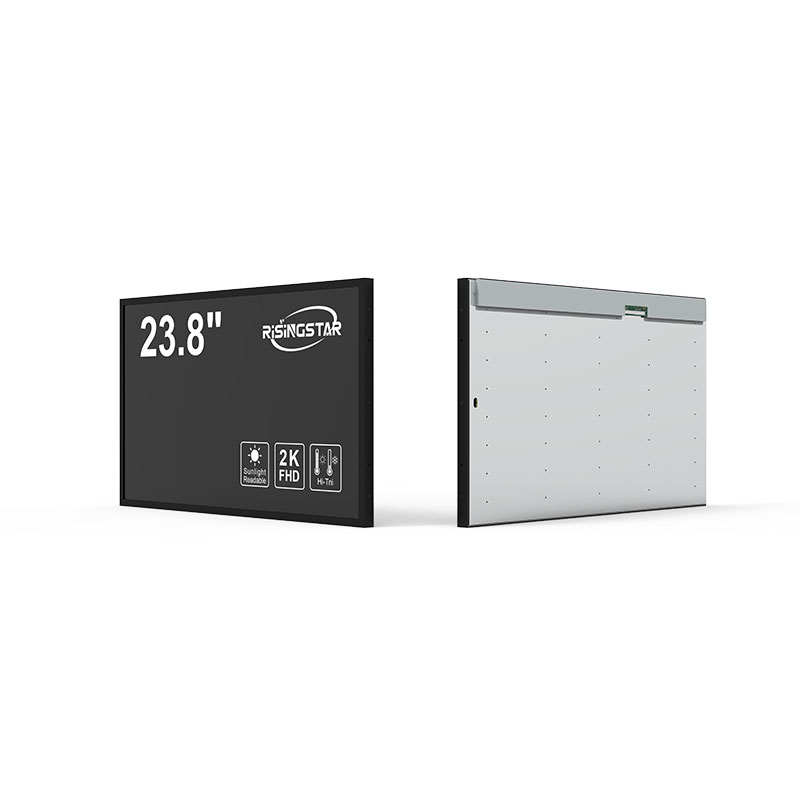

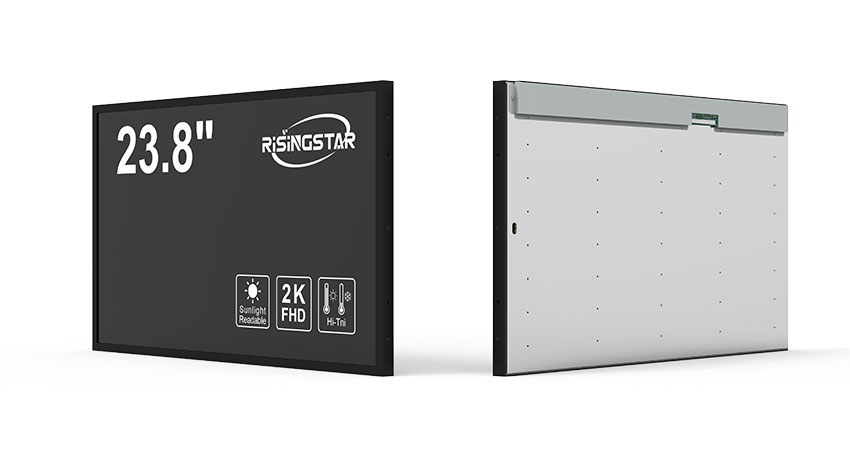

23.8" Industrial Ultra High Brightness LCD Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
23.8" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS238ENT-GE05 | 500 | 1920×1080 (FHD), 92 PPI |
| RS238ENT-GE10 | 1000 | 1920×1080 (FHD), 92 PPI |
| RS238ENT-GE15 | 1500 | 1920×1080 (FHD), 92 PPI |
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS238ENT-GD20 | 2000 | 1920×1080 (FHD), 92 PPI |
| RS238ENT-GD25 | 2500 | 1920×1080 (FHD), 92 PPI |
Reformatted Excel-Style Specification Table
| Category | Specification |
|---|---|
| Panel Size | 23.8 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 92 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 527.04 (W) × 296.46 (H) mm |
| Outline (Bezel Opening) | 530.2 (W) × 299.6 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 2500 nits (Typical) |
| Contrast Ratio | 1000:1 (Typical, Transmissive) |
| Recommended Viewing Angle | All-view |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Response Time | 14 ms (Typical, G-to-G) |
| Display Mode | IPS, Normally Black, Transmissive |
| IPS Hard-Screen Types | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Soft-Screen Types | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Color Support | 16.7M, 72% NTSC |
| Backlight Type | WLED [18S2P], 30,000 hours, Driverless |
| Weight | 2.00 / 2.10 kg (Typ./Max.) |
| Typical Applications | Computer Monitors, Industrial Equipment, Digital Signage, Medical Devices |
| Frame Rate | 75 Hz |
| Advanced Modes | 120 Hz (60 Hz input) with MEMC; 120 Hz + 120 Hz Backlight; 240 Hz (60 Hz input) |
| Interface | 30-pin LVDS (2-ch, 8-bit), Terminal Type |
| Supply Voltage | 5.0 V (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Professional English Description & Applications
This 23.8-inch a-Si TFT-LCD module is designed for high-performance display applications requiring superior visual quality, reliability, and wide-temperature operation. Featuring a Full HD resolution of 1920×1080 and 92 PPI density, it delivers sharp image clarity suitable for both professional and industrial environments.
The IPS (In-Plane Switching) technology provides full viewing angles of 89/89/89/89 with consistent color performance, making it ideal for multi-directional display setups. With brightness levels ranging from 500 to an impressive 2500 nits, the panel is suitable for indoor, high-brightness industrial, and semi-outdoor digital signage applications.
A durable 3H hard coating and anti-glare surface treatment enhance outdoor readability and resistance to scratches. The WLED backlight (18S2P) offers a long 30,000-hour lifespan and supports 16.7M colors at 72% NTSC, ensuring stable and vivid image reproduction.
High refresh configurations such as 120 Hz MEMC and up to 240 Hz (with 60 Hz input) provide enhanced motion rendering, beneficial for medical imaging, monitoring systems, and high-frame-rate digital signage. The panel uses a 30-pin LVDS dual-channel interface and operates reliably in extreme temperatures from −20 to 70 °C.
Recommended Application Scenarios
Computer Monitors
For office, gaming, and professional use with improved color stability and wide viewing angles.Industrial Displays
Suitable for factory HMIs, control systems, and production monitoring.Digital Signage & Kiosks
High-brightness range up to 2500 nits supports indoor and semi-outdoor installations.Medical Imaging & Healthcare Equipment
Stable IPS performance with wide viewing angles ensures accuracy in diagnostic screens.
| Category | Specification |
|---|---|
| Panel Size | 23.8 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 92 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 527.04 (W) × 296.46 (H) mm |
| Outline (Bezel Opening) | 530.2 (W) × 299.6 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 2500 nits (Typical) |
| Contrast Ratio | 1000:1 (Typical, Transmissive) |
| Recommended Viewing Angle | All-view |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Response Time | 14 ms (Typical, G-to-G) |
| Display Mode | IPS, Normally Black, Transmissive |
| IPS Hard-Screen Types | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Soft-Screen Types | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Color Support | 16.7M, 72% NTSC |
| Backlight Type | WLED [18S2P], 30,000 hours, Driverless |
| Weight | 2.00 / 2.10 kg (Typ./Max.) |
| Typical Applications | Computer Monitors, Industrial Equipment, Digital Signage, Medical Devices |
| Frame Rate | 75 Hz |
| Advanced Modes | 120 Hz (60 Hz input) with MEMC; 120 Hz + 120 Hz Backlight; 240 Hz (60 Hz input) |
| Interface | 30-pin LVDS (2-ch, 8-bit), Terminal Type |
| Supply Voltage | 5.0 V (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
