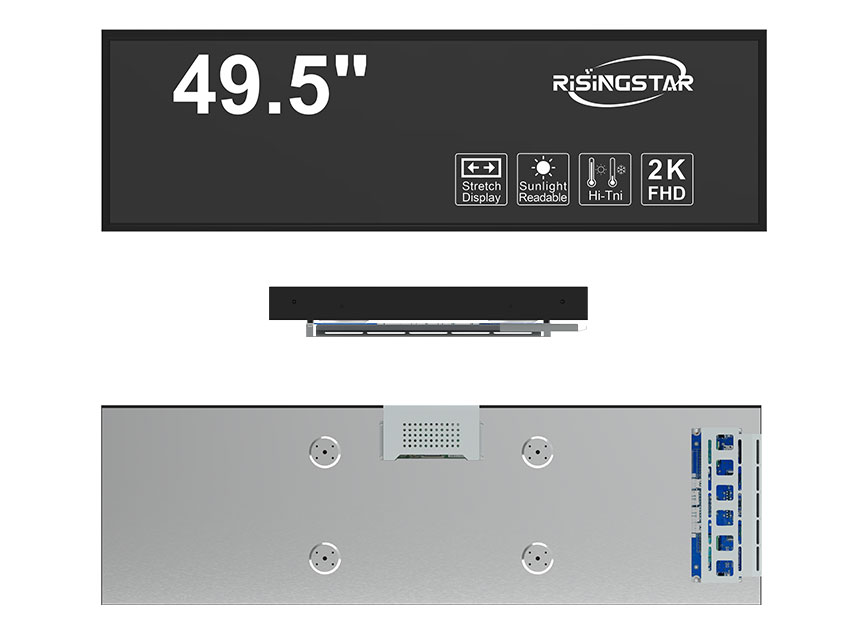

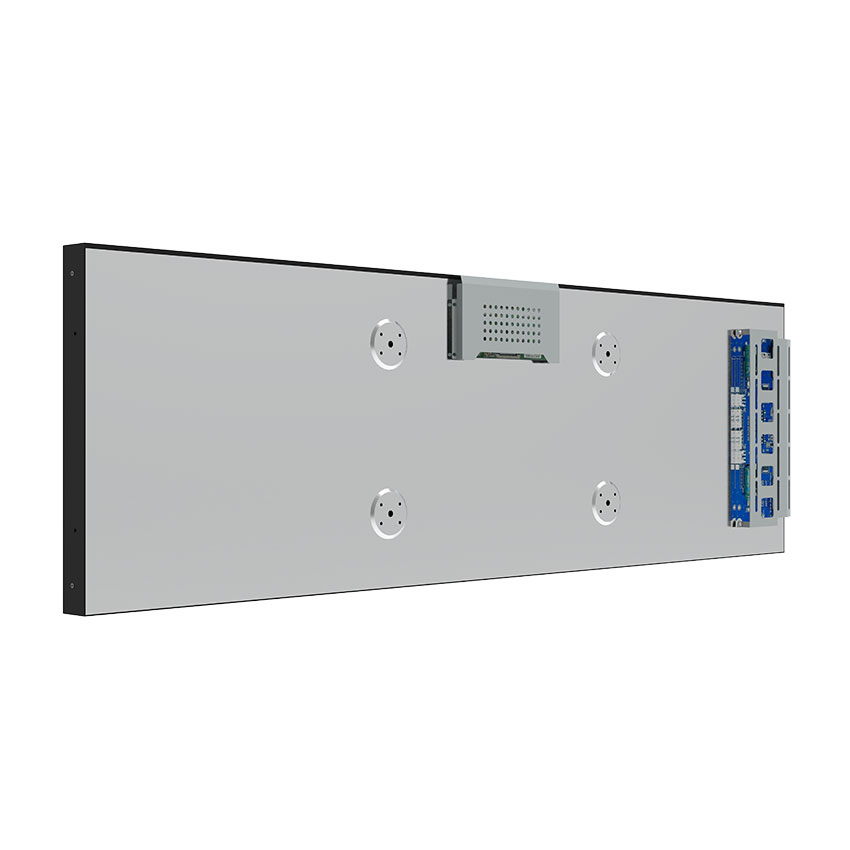

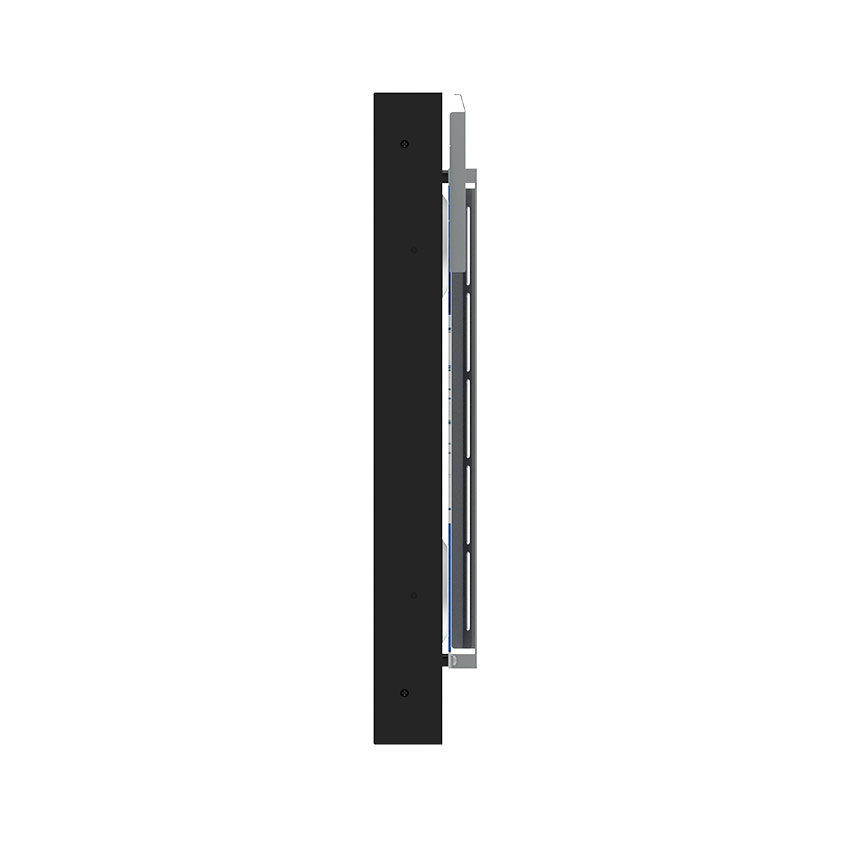

49.5" High Brightness Stretch LCD Display For Passenger Information Display

49.5" High Brightness Stretch LCD Display For Passenger Information Display

RS495LHW01D01: 49.5" 500+ nits large-format display. 1920x540, 40PPI. Engineered for outdoor signage and smart city screens.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

49

RS495LHW01D01 – Specification Table

ItemSpecification
Model NameRS495LHW01D01
Screen Size49.5 inch
Display Area (mm)1209.6(W) × 340.2(H)
Brightness500–5000 nits
Resolution1920(RGB) × 540, 40 PPI
Aspect RatioAbove 3:1
Contrast Ratio4000:1
Pixel Pitch (mm)0.630 × 0.630 mm (H×V), 40 PPI
Viewing Angle178° (H) / 178° (V)
Color Saturation16.7M, 50% NTSC
Display Colors16.7M
Response Time8 ms (G to G)
Input InterfaceHDMI1, VGA1, Audio In1, DVI1, USB1, BNC1, AV*1 (options), OSD Keys: 6
Input PowerAC 100–240V
Dimensions (mm)1230(L) × 370.2(H) × 48.0(W)
Mounting300 × 400 mm
Weight (Net)12.1 kg
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C

Product Description

The RisingStar RS495LHW01D01 is a 49.5-inch ultra-wide high brightness LCD display designed for industrial and outdoor digital signage applications. With brightness levels ranging from 500 to 5000 nits, it delivers clear, sunlight-readable visibility even in harsh outdoor environments. Its 3:1 aspect ratio, 4000:1 contrast, and wide viewing angles ensure excellent image clarity for long-distance and multi-angle viewing.

Equipped with versatile interfaces including HDMI, VGA, DVI, USB, BNC, and AV, the display supports flexible system integration in transportation, retail, EV charging stations, kiosks, and passenger information systems. The robust design includes -20 ~ 70 °C operating temperature, making it suitable for extreme weather conditions. Its lightweight structure and 300×400 mm VESA mounting allow easy installation in narrow or elongated spaces.

Typical Applications

  • Outdoor digital signage displays

  • Transportation passenger information systems (railway, metro, bus)

  • EV charging station screens

  • Retail store window-facing displays

  • Industrial control and monitoring terminals

  • Wayfinding and public information kiosks

  • Petrol station digital price boards & media displays

Model Name RS495LHW01D01
Screen Size 49.5 inch
Display Area (mm) 1209.6(W)×340.2(H) mm
Brightness500~5000NITS
Resolution1920(RGB)×540, 40PPI
Aspect Ratio above 3:1
Contrast Ratio 4000:1
Pixel Pitch (mm) 0.630×0.630 mm (H×V)  [40PPI]
Viewing Angle 178°(H),178°(V)
Color Saturation 16.7M   50% NTSC
Display Colors 16.7M
Response Time (Typical)8 (Typ.)(G to G)
Input Interface HDMI*1 VGA*1 AUDIO IN*1 HDMI*1DVI*1( USB*1 BNC*1 AV*1 options) OSD Key 6 Keys
Input Power AC100~240V
Dimensions (mm) 1230（L）*370.2（H）*48.00（W）
Mounting300x400mm
Weight (Net) 12.1KG
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS495LHW01D01 49.5 inch high brightness display 49.5 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
