32 inch open frame high tni sunlight readable tft LCD
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

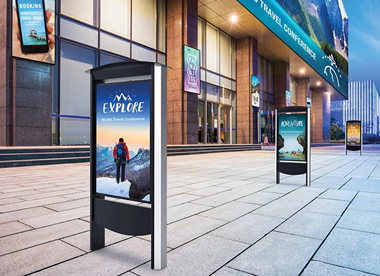

32-inch sunlight-readable high-nit TFT LCD display with 2500 nits brightness that it can be easily viewed in bright outdoor conditions, such as direct sunlight. This makes it ideal for outdoor digital signage, transportation displays, and other applications where high visibility is essential.
High brightness
2500 nits, high brightness ensures that the screen remains visible even in direct sunlight, making it easy for people to read important information and messages.
Open frame
1. Thin profile: The open-frame design allows the display to have a thin profile, which makes it suitable for applications where space is limited.
2. Easy integration: The open-frame design makes it easy to integrate the display into different types of products.
3. Cost-effective: Open-frame displays are often more cost-effective than other types of displays because they do not have an additional enclosure.
4. Customizable: Open-frame displays can be customized to meet specific application requirements, such as size, resolution, and brightness.
5. Versatile: They are suitable for a wide range of applications, including gaming machines, industrial equipment, medical devices, and transportation systems.
High Tni Industrial -grade.
Application of High TNI LC technology is a matter of great importance for displays operating in strong sunlight conditions. Long-term exposure to strong sunlight is associated with excessive heating of display’s surface (even up to 100oC). When classic LCD display operates in such conditions, there occur black spots on matrix. Thanks to High Tni LC technology, this problem is eliminated. The 32 inch open frame customized digital display screen are combined with high Tni 110°C industrial grade OC, the HD series can operate 24/7
| Panel | |
| display screen | LCD module |
| display size | 32 inches |
| display area | 698.4(W)×392.85(H) mm |
| display resolution | 1920*1080 |
| Zoom | 1 6 : 9 |
| brightness, | 2500 cd/m2 (center point, t yp ), sunlight readable |
| contrast | 1200:1 |
| viewing angle | 89/89/89/89(Min.)(CR≥10) |
| Response time | 8ms ( Gray To Gray ) |
| Uniformity of brightness | ≧ 75% |
| color depth | 16.7M |
| Operation temperature | -10 ~ 70 °C ,high tni |
| system configuration | |
| main chip | 68676 |
| multimedia | H265/H264 video decoding |
| system version | OSD |
| Interface | |
| input interface | USB * 1 DC*1 hdmi*1 VGA*1 |
| power input | AC 110-220V ~ 50/60Hz |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.

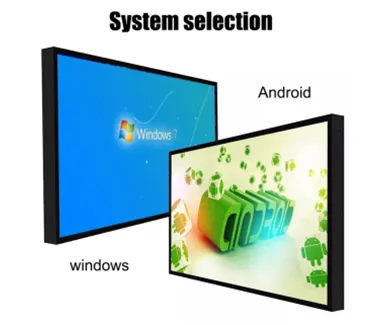

| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
