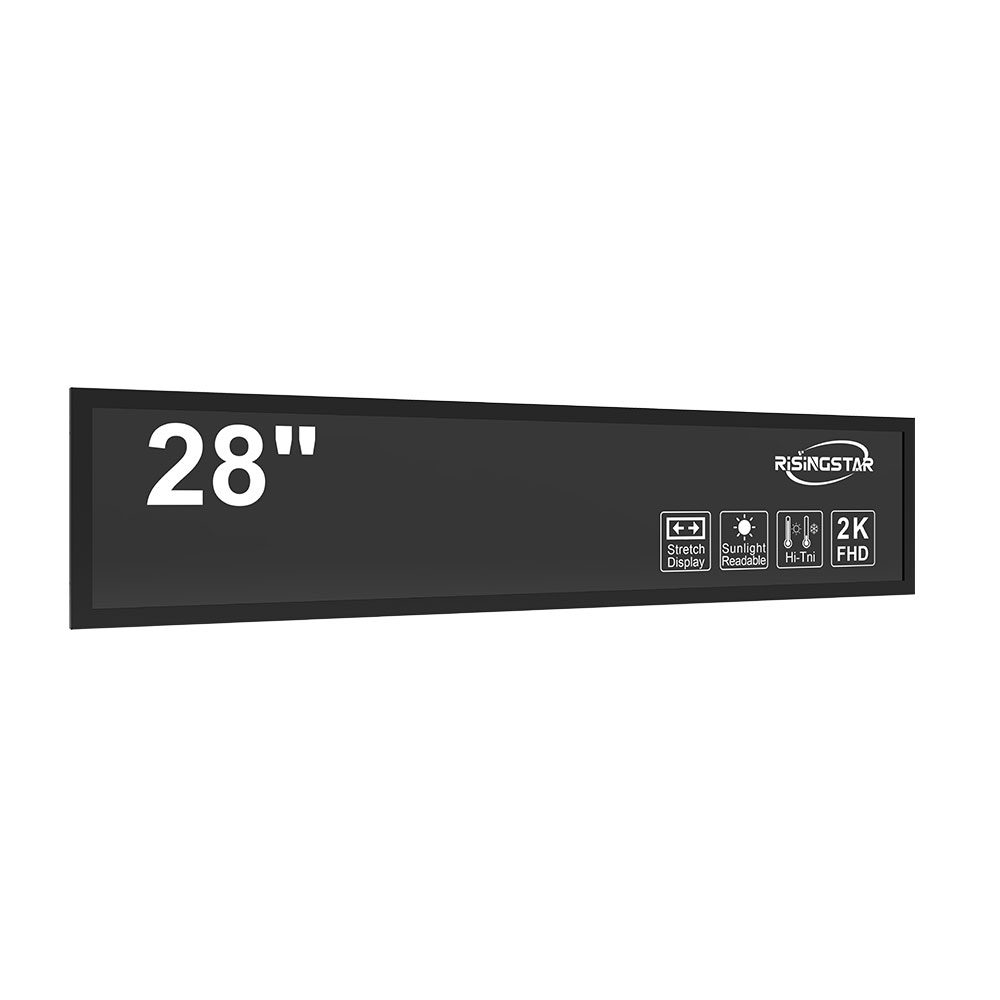

28 inch stretched LCD bar with 2500 nits brightness

28 inch stretched LCD bar with 2500 nits brightness

RisingStar® 28 inch P280IVN01.1 sunlight readable display. 2500 nits high brightness, 1920(RGB)×360 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

28 inch stretched bar LCD, 2500 nits LED Backlight , 1920* 360 resolution, ultra-wide aspect ratio above 3:1, RisingLCD RS280IVN-GD25 stretched LCD bar is equipped with AUO original a grade screen, with risinglcd customized D-LED back light it can offer 2500 nits brightness, this bar lcd display are ideal for digital signage, outdoor high brightness, cutting strip screen.

28 inch stretched LCD bar with 2500 nits brightness

28 inch ultra brightness LCD panel P280IVN01.1

Wide high resolution display 1920*360

High Brightness 2500 nits

DLED Backlight

Wide working temperature

Low Power Consumption

1.Full viewing angles,

Thanks to using a matrix with IPS/MVA technology, our high brightness display is readable from any angle. There is no gray scale inversion effect which is a normal feature of popular TN matrixes. A decrease in contrast when increasing the viewing angle is also significantly lower. Superior image quality and color depth at 178 degree ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.

2. Outstanding visibility high brightness

With a great brightness of 2500nits, this hi-tni LCD are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility

Screen Diagonal28 inch
LG panel noP280IVN01.1
Panel Brand RisingStar
Model NoRS280IVN-GD25
Active Area 698.4(W)×130.95(H) mm
Pixels1920(3)×360, 69PPI
Physical Size722.2(W)×154.75(H)×28.9(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )2500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 4000:1 (Typ.)
Optical Response Time8 (Typ.)(G to G) ms
Nominal Input Voltage 12.0V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [g] 2.4kgs(Typ.)
Interface Type51 pins   LVDS (2 ch, 8-bit)
Support Color 16.7M , 70% NTSC
Surface Treatment Hard coating (3H),
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
P280IVN01.1 28 inch high brightness display 28 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
