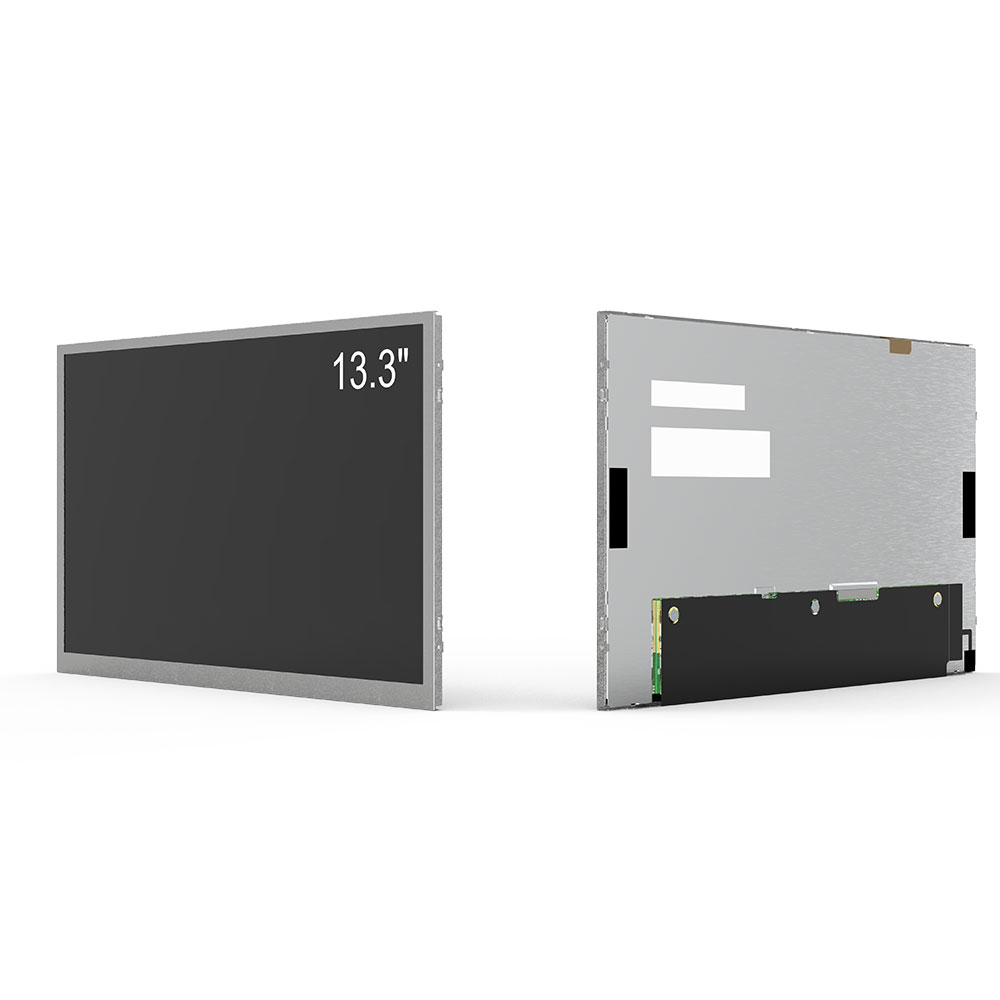

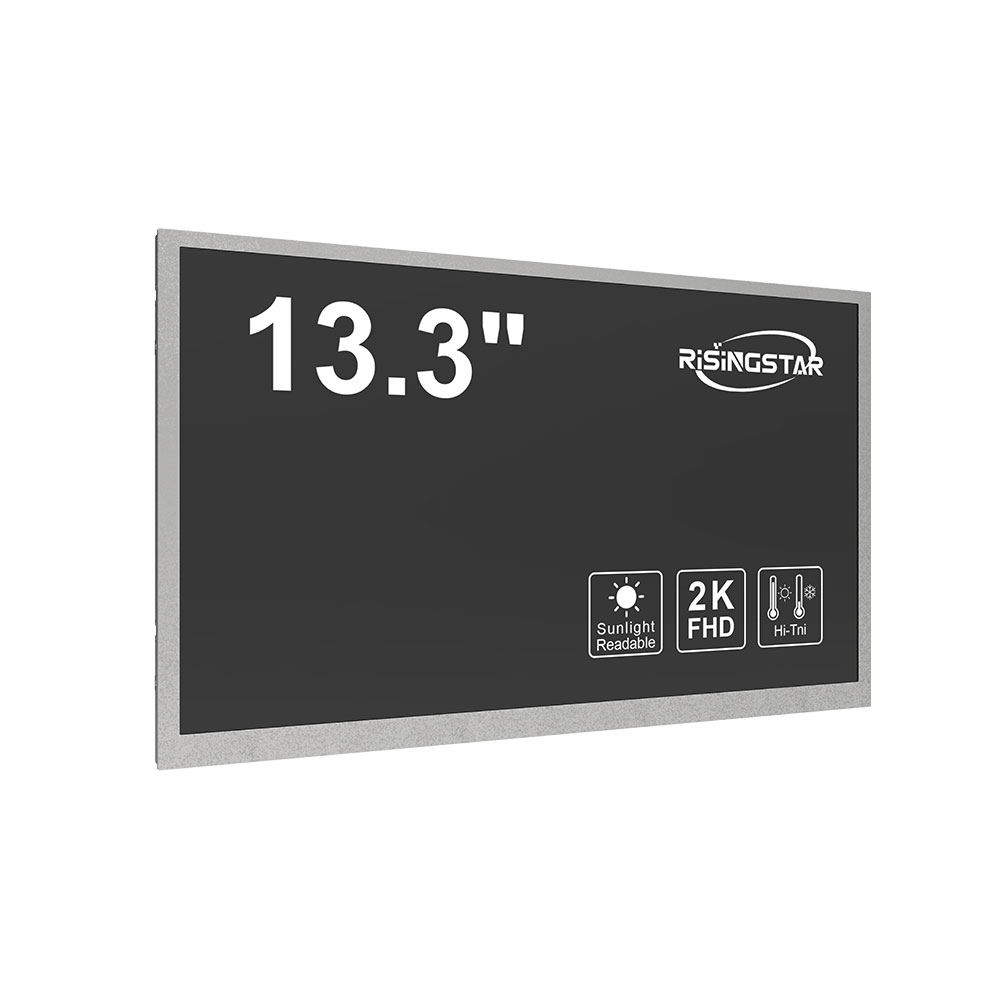

13.3" Sunlight Readable LCD Display – High Definition for Industrial and Transportation Applications
This 13.3" sunlight readable LCD display is designed for high performance use in demanding environments such as industrial control systems, gaming monitors, and transportation equipment. This a Si TFT LCD module features a 1920×1080 Full HD resolution and 166 PPI, ensuring crisp, clear images and vivid details. Its AHVA (IPS like) technology provides full viewing angles (89° in all directions) with consistent contrast and color performance, making it ideal for collaborative environments or multi angle installations.
With a brightness of up to 1000 to 5000 ints, an anti glare finish, and a high contrast ratio of 800:1, the display remains clear even in bright ambient light. It supports 16.7 million colors and 90% NTSC color gamut for rich, accurate visuals. Its fast response time of 25ms (Tr+Td) and 60Hz refresh rate (upgradable to 120Hz or even 240Hz via MEMC) ensure smooth motion rendering, which is essential for real time industrial or interactive content.
The module is compact and durable, with dimensions of 309.7×184.1×10.1 mm, a lightweight aluminum structure, and supports an operating temperature of 20°C to 70°C, suitable for indoor and outdoor applications. The display uses 50,000 hour WLED and is driven via a standard 30 pin LVDS interface, making it easy to integrate into a variety of professional equipment.
If you are looking for a sunlight readable LCD solution with excellent picture quality, wide viewing angle and industrial grade reliability, then this 13.3 inch high brightness display is the ideal choice for you.

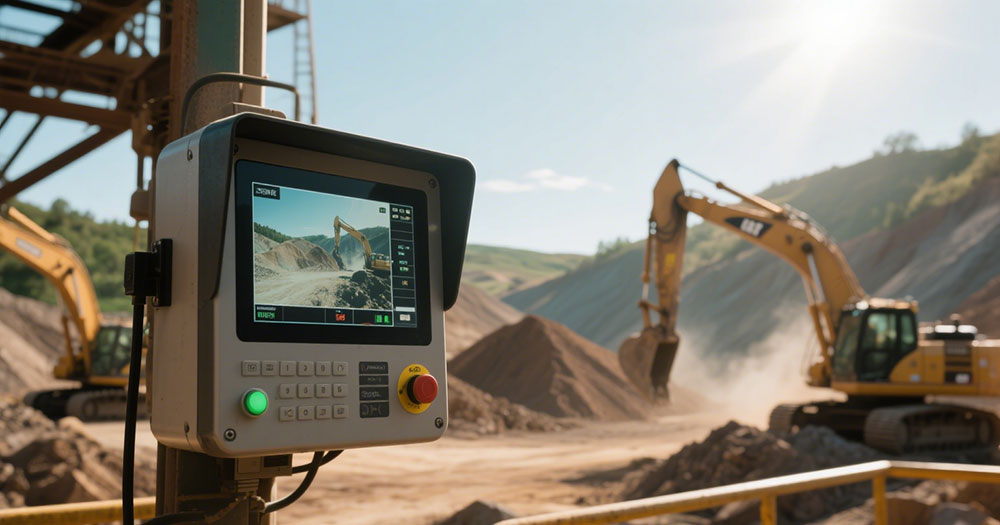

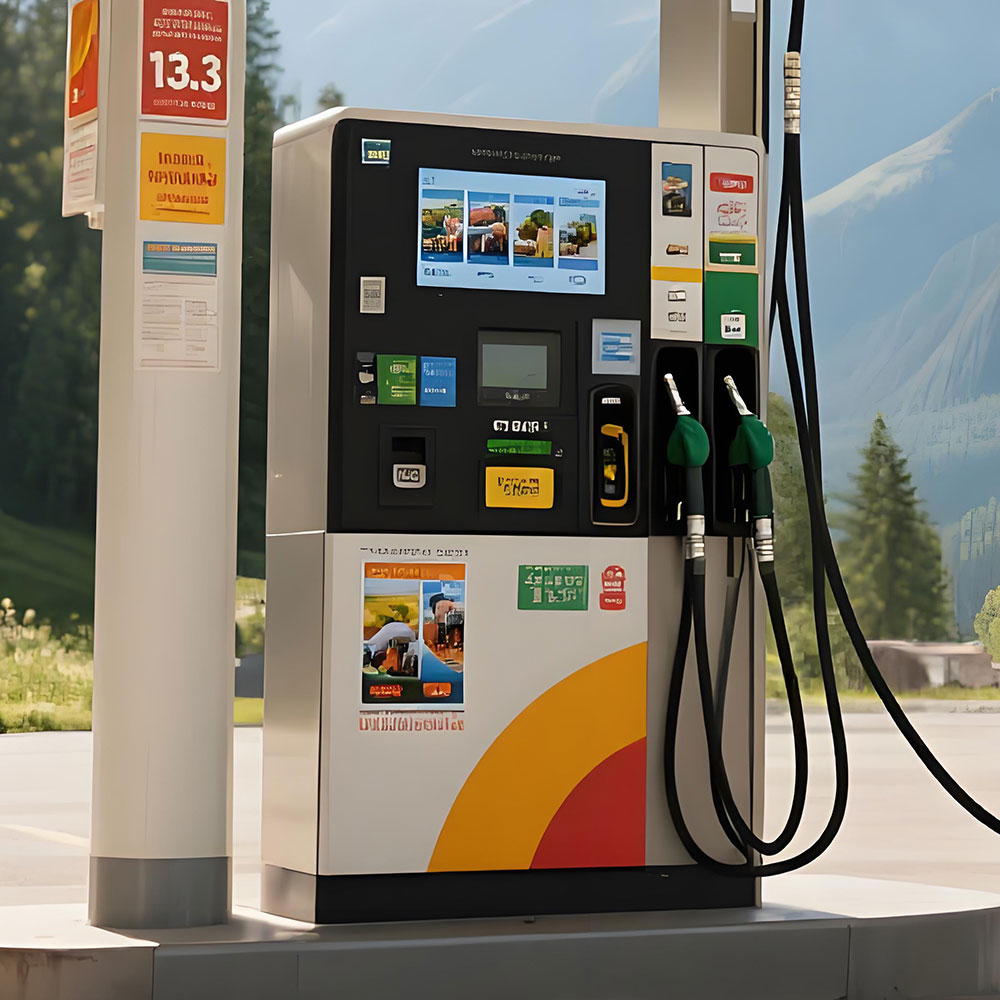

Application Cases
| Item | Specification |
|---|---|
| Panel Size | 13.3 inch |
| Panel Type | a-Si TFT-LCD, Transmissive |
| Resolution | 1920(RGB) × 1080 (FHD), 166 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Display Area | 293.472(W) × 165.078(H) mm |
| Outline Dimensions | 309.7(W) × 184.1(H) × 10.1(D) mm |
| Active Area (Aperture) | 295.07(W) × 166.68(H) mm |
| Surface Treatment | Anti-Glare (Matte) |
| Brightness | 1000 to 5000 |
| Contrast Ratio | 800:1 (Typ., Transmissive) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR ≥10) |
| Display Mode | AHVA (IPS-like), Normally Black, Transmissive |
| Response Time | 25 ms (Typ., Tr + Td) |
| Color Support | 16.7M Colors, 90% NTSC |
| Backlight Type | WLED, 50,000 hours lifetime, with LED Driver |
| Refresh Rate | 60Hz (Standard) 120Hz / 240Hz via MEMC optional |
| Touch Technology | No Touch |
| Interface | 30-pin LVDS (2 channel, 8-bit), Terminal Type |
| Power Supply Voltage | 3.3V (Typ.) |
| Weight | ≤ 500g |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -20°C to 70°C |
| Applications |
| Item | Specification |
|---|---|
| Panel Size | 13.3 inch |
| Panel Type | a-Si TFT-LCD, Transmissive |
| Resolution | 1920(RGB) × 1080 (FHD), 166 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Display Area | 293.472(W) × 165.078(H) mm |
| Outline Dimensions | 309.7(W) × 184.1(H) × 10.1(D) mm |
| Active Area (Aperture) | 295.07(W) × 166.68(H) mm |
| Surface Treatment | Anti-Glare (Matte) |
| Brightness | 1000 to 5000 |
| Contrast Ratio | 800:1 (Typ., Transmissive) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR ≥10) |
| Display Mode | AHVA (IPS-like), Normally Black, Transmissive |
| Response Time | 25 ms (Typ., Tr + Td) |
| Color Support | 16.7M Colors, 90% NTSC |
| Backlight Type | WLED, 50,000 hours lifetime, with LED Driver |
| Refresh Rate | 60Hz (Standard) 120Hz / 240Hz via MEMC optional |
| Touch Technology | No Touch |
| Interface | 30-pin LVDS (2 channel, 8-bit), Terminal Type |
| Power Supply Voltage | 3.3V (Typ.) |
| Weight | ≤ 500g |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -20°C to 70°C |
| Applications |
