4000 nits 86 inch sunlight readable outdoor digital LCD for kiosk

4000 nits 86 inch sunlight readable outdoor digital LCD for kiosk

RisingStar® 86 inch RS860EQL-GD40 sunlight readable display. 1000 nits high brightness, 1920(RGB)×1080 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

This 86-inch a-Si TFT-LCD panel delivers ultra-high-definition 4K resolution with a wide 89-degree viewing angle and IPS “normally black” mode for superior image stability and color accuracy. With adjustable brightness from 500 to 5000 nits, it supports both indoor and high-ambient-light environments. The anti-glare surface and 2H hard coating enhance readability and durability, particularly for professional and commercial display applications.

Equipped with WLED backlight (30,000 hours), high contrast, and optional MEMC up to 240 Hz, the panel provides smooth motion performance suitable for dynamic content such as education, conferencing, digital signage, and interactive systems. The V-by-One 8-lane interface ensures stable high-bandwidth transmission for 4K display requirements.

Application Scenarios

This 86" LCD module is ideal for:

  • Interactive whiteboards in classrooms, meeting rooms, and corporate training environments

  • 4K televisions and smart TV systems

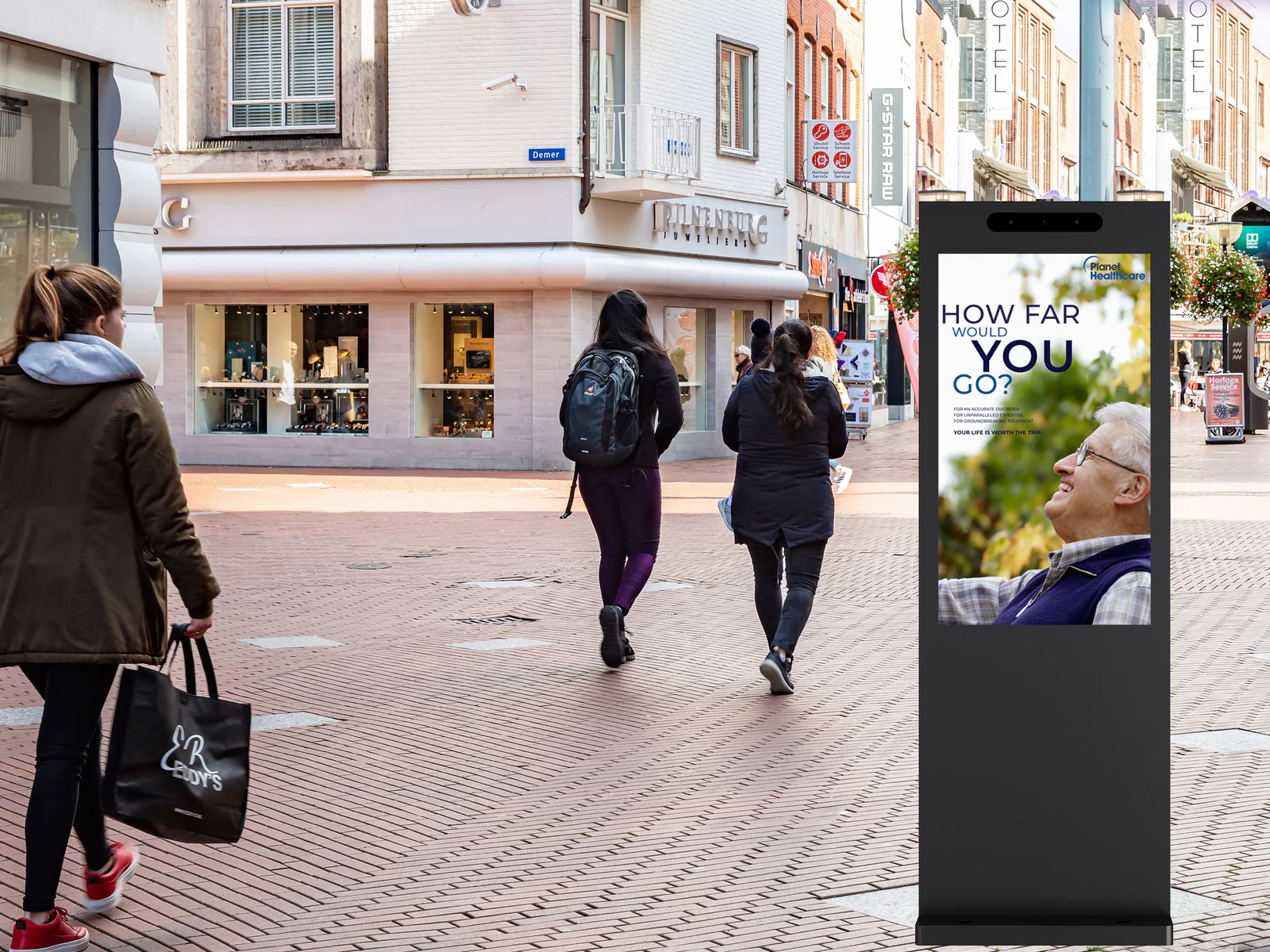

  • Large-format digital signage in malls, airports, and transportation hubs

  • Command centers and monitoring systems requiring wide viewing angles

  • Video conferencing displays with fast response and uniform brightness

CategorySpecification
Panel Size86 inch
Panel Typea-Si TFT-LCD, LCM
Resolution3840 (RGB) × 2160, UHD, 51 PPI
Pixel ArrangementRGB Vertical Stripe
Active Area1895.04 (W) × 1065.96 (H) mm
Outline Opening Size1897.0 (W) × 1068.0 (H) mm
Surface TreatmentAnti-glare (Haze 3%), Hard Coating (2H)
Brightness500 ~ 5000 nits
Contrast Ratio1200:1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Min.) (CR ≥10) – L/R/U/D
Display ModeIPS, Normally Black, Transmissive
Supported IPS TypesAAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
Supported VA TypesASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Viewing DirectionAll View
Response Time8 ms (Typ., G-to-G)
Display Colors16.7M / 1.07B, 72% NTSC
Backlight TypeWLED, 30,000 hrs, Built-in LED Driver
Refresh Rate60 Hz
Enhanced Refresh• 120 Hz (60 Hz input, with MEMC)
• 120 Hz + 120 Hz (120 Hz panel + 120 Hz backlight)
• 240 Hz (60 Hz input, with MEMC)
Touch ScreenNone
Panel Weight34.1 / 35.8 kg (Typ. / Max.)
ApplicationsTV, Interactive Whiteboard
Signal InterfaceV-by-One, 8 lanes, 56-pin terminal
Driving Voltage12.0 V (Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS860EQL-GD40 86 inch high brightness display 86 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
