46 Inch Sunlight Readable LCD Display Manufacturer
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

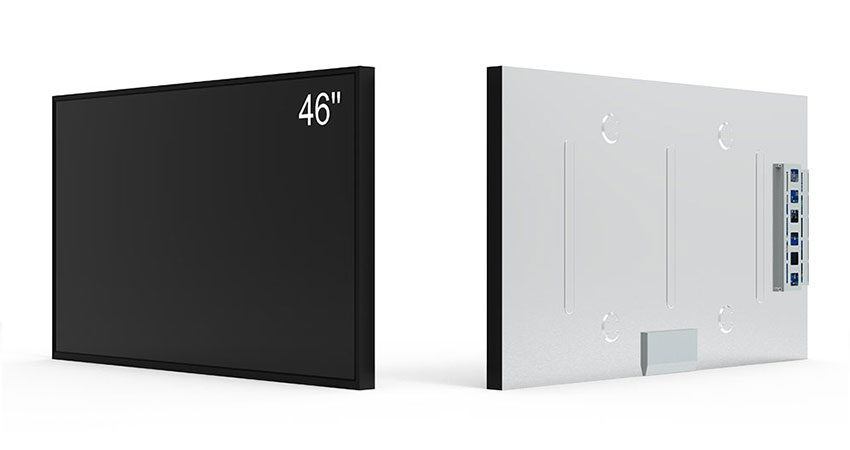

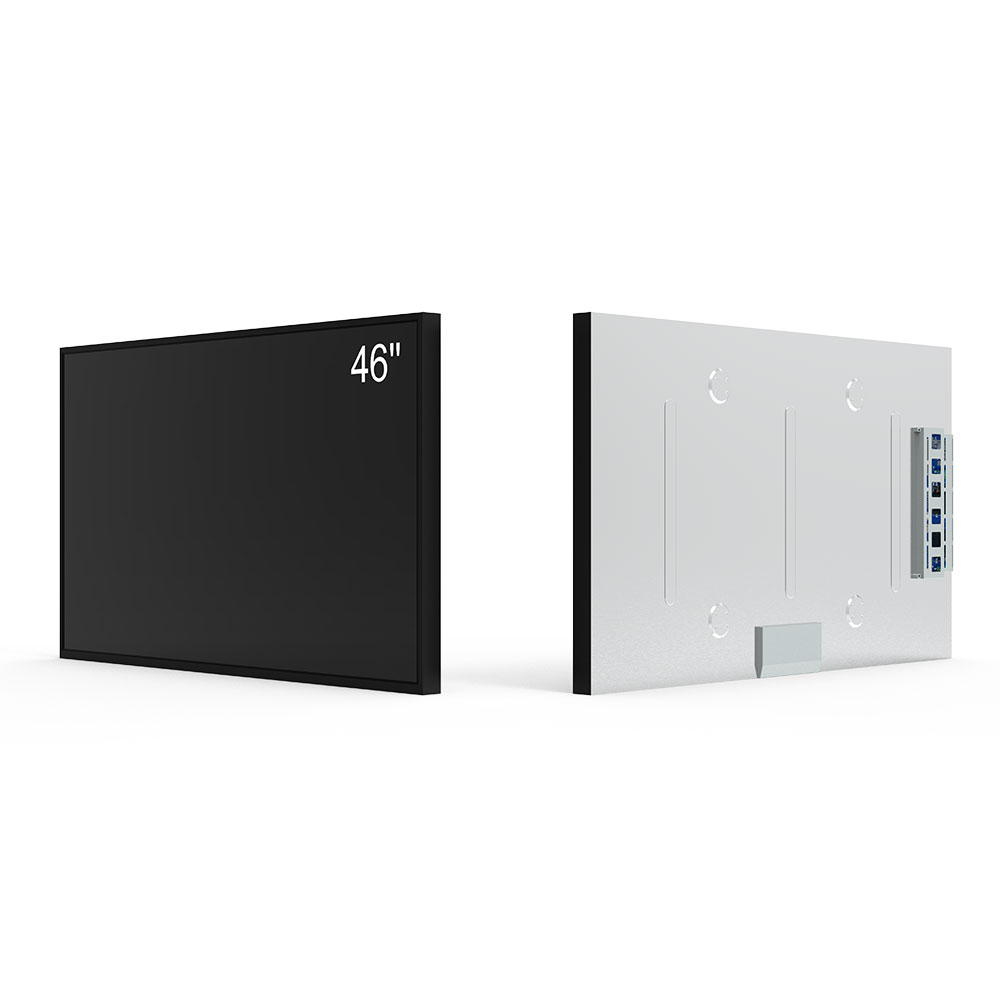

46-Inch High Brightness LCD Panel – Specification Table
| Item | Specification |
|---|---|
| Panel Size | 46 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920 (RGB) × 1080, FHD, 47 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 1018.08 (W) × 572.67 (H) mm |
| Bezel/Open Area | 1024.5 (W) × 579.1 (H) mm |
| Surface Treatment | Anti-glare, Haze 28% |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (L/R/U/D, CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Panel Type Series | IPS Hard Screen: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ., G to G) |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Backlight | WLED, 50,000 hours lifetime, built-in LED driver |
| Refresh Rate | 60 Hz |
| Motion Enhancement (Optional) | 120 Hz (MEMC), 120Hz+120Hz backlight, 240 Hz (MEMC) |
| Touch Function | None |
| Panel Weight | 11.0 kg (Typ.) |
| Application | Digital Signage, Outdoor High Brightness Display |
| Signal Interface | LVDS (2ch, 8/10-bit), 51-pin |
| Drive Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Product Description

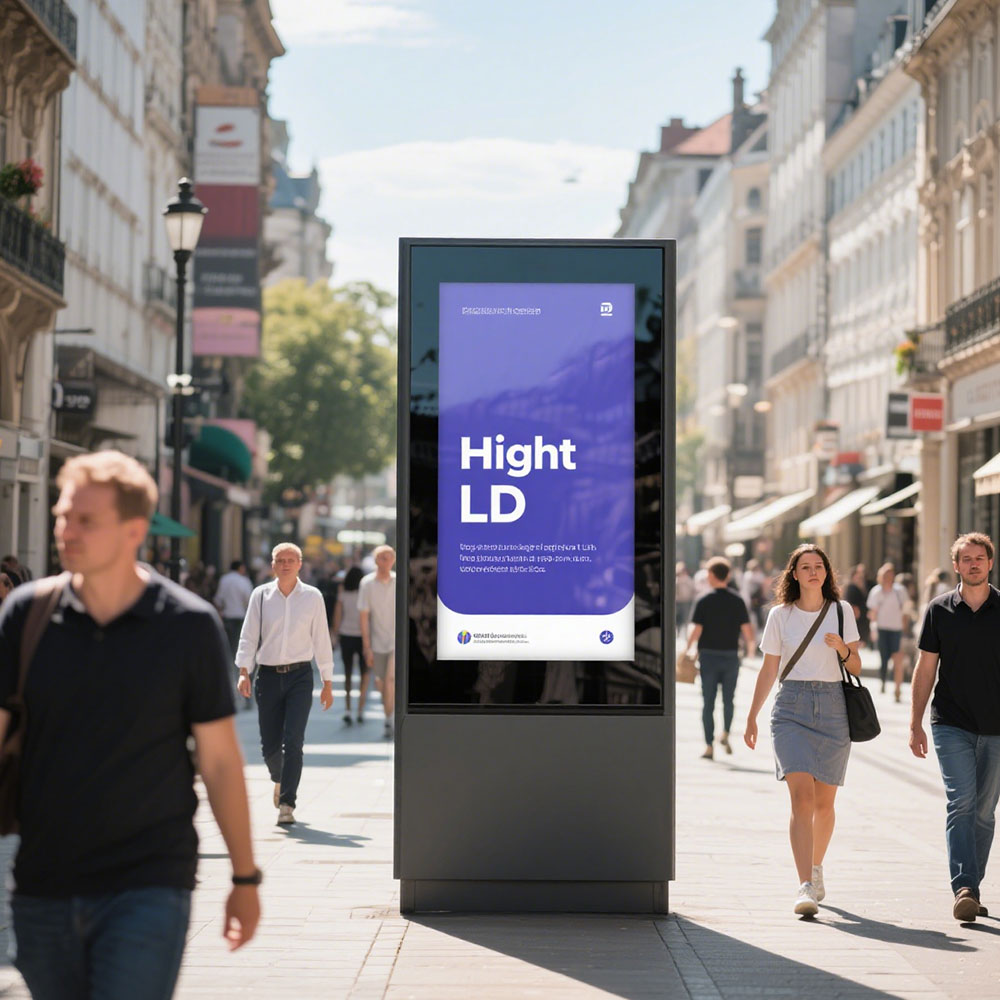

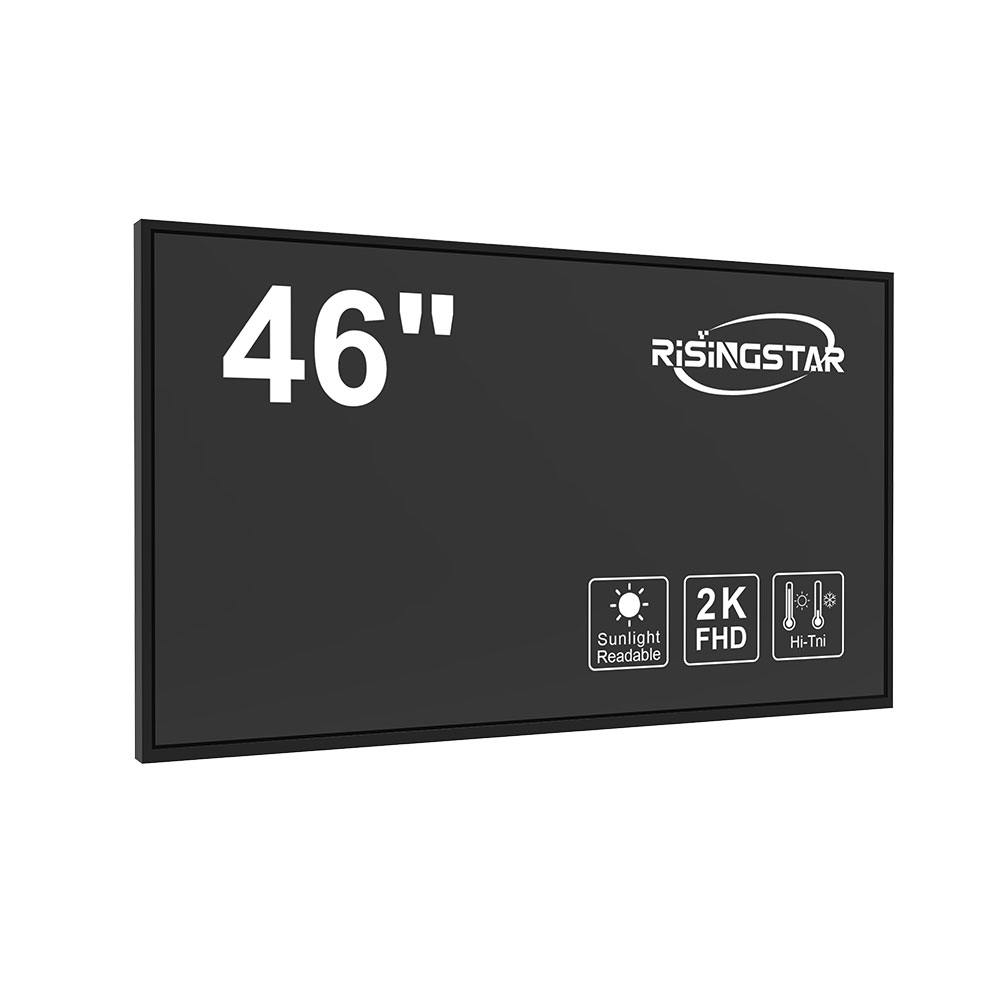

The RisingStar 46-inch high-brightness LCD panel is engineered for professional outdoor and semi-outdoor digital signage applications requiring exceptional visibility and reliability. Featuring up to 5000-nit luminance, this panel maintains clear readability even under direct sunlight, making it ideal for high-ambient-light environments such as transportation hubs, retail storefronts, outdoor kiosks, and QSR menu boards.
Its AMVA3 normally black technology delivers superior contrast (4000:1) and deep blacks, ensuring premium image quality. The wide 85/85/85/85 viewing angle provides consistent color and clarity from any direction, while the anti-glare (28% haze) surface reduces reflections outdoors.
With a robust operating range of –-20 ~ 70 °C, long-life WLED backlight (50,000 hours), and optional MEMC motion enhancement up to 240 Hz, this panel offers stability for 24/7 signage deployments. The LVDS interface and 12V driving voltage ensure simple integration with industrial media players and controller boards.
Application Scenarios
Outdoor digital signage
High-brightness retail window displays
Kiosk and wayfinding systems
Transportation displays (bus stops, metro stations, rail platforms)
QSR menu boards
Smart city public information terminals
DOOH advertising networks
46-Inch High Brightness LCD Panel – Specification Table (Excel Format)
| Item | Specification |
|---|---|
| Panel Size | 46 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920 (RGB) × 1080, FHD, 47 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 1018.08 (W) × 572.67 (H) mm |
| Bezel/Open Area | 1024.5 (W) × 579.1 (H) mm |
| Surface Treatment | Anti-glare, Haze 28% |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (L/R/U/D, CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Panel Type Series | IPS Hard Screen: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ., G to G) |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Backlight | WLED, 50,000 hours lifetime, built-in LED driver |
| Refresh Rate | 60 Hz |
| Motion Enhancement (Optional) | 120 Hz (MEMC), 120Hz+120Hz backlight, 240 Hz (MEMC) |
| Touch Function | None |
| Panel Weight | 11.0 kg (Typ.) |
| Application | Digital Signage, Outdoor High Brightness Display |
| Signal Interface | LVDS (2ch, 8/10-bit), 51-pin |
| Drive Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
