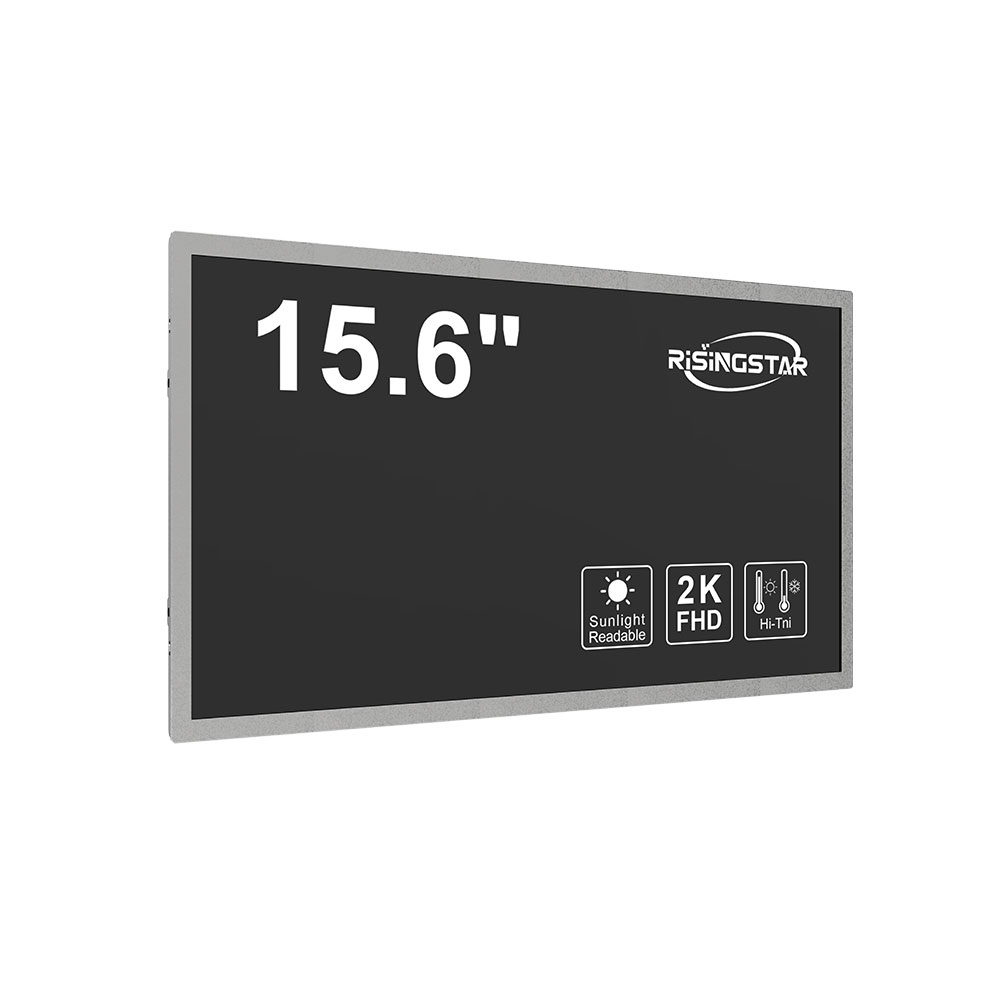

15.6 inch Gas Pump Touch Monitor
| Brand | RisingStar |
| Model name | RS156ENT-GE12 |
| Screen size | 15.6" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 500-5000nits |

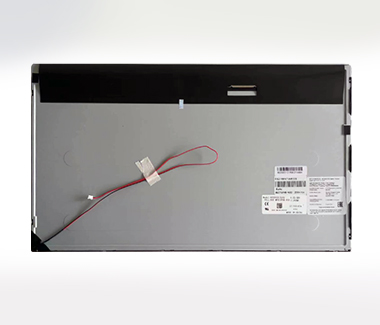

RS156ENT-GE12 is a 15.6 inch LCD panel from Risingstar from RisingStar, and usually been used as the user control interface for the machines such as gas pump and charging pile.
RisingStar monitors always have far higher brightness than most of our competitors, for the specific 15.6-inches we can reach 1500 nits even much higher, more information please searching on our website:
| Model number | Size | Resolution | Brightness |
| RS133ENT-NE05 | 13.3 | 1920*1080 | 500 |
| RS156ENT-GE05 | 15.6 | 1920*1080 | 500 |
| RS133ENT-NE07 | 13.3 | 1920*1080 | 700 |
| RS133ENT-GE12 | 15.6 | 1920*1080 | 1200 |
| RS156ENT-NE10 | 15.6 | 1920*1080 | 1000 |
| RS190ENT-NE10 | 19 | 1366*780 | 1000 |
| RS215ENT-GE10 | 21.5 | 1920*1080 | 1000 |
| RS215ENT-GE12 | 21.5 | 3840*2160 | 1200 |
| RS215ENT-GE15 | 21.5 | 1920*1080 | 1500 |
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle can reach 178° for both horizontal and vertical direction.
Multiple Application: This panel is applying in gas station with the touch function as the control panel of the gas pump and charging pile, all product passed the EMC test to make sure the safety use in these environment.
Technical Specifications
| Model | RS156ENT-GE12 |
|---|---|
| Size | 15.6 inches |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 2500 ~ 5000 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° / 178° |
| Touch Type | Projected Capacitive |
| Protection | IP65 front panel |
| Operating Temperature | -20 ~ 70 °C |
| Lifespan | > 50,000 hours |
Key Features
Sunlight readable with high-brightness backlight (up to 5000 nits)
Energy-efficient design with low heat generation
Industrial-grade durability for 24/7 operation
Waterproof, dustproof, and vibration-resistant
Thin, lightweight design for easy integration into gas pump enclosures
Applications
Ideal for:

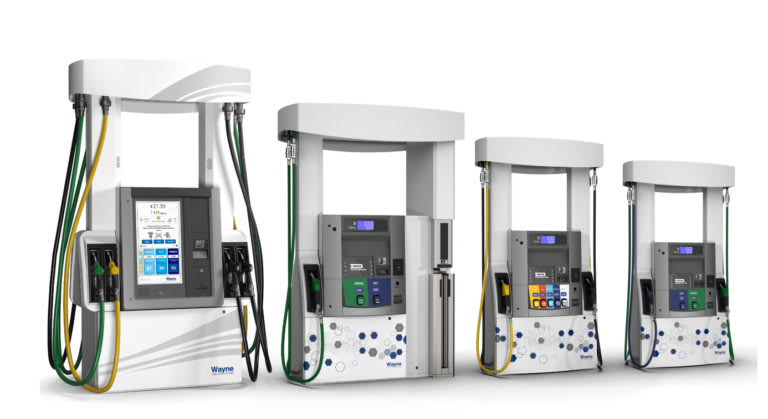

Gas pump displays at fuel stations
Outdoor payment kiosks
Self-service fueling terminals
Advertising and information screens at fueling areas
Case Study: Fuel Station Upgrade
In 2024, RisingStar partnered with a major fuel station chain in the Middle East to replace outdated screens with our 15.6″ gas pump touch displays. After installation:
Customer engagement during fueling increased by 25%
Maintenance downtime dropped by 40%
Clear readability maintained even at 45°C ambient temperature
Customer Feedback
“We replaced all our pump displays with RisingStar’s sunlight readable monitors, and the difference is night and day. No more complaints about glare or dim screens.” – Station Manager, Dubai
Certifications & Quality Assurance
CE Certified
FCC Approved
RoHS Compliant
ISO 9001 Manufacturing Standards
Key Features for Fuel Station Applications
Ultra-bright display: At least 1000 nits (upgradable for extra clarity on bright days).
Rugged construction: Slim 9.6 mm IPS panel with hard-coat glass (3H) for durability.
Wide view angles & full image: IPS panel design ensures clear visuals from all directions.
Reliable performance: Operating temperature range of -20 °C to 70°C, with storage hardy to −20 °C to 70 °C
Why Choose RisingStar for Your Gas Pump Display Needs
In-house expertise & top-tier partners: RisingStar independently designs panels and sources LG, BOE, AUO Open-cell displays—proving both capability and quality control
Precision engineering for real-world use: Inspired by industry leaders like UICO optimizing for sunlight readability, optical bonding, and anti-glare protection.
Applications & Real-World Use Cases
Ideal for use in:
Fuel dispenser interfaces, payment terminals, and interactive kiosks at gas stations.
Outdoor self-service units in varying conditions—sun, rain, dust, and glove use.
Smart fueling setups requiring clear, responsive displays for promotions and user interaction.
Common Buyer Questions
Q: How bright should a gas pump screen be for direct sunlight?
A: 1000 nits suffice for most conditions; for exceptionally bright or reflective locales, consider 1200–1500 nits options.
Q: Can it withstand temperature extremes and prevent false touches?
A: Yes—designed for −20 ~ 70°C operation and resists rain, touching errors, and glare when using enhanced touch tech like optical bonding and anti-glare treatments.
Warranty & Customer Support
We provide a comprehensive 24-month warranty, along with installation guides and technical documentation. Our dedicated support team is ready to assist with custom configurations, including glove-compatible touch tuning, optical bonding, and brightness upgrades.
Get Started Today
Ready to upgrade your fuel station with a reliable sunlight readable gas pump screen? Contact our team for personalized advice, a quote, or to download our installation manual.
| Screen Diagonal | 15.6 inch |
| Model No | RS156ENT-GE12 |
| Active Area | 344.16(W)×193.59(H) mm |
| Pixels | 1920(RGB)×1080, FHD, 141PPI |
| Physical Size | 363.8(W)×215.98(H)×9.6(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1200 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 800:1 (Typ.) |
| Optical Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Weight [g] | 0.84Kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 40 pins Connector |
| Support Color | 16.7M, 73% NTSC |
| Surface Treatment | Hard coating (3H), |
| RoHS Compliance | RoHS Compliance |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
