19 inch wide temperature touch screen LCD panel

19 inch wide temperature touch screen LCD panel

BrandLG
Model nameRS190E0M-GE12
Screen size19"
Screen typeOutdoor LCD Monitor
Resolution1280(RGB)×1024
Brightness (cd/m²)1200
Overview Specifications Customized Services Support & Shipping

19-inch wide temperature LCD panel from RisingStar, using the wide temperature open cell from BOE directly, with the RisingStar's own design backlight, makes the brightness capable of reaching 1200 nits or even higher, allowing the display to be readable under direct sunlight and to keep working in high/low temperature environments.

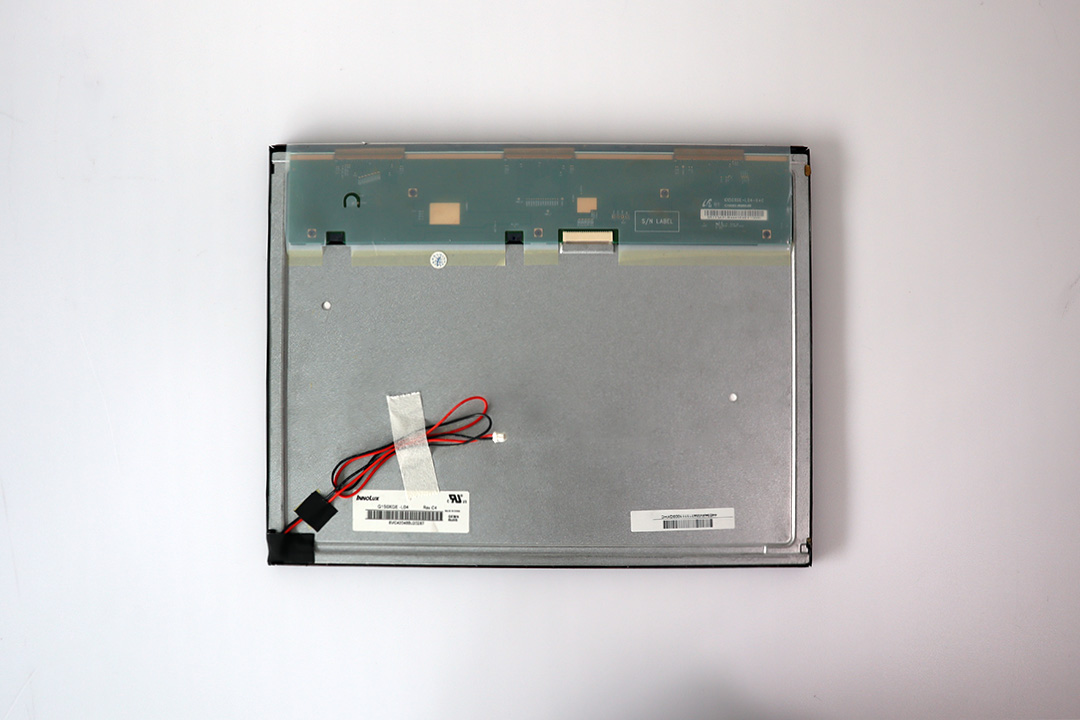

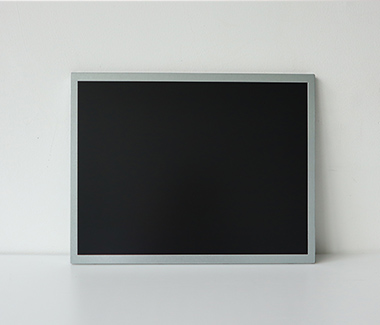

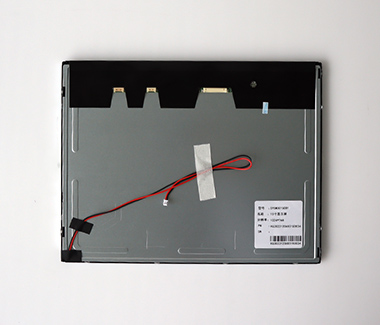

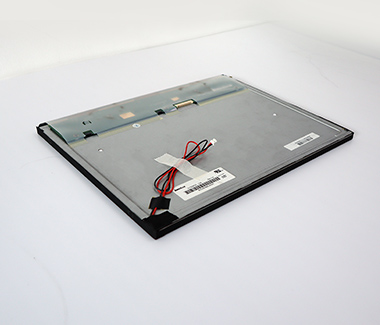

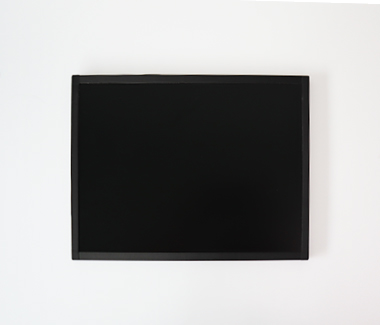

19 inch LCD panelbackside of the 19 inch LCD panel

This panel uses the open cell from BOE, with reliable quality and excellent features. The surface of the LCD panel can withstand 110°C extremely high temperatures for a while and operate under 70°C for several hours without any dark spot problems (breakage).

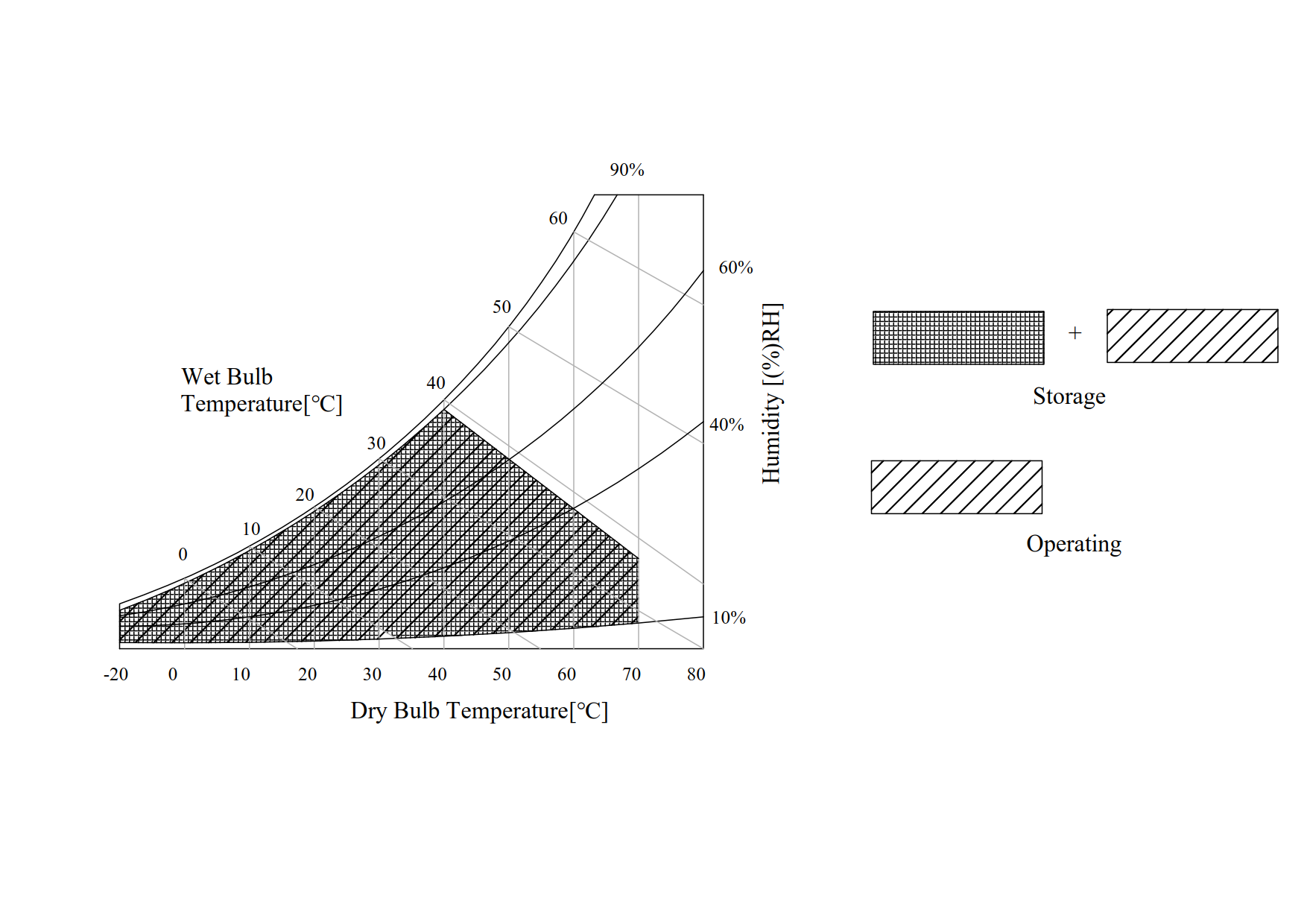

temperature curve of the LCD panel

We use the ELED (Edge-LED) backlight for this panel. Although the maximum brightness is 1500 under this structure, the thickness of the panel can be much thinner than other LCD panels.

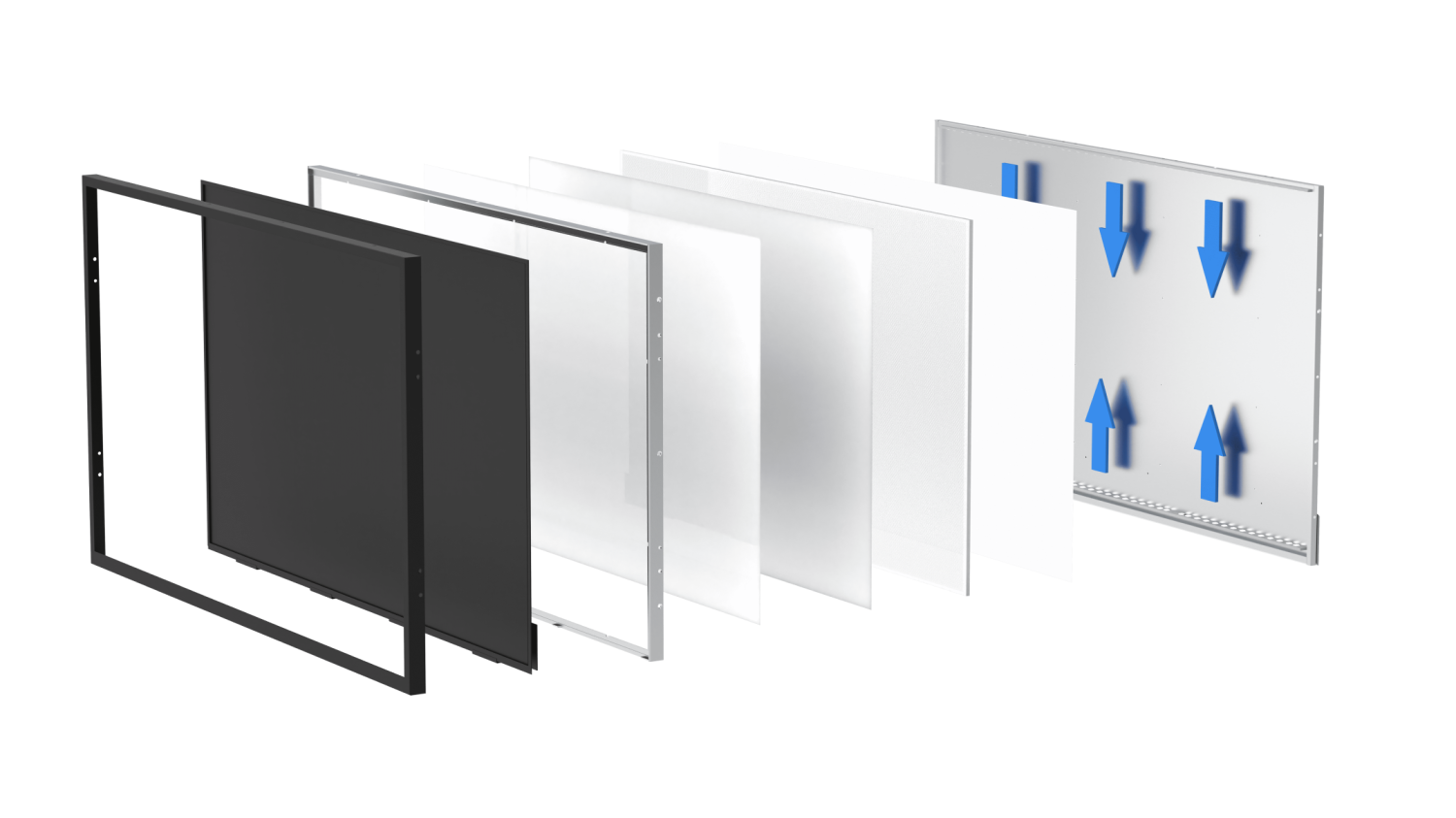

ELED LCD panel structure

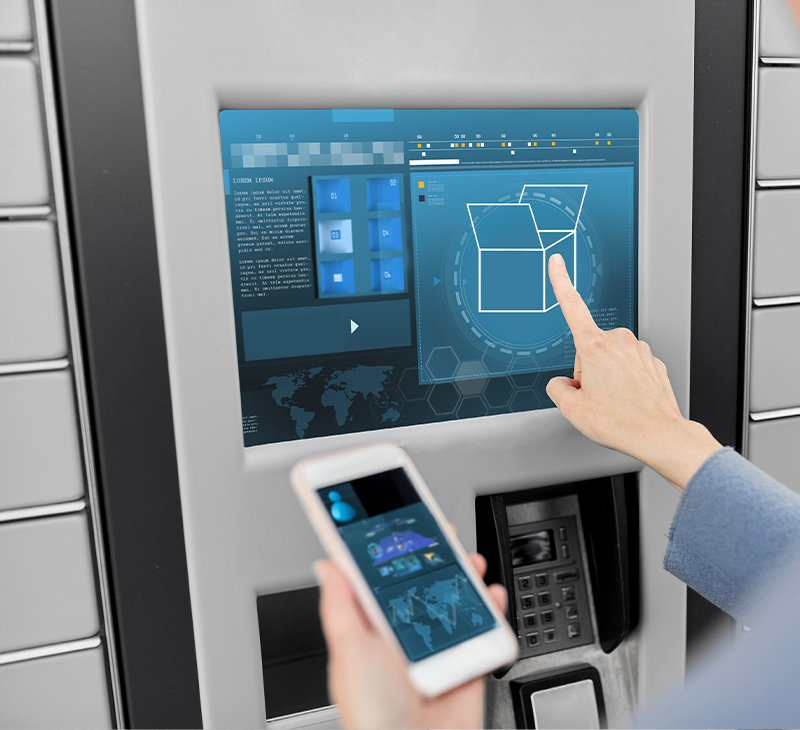

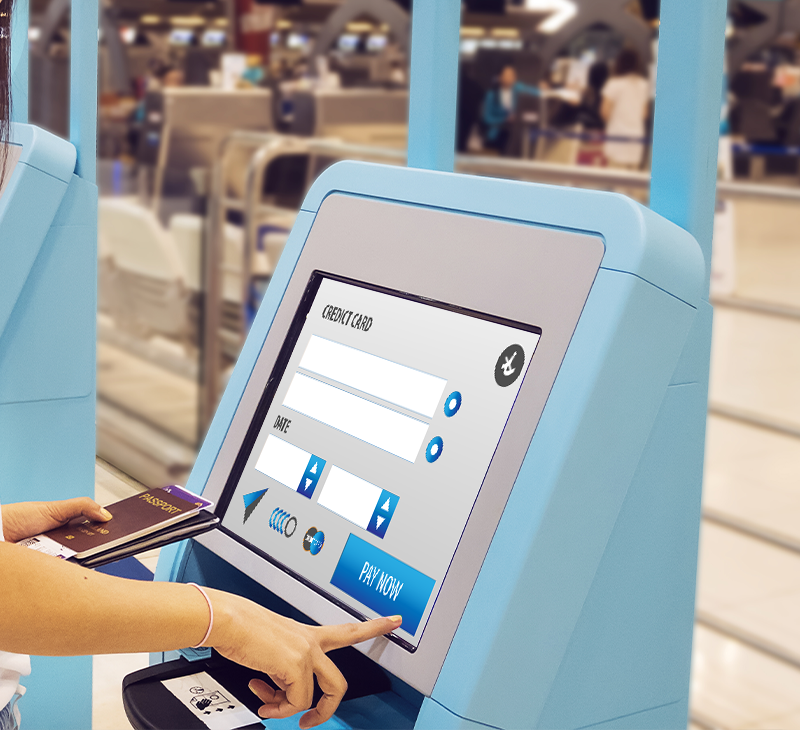

This panel is widely used as the user interface for outdoor machines such as ATMs, info kiosks, and charging piles, helping customers operate easily.

ffff-11ffff-10

RS190E0M-GE12 19 inch high brightness display 19 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Item NoRS190E0M-GE12
Panel BrandLG display
Panel ItemLB190E02-SL03
Size19 inch
Panel Typea-Si TFT-LCD,   LCM
Resolution: 1280(RGB)×1024,   SXGA, 86PPI
Pixel FormatRGB Vertical   Stripe
Display Area376.32(W)×301.056(H)   mm
Outline   Size 396 × 324 × 13.3   (H×V×D)mm
Bezel Area380.3 × 305.0 (H×V)   mm
Surface   Treatment Antiglare,Hard   coating (3H)
Brightness1200cd/m² RisingLCD   customized
Constrast   Ratio.900:1
View Angle89/89/89/89   (Typ.)(CR≥10)
Display ModelIPS, Normally Black,   Transmissive
Response Time11/7 (Typ.)(Tr/Td) ms
Display Color16.7M , 74% NTSC
BacklightLVDS (2 ch, 8-bit) ,   30 pins Connector
Touch   Screen Without
Panel   Weight 1.25/1.30Kgs
Frame Rate60Hz
Input   Voltage 5.0V(Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Current   State: In Production
