65 inch 4K high brightness digital signage with touch screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

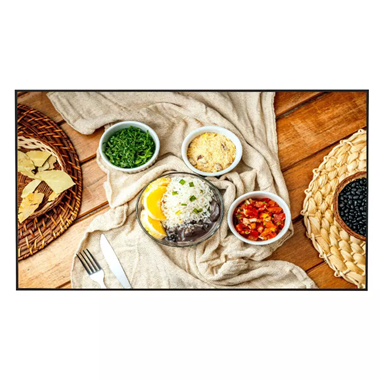

65 inch 4K high brightness digital signage with touch screen

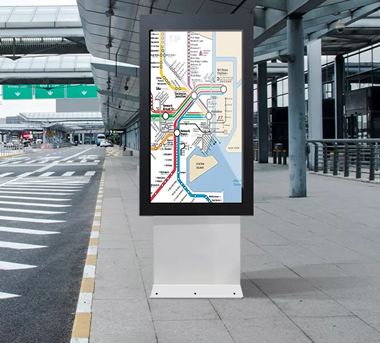

RisingLCD digital signages are designed as outdoor high brightness window digital signage solution They particularly suit installation for venues where direct sunlight / high ambient light presents an issue.

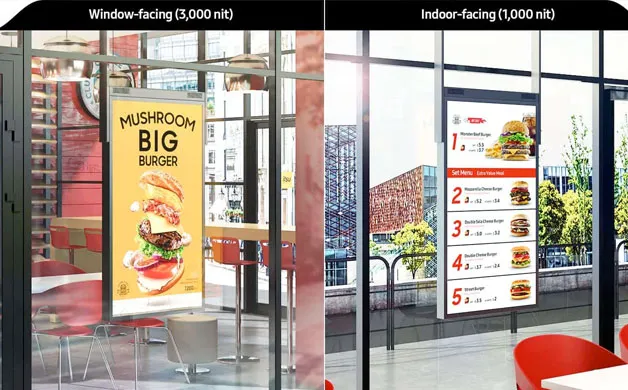

High Brightness Window Facing Display
- All steel construction designed for harsh and industrial environments
- Ultra thickness: 90mm
- Antiglare treatment
- Auto-dimming control to save power energy
- Quiet operation & super slim design
- Visible with polarized sunglasses
- Wifi & RJ45, audio jack
- 24/7/365 running supported
- Ultra-low power consumption & longer lifespan
--Capacitive touch (optional)
RisingLCD 65 inch 4k high brightness digital signage is with 3000 nits brightness, 1300:1 contrast ratio, 16:9 aspect ratio, built in auto light sensor, are ideal for installation in place such as Real Estate offices, Quick Service Restaurants (QSR) and Retail shopfronts. Through smart design and the standard included features, you have a reliable and purpose built sunlight readable LCD solution.
The standard range of sizes of our high brightness digital signages are 32″, 43″ , 49″, 55″, 65″ and 75″. There is also a customised model available in 86″.
All models feature wide 178° viewing angles. This makes them suitable for both portrait and landscape orientation.
Capacitive touch function is optional, we can customize it for your as your like.
| Panel | Panel Size | 32 inch | 43 inch | 49 inch | 55 inch | 65 inch |
| Panel Brand | LG/AUO/BOE | |||||
| Display Area(mm) | 698.4*392.8 | 941*529.4 | 1074*604 | 1209*680 | 1428*803 | |
| Brightness (nits) | 1000 to 3000 | |||||
| Resolution | 1920*1080 | 1920*1080 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | |
| Aspect Ratio | 16:9 | |||||
| Contrast Ratio | 1300/1 | |||||
| Response Time | 6/9 (Typ.)(Tr/Td) ms | |||||
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |||||
| Backlight | （DLED) | |||||
| Life Hour | 50000H | |||||
| Control System | Smart Dimming | Support | ||||
| Intelligent Temperature Control | Support | |||||
| Remote Control Function | Support | |||||
| AV Input | Video | HDMI, VGA | ||||
| Electrical Parameters | Input Voltage | AC110V/220V, 50/60HZ | ||||
| Maximum Power | 80W | 160W | 180W | 240W | 300W | |
| Display | Shell Material | Sheet Metal | ||||
| Product Size(mm) | 798*491*108 | 1044*632*123.6 | 1170*700*120 | 1309*780*118.6 | 1524*899*120 | |
| Weight | 30kg | 50kg | 64kg | 67kg | 80kg | |
| Shell Anti-Corrosion Process | Use galvanized sheet + surface spray with special outdoor powder (outdoor anti-corrosion for more than 7 years). | |||||
| Protection Glass | Thickness | 5mm AR tempered glass | ||||
| Accessories | Included | AC Power Cable, Remote Control, Wall Mount | ||||
| Operating Environment | IP Rating | Outdoor IP65 | ||||
| Operating Temperature and Humidity | -20 ~ 70 °C | |||||
| Multimedia | IO Interface | HDMI/VGA/DVI | ||||
| Option | AD Board | Android Motherboard, Computer Motherboard | ||||
| Network Transmission | Standalone Mode、WIFI、3G、4G | |||||
| Touch | 10 points touch, 20 points touch, Capacitive touch | |||||
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
