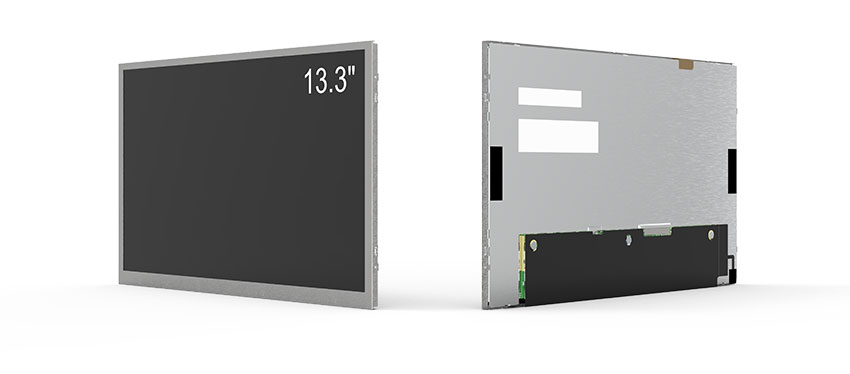

13.3" High Brightness TFT/IPS LCD Screen

13.3" High Brightness TFT/IPS LCD Screen

BrandRisingStar
Model nameRS133ENT-NE10
Screen size13.3"
Screen typehigh brightness
Resolution1920(RGB) × 1080, FHD, 166 PPI
Brightness (cd/m²)Brightness can be customized from 500 to 1500.
Overview Specifications Customized Services Support & Shipping

13.3" High Brightness LCD Display - All Models (RisingStar)


Normal Series (N Series)

Model No.Brightness (nits)Resolution
RS133ENT-NE055001920 × 1080
RS133ENT-NE1010001920 × 1080
RS133ENT-NE1515001920 × 1080

13

SpecificationDetails
Panel Size13.3"
Panel Typea-Si TFT-LCD, LCD Module
Resolution1920(RGB) × 1080, FHD, 166 PPI
Pixel ArrangementRGB Vertical Stripe
Active Area (AA)293.76 mm × 165.24 mm
Viewing Area–
Brightness500~1500 nits (Typ.)
Viewing DirectionFull Angle
Viewing Angle (CR≥10)Left/Right/Up/Down: 85°/85°/85°/85° (Typ.)
Colors Supported262K, 100% sRGB
Physical FormSlim panel (PCBA bending, thickness ≤ 3.0 mm)
Frame Rate60 Hz
120 Hz (60 Hz input): built-in MEMC
120 Hz + 120 Hz: 120 Hz panel + 120 Hz backlight
240 Hz (60 Hz input): built-in MEMC
Surface TreatmentAnti-glare, Hard coating (3H)
Contrast Ratio800:1 (Typ., Transmissive)
Response Time (Tr/Td)14/11 ms (Typ.)
Operation ModeAAS, Normally Black, Transmissive
IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Backlight TypeWLED, 15,000 hrs, with LED driver
Interface Type30 pins eDP (2 Lanes), eDP1.3, Terminal
Supply Voltage3.3 V (Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS133ENT-NE10 13.3 inch high brightness display 13.3 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
SpecificationDetails
Panel Size13.3"
Panel Typea-Si TFT-LCD, LCD Module
Resolution1920(RGB) × 1080, FHD, 166 PPI
Pixel ArrangementRGB Vertical Stripe
Active Area (AA)293.76 mm × 165.24 mm
Viewing Area–
Brightness500~1500 nits (Typ.)
Viewing DirectionFull Angle
Viewing Angle (CR≥10)Left/Right/Up/Down: 85°/85°/85°/85° (Typ.)
Colors Supported262K, 100% sRGB
Physical FormSlim panel (PCBA bending, thickness ≤ 3.0 mm)
Frame Rate60 Hz
120 Hz (60 Hz input): built-in MEMC
120 Hz + 120 Hz: 120 Hz panel + 120 Hz backlight
240 Hz (60 Hz input): built-in MEMC
Surface TreatmentAnti-glare, Hard coating (3H)
Contrast Ratio800:1 (Typ., Transmissive)
Response Time (Tr/Td)14/11 ms (Typ.)
Operation ModeAAS, Normally Black, Transmissive
IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Backlight TypeWLED, 15,000 hrs, with LED driver
Interface Type30 pins eDP (2 Lanes), eDP1.3, Terminal
Supply Voltage3.3 V (Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
