| Item | Specification |
|---|---|
| Panel Size | 17.0 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA, 96 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 337.92 (W) × 270.336 (H) mm |
| Viewing Area | 341.9 (W) × 274.4 (H) mm |
| Surface Treatment | Matte (Haze 25%), Hard Coating (3H) |
| Brightness | 500 ~ 3000 nits |
| Contrast Ratio | 1000:1 (Typ., TM) |
| Viewing Angle (CR≥10) | 85/85/80/80 (L/R/U/D) |
| Viewing Direction | 6 o’clock |
| Display Mode | TN, Normally White, Transmissive |
| Response Time (Tr/Td) | 1/4 ms (Typ.) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight Type | 12S4P WLED, 50,000 hrs, Driver excluded |
| Frame Rate | 60 Hz (std) |
| Enhanced Frame Rate Options | 120 Hz (60 Hz input, internal MEMC) 120 Hz + 120 Hz (Panel 120 Hz + Backlight 120 Hz) 240 Hz (60 Hz input, internal MEMC) |
| Panel Weight | 1.40 / 1.50 kg (Typ./Max.) |
| Application | Industrial-grade display |
| Signal Interface | LVDS (2 ch, 8-bit), 30-pin terminal |
| Driving Voltage | 5.0 V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Note: Panel mode compatibility:
IPS Hard Panel Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Soft Panel Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
(Information cited from panel databases; do not copy without authorization.)

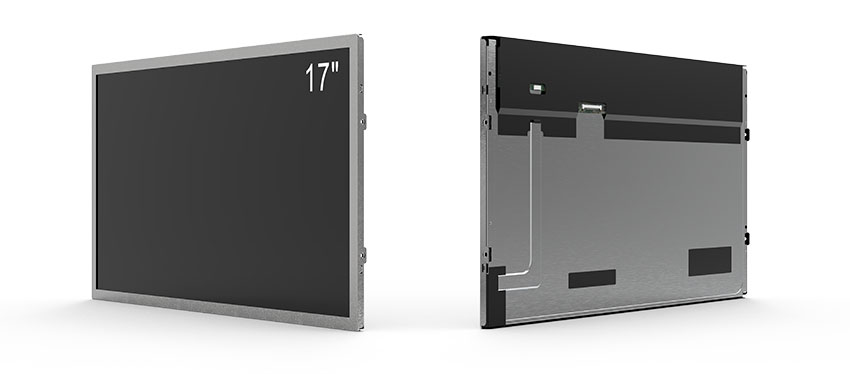

The 17.0-inch SXGA industrial TFT-LCD panel is designed for high-reliability applications requiring excellent readability, durability, and stable performance. With brightness options ranging from 500 nits up to 3000 nits, the display delivers clear visibility even in high-ambient-light environments. The TN transmissive architecture provides fast response times down to 1/4 ms, making it suitable for dynamic graphics and real-time industrial interfaces.
Equipped with 12S4P long-life WLED backlight (50,000 hours) and a wide operational temperature range, this panel ensures long-term stability under continuous use. LVDS compatibility and optional motion-enhancement technologies (MEMC 120/240Hz) support flexible system integration.
This 17-inch industrial LCD panel is suitable for:
Industrial Control Terminals
Factory Automation HMI (Human–Machine Interface)
Machine Vision Systems & Inspection Equipment
Medical and Diagnostic Equipment
Test & Measurement Instruments
Kiosk / Self-Service Terminals
ATM and Financial Display Machines
Transportation Information Displays (Rail/Bus/Metro)

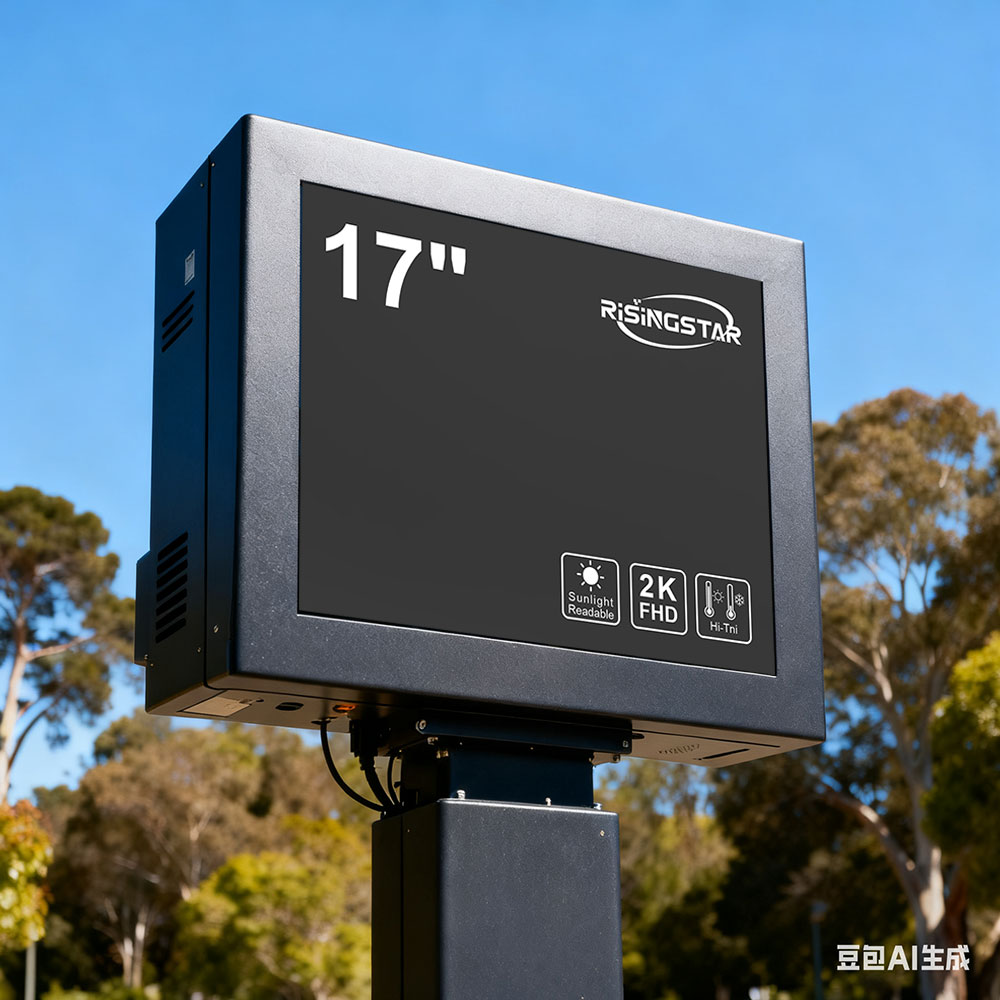

Outdoor or Semi-Outdoor Systems (with high-brightness options)
Military & Rugged Embedded Systems
| Item | Specification |
|---|---|
| Panel Size | 17.0 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA, 96 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 337.92 (W) × 270.336 (H) mm |
| Viewing Area | 341.9 (W) × 274.4 (H) mm |
| Surface Treatment | Matte (Haze 25%), Hard Coating (3H) |
| Brightness | 500 ~ 3000 nits |
| Contrast Ratio | 1000:1 (Typ., TM) |
| Viewing Angle (CR≥10) | 85/85/80/80 (L/R/U/D) |
| Viewing Direction | 6 o’clock |
| Display Mode | TN, Normally White, Transmissive |
| Response Time (Tr/Td) | 1/4 ms (Typ.) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight Type | 12S4P WLED, 50,000 hrs, Driver excluded |
| Frame Rate | 60 Hz (std) |
| Enhanced Frame Rate Options | 120 Hz (60 Hz input, internal MEMC) 120 Hz + 120 Hz (Panel 120 Hz + Backlight 120 Hz) 240 Hz (60 Hz input, internal MEMC) |
| Panel Weight | 1.40 / 1.50 kg (Typ./Max.) |
| Application | Industrial-grade display |
| Signal Interface | LVDS (2 ch, 8-bit), 30-pin terminal |
| Driving Voltage | 5.0 V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
