21.5" High Brightness TFT/IPS LCD Screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
21.5" High Brightness LCD Display - All Models (RisingStar)
Normal Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS215ENT-NE05 | 500 | 1920 × 1080 |
| RS215ENT-NE10 | 1000 | 1920 × 1080 |
| RS215ENT-NE15 | 1500 | 1920 × 1080 |
Normal Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS215ENT-ND20 | 2000 | 1920 × 1080 |
| RS215ENT-ND25 | 2500 | 1920 × 1080 |

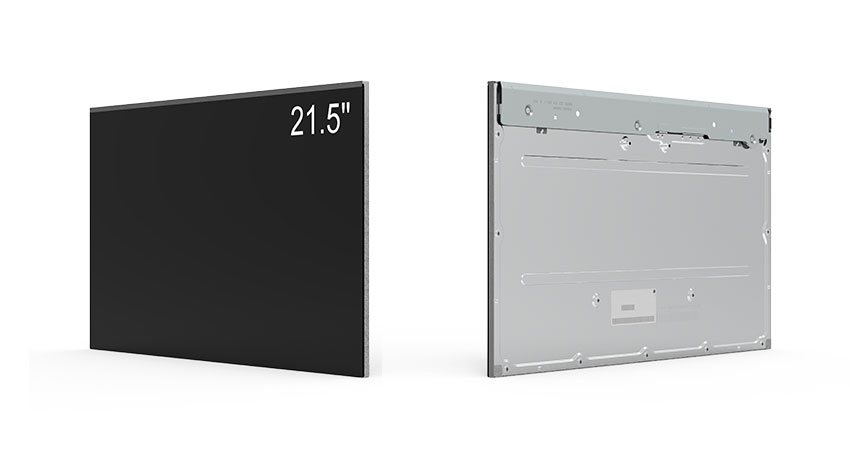

21.5" Industrial TFT-LCD Module Specification
Key Features
Full HD resolution with wide viewing angles
High brightness options: 500 nits / 1500 nits
AHVA (IPS-equivalent) optical mode, normally black
72% NTSC color performance
120Hz/240Hz optional with built-in MEMC
Long-lifetime WLED backlight (50,000 hrs)
Ideal for industrial equipment and medical imaging displays
Specifications
| Item | Description |
|---|---|
| Panel Size | 21.5 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 102 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 476.064 (W) × 267.786 (H) mm |
| Outline View Area | 479.8 (W) × 271.3 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 nits / 2500 nits |
| Contrast Ratio | 1000:1 (Typ., Transmission) |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) – L/R/U/D |
| Optical Mode | AHVA (IPS-type), Normally Black, Transmissive |
| Response Time | 12/10 ms (Tr/Td, Typ.) |
| Color Depth | 16.7M colors, 72% NTSC |
| Backlight | 12S4P WLED, 50,000 hours, driver not included |
| Weight | 1.8 kg (Typ.) |
| Refresh Rate | 60Hz |
| High-Rate Options | 120Hz (60Hz input with MEMC) / 120Hz+120Hz / 240Hz (60Hz input) |
| Signal Interface | LVDS (2-ch, 8-bit), 30-pin connector |
| Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Applications
This 21.5-inch high-performance LCD module is designed for industrial environments and precision medical imaging systems. With up to 1500-nit high brightness, wide viewing angles, and a robust AHVA (IPS-equivalent) optical mode, it delivers stable visibility for:
Industrial HMIs and control panels
Test & measurement instrumentation
Navigation systems and marine displays
Factory automation and process monitoring
High-brightness indoor signage and kiosk terminals
Its extended temperature range, long backlight life, and optional 120Hz/240Hz motion enhancement make it suitable for demanding 24/7 operation in professional environments.
Specifications
| Item | Description |
|---|---|
| Panel Size | 21.5 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 102 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 476.064 (W) × 267.786 (H) mm |
| Outline View Area | 479.8 (W) × 271.3 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 nits ~ 2500 nits |
| Contrast Ratio | 1000:1 (Typ., Transmission) |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) – L/R/U/D |
| Optical Mode | AHVA (IPS-type), Normally Black, Transmissive |
| Response Time | 12/10 ms (Tr/Td, Typ.) |
| Color Depth | 16.7M colors, 72% NTSC |
| Backlight | 12S4P WLED, 50,000 hours, driver not included |
| Weight | 1.74 kg (Typ.) |
| Refresh Rate | 60Hz |
| High-Rate Options | 120Hz (60Hz input with MEMC) / 120Hz+120Hz / 240Hz (60Hz input) |
| Signal Interface | LVDS (2-ch, 8-bit), 30-pin connector |
| Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
