| Item | Specification |
|---|---|
| Panel Size | 23.8 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 92 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 527.04 (W) × 296.46 (H) mm |
| Viewing Area | 530.2 (W) × 299.6 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 3000 nits |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) Left/Right/Up/Down |
| Display Mode | IPS, Normally Black, Transmissive |
| IPS Hard-Screen Technologies | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode 2, PLS, SFT, Vistarich |
| VA Soft-Screen Technologies | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Orientation | All-view Direction |
| Response Time | 14 ms (Typ., G-to-G) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight | 18S2P WLED, 30,000 hrs, driver not included |
| Refresh Rate | 75 Hz<br/>120 Hz (60 Hz input) – with MEMC<br/>120 Hz + 120 Hz – 120 Hz panel + 120 Hz backlight<br/>240 Hz (60 Hz input) |
| Panel Weight | 2.00 / 2.10 kg (Typ./Max.) |
| Signal Interface | LVDS (2 ch, 8-bit), 30-pin terminal |
| Power Supply | 5.0 V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |

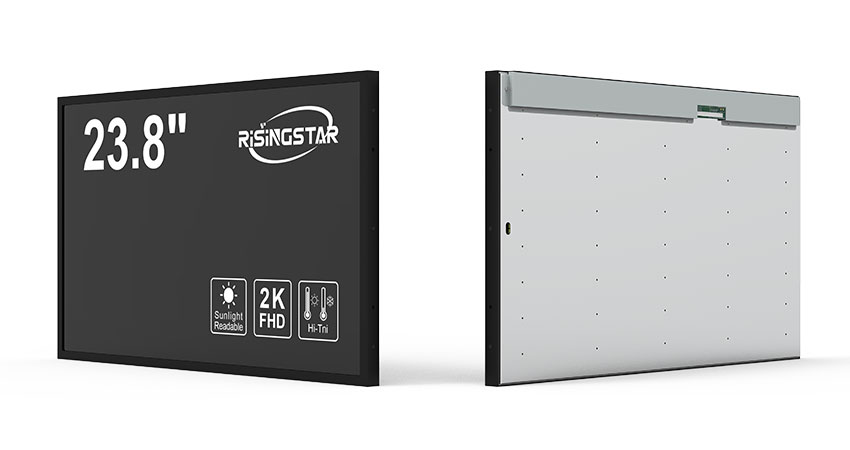

This 23.8-inch high-performance IPS TFT-LCD panel is ideal for:
Computer Monitors
Industrial Displays
Digital Signage
Medical and Healthcare Equipment
Commercial Terminals
Kiosk and HMI Interfaces
| Item | Specification |
|---|---|
| Panel Size | 23.8 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 92 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 527.04 (W) × 296.46 (H) mm |
| Viewing Area | 530.2 (W) × 299.6 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 3000 nits |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) Left/Right/Up/Down |
| Display Mode | IPS, Normally Black, Transmissive |
| IPS Hard-Screen Technologies | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode 2, PLS, SFT, Vistarich |
| VA Soft-Screen Technologies | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Orientation | All-view Direction |
| Response Time | 14 ms (Typ., G-to-G) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight | 18S2P WLED, 30,000 hrs, driver not included |
| Refresh Rate | 75 Hz<br/>120 Hz (60 Hz input) – with MEMC<br/>120 Hz + 120 Hz – 120 Hz panel + 120 Hz backlight<br/>240 Hz (60 Hz input) |
| Panel Weight | 2.00 / 2.10 kg (Typ./Max.) |
| Signal Interface | LVDS (2 ch, 8-bit), 30-pin terminal |
| Power Supply | 5.0 V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
