86-inch ultra brightness window facing digital LCD display
| Panel Brand | AUO |
| Model name | P860QVN01.0 CELL |
| Screen size | 86" |
| Screen type | LCD Monitor |
| Resolution | 3840(RGB)*2160 (UHD) |
| Brightness (cd/m²) | 3500 |
RS860ENT-ND35 is a 86 inch ultra bright window facing digital lcd display that is equiped with AUO screen model P860QVN01.0 CELL that characterizes with a great resolution 3480(RGB)*2160 (UHD), and a high brightness of 3500 cd/m² and work life can achieve above 50,000 hours after RisingLCD customized

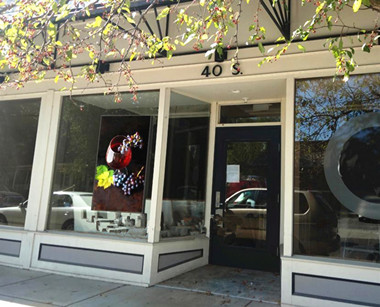

With a great brightnesss of 3500 cd/m², RisingLCD ultra high brigntness window facing series can clearly deliverys the information and attracts public or the visitor attention to the store.
This display use the industrial AUO panel and add more LED units, commerical window facing digital lcd display operate more brighter at a lower temperature, and so lasting longer around 50000hours than the conventional products.
This big size 86 inch digital LCD is usually to for the advertising industry, bus station,
shopping maill, museum for show more information and easily read.
OEM and ODM are welcomed!
RisingLCD China factory Advantage:
OEM/ODM is acceptable!
Small MOQ is acceptable!
Competitive price!
Fast Delivery time!
RisingLCD is your best choice!
| 86 inch ultra bright Window Facing digital Display, 3500nits | |
| Model No | RS860ENT-ND35 |
| Panel Brand | AUO |
| Panel Item | P860QVN01.0 CELL |
| Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 3840(RGB)*2160 (UHD) 51PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1895.04*1065.96(H*V)mm |
| Outline Size | 1913.04*1083.96*1.4(H*V*D)mm |
| Bezel Area | // |
| Surface Treatment | Antiglare, Hard Coating (3H) |
| Brightness | 3500cd/m² |
| Constrast Ratio. | 4000:1(TYP.)(TM.) |
| View Angle | 89/89/89/89 |
| Display Model | AMVA3, Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 8/10(Typ.)(TR/TD) |
| Display Color | 1.06B 68% NTSC |
| Backlight | WLED, 50K hours, With LED Driver |
| Touch Screen | Without |
| Panel Weight | 380Kgs |
| Frame Rate | 60Hz |
| Signal Interface | V-by-one 8 lane, 51 pins connector |
| Input Voltage | 12v(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
