| Parameter | Specification |
|---|---|
| Panel Size | 49" |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 1920(RGB) × 1080, FHD, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (mm) | 1073.78 × 604 |
| Viewable Area (mm) | 1078.6 × 609.5 |
| Surface Treatment | Anti-Glare, Haze 1% |
| Brightness (cd/m²) | 500 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Recommended Viewing Angle | Full viewing angle |
| Response Time (Tr+Td) | 8 ms (Typ.) |
| Viewing Angles (CR ≥ 10) | Left 89° / Right 89° / Up 89° / Down 89° |
| Display Mode | ADS, Normally Black, Transmissive |
| Supported Colors | 16.7M, 68% NTSC |
| Backlight Type | WLED, Lifetime 15,000 hours, with LED driver |
| Weight | 9.8 kg (Max.) |
| Frame Rate | 60Hz (Standard) 120Hz (60Hz input, with MEMC) 120Hz + 120Hz (120Hz panel + 120Hz backlight) 240Hz (60Hz input) |
| Interface Type | 51 pins LVDS (2 ch, 8-bit) |
| Power Supply | 12.0V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Note on Panel Technology:
IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

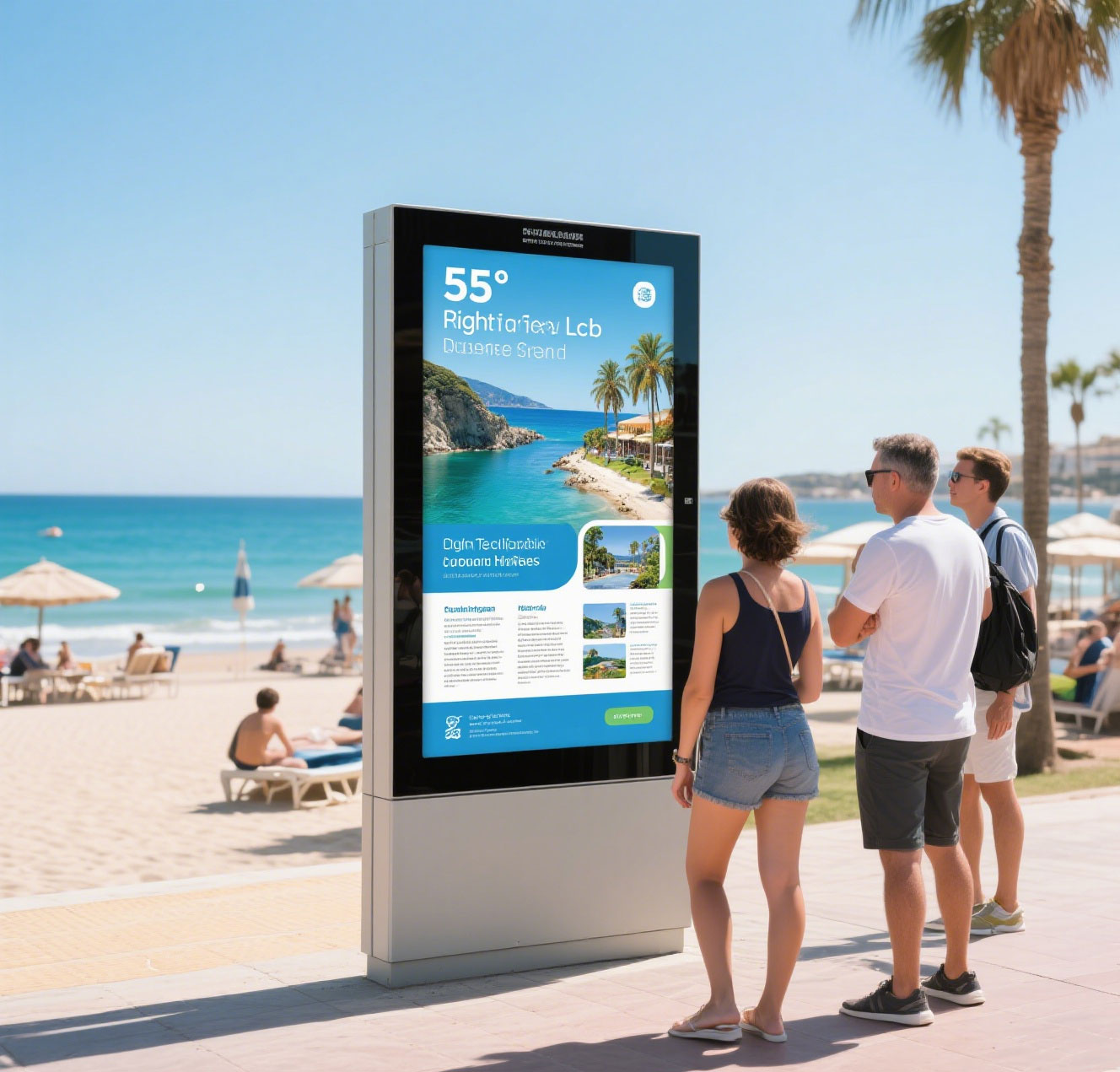

This 49-inch a-Si TFT-LCD display features FHD resolution with ultra-wide viewing angles, making it ideal for digital signage, interactive kiosks, and advertising displays in both indoor and semi-outdoor environments. Its high brightness (up to 5000 nits) and anti-glare surface ensure clear readability even under strong ambient light. The display supports a variety of refresh rates including 60Hz, 120Hz, and MEMC-enhanced modes, suitable for dynamic content playback.
Its lightweight aluminum structure (9.8 kg) and robust WLED backlight (15,000 hours lifetime) make it suitable for long-term installations in public spaces, such as shopping malls, airports, train stations, and transportation hubs. With full LVDS interface support and industrial-grade operating temperatures (0~50°C), it is designed for professional digital signage applications requiring high reliability and visual performance.
| Parameter | Specification |
|---|---|
| Panel Size | 49" |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 1920(RGB) × 1080, FHD, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (mm) | 1073.78 × 604 |
| Viewable Area (mm) | 1078.6 × 609.5 |
| Surface Treatment | Anti-Glare, Haze 1% |
| Brightness (cd/m²) | 500 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Recommended Viewing Angle | Full viewing angle |
| Response Time (Tr+Td) | 8 ms (Typ.) |
| Viewing Angles (CR ≥ 10) | Left 89° / Right 89° / Up 89° / Down 89° |
| Display Mode | ADS, Normally Black, Transmissive |
| Supported Colors | 16.7M, 68% NTSC |
| Backlight Type | WLED, Lifetime 15,000 hours, with LED driver |
| Weight | 9.8 kg (Max.) |
| Frame Rate | 60Hz (Standard) 120Hz (60Hz input, with MEMC) 120Hz + 120Hz (120Hz panel + 120Hz backlight) 240Hz (60Hz input) |
| Interface Type | 51 pins LVDS (2 ch, 8-bit) |
| Power Supply | 12.0V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
