86" Ultra High Brightness TFT/IPS LCD Screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
86" High Brightness LCD Display – All Models (RisingStar)
Normal Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS860ENT-ND20 | 2000 | 3840×2160 |
| RS860ENT-ND25 | 2500 | 3840×2160 |
| RS860ENT-ND30 | 3000 | 3840×2160 |
| RS860ENT-ND35 | 3500 | 3840×2160 |
| RS860ENT-ND40 | 4000 | 3840×2160 |
| RS860ENT-ND45 | 4500 | 3840×2160 |
| RS860ENT-ND50 | 5000 | 3840×2160 |

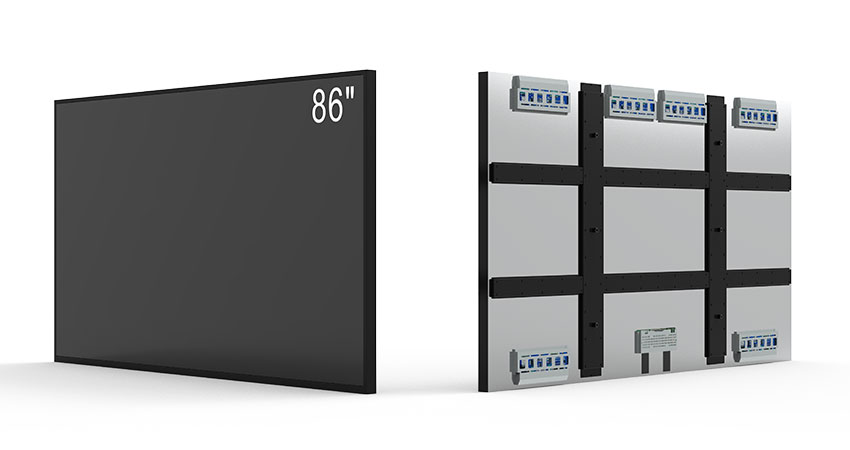

86-inch a-Si TFT-LCD Panel Specifications
| Parameter | Specification |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD module |
| Resolution | 3840 (RGB) × 2160, UHD, 51 PPI |
| Pixel Arrangement | RGB vertical stripe |
| Display Area | 1895.04 (W) × 1065.96 (H) mm |
| Viewable Area | 1897.0 (W) × 1068.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard coating (2H) |
| Brightness | 2000 ~ 5000 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) [Transmissive] |
| Optimal Viewing Angle | Full viewing angle |
| Optical Mode | IPS, normally black, transmissive |
| Viewing Angles (CR≥10) | L/R/U/D: 89° / 89° / 89° / 89° |
| Response Time | 8 ms (Typ., G to G) |
| Color Depth | 16.7M / 1.07B, 72% NTSC |
| Backlight Type | WLED, 30,000 hours lifetime, with LED driver |
| Panel Weight | 34.1 / 35.8 Kgs (Typ./Max.) |
| Refresh Rate | 60 Hz; 120 Hz (60Hz input MEMC); 240 Hz (60Hz input) |
| Signal Interface | V-by-One 8 lane, 56-pin connector |
| Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Applications | TV, interactive whiteboards |
Panel Description:
This 86-inch a-Si TFT-LCD panel uses IPS technology for wide viewing angles and accurate color reproduction.
Anti-glare surface with 2H hardness minimizes reflections and protects the display.
High brightness range (2000–5000 nits) enables clear visibility even in bright environments.
MEMC feature supports 120Hz refresh rate from 60Hz input, reducing motion blur.
Long-lasting WLED backlight with 30,000 hours lifetime is suitable for continuous operation.
Typical Applications:
Large-format TVs and home theater screens
Interactive whiteboards for education and conferences
Commercial display screens for retail stores and exhibitions

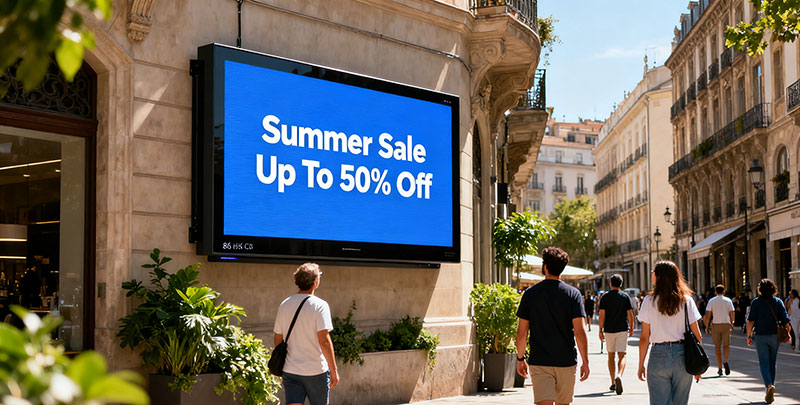

High-brightness digital signage or advertising displays
86-inch a-Si TFT-LCD Panel Specifications
| Parameter | Specification |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD module |
| Resolution | 3840 (RGB) × 2160, UHD, 51 PPI |
| Pixel Arrangement | RGB vertical stripe |
| Display Area | 1895.04 (W) × 1065.96 (H) mm |
| Viewable Area | 1897.0 (W) × 1068.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard coating (2H) |
| Brightness | 2000 ~ 5000 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) [Transmissive] |
| Optimal Viewing Angle | Full viewing angle |
| Optical Mode | IPS, normally black, transmissive |
| Viewing Angles (CR≥10) | L/R/U/D: 89° / 89° / 89° / 89° |
| Response Time | 8 ms (Typ., G to G) |
| Color Depth | 16.7M / 1.07B, 72% NTSC |
| Backlight Type | WLED, 30,000 hours lifetime, with LED driver |
| Panel Weight | 34.1 / 35.8 Kgs (Typ./Max.) |
| Refresh Rate | 60 Hz; 120 Hz (60Hz input MEMC); 240 Hz (60Hz input) |
| Signal Interface | V-by-One 8 lane, 56-pin connector |
| Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Applications | TV, interactive whiteboards |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
