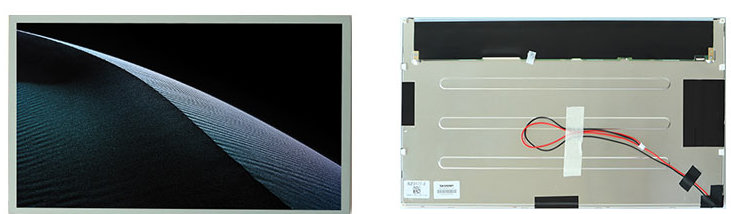

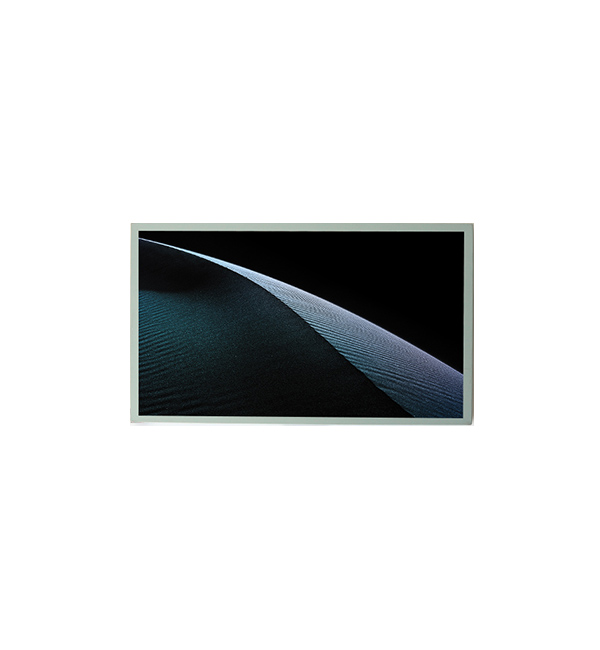

15.6" 1000 nits Sunlight Readable LCD RS156M1L-NE10
| Model name | RS156M1L-NE10 |
| Screen size | 15.6" |
| Screen type | a-Si TFT-LCD |
| Resolution | 1920×1080 |
| Brightness (cd/m²) | 1000 (Typ.) |
| Operating Temperature | 0 ~ 70 °C |
Exceptional Visual Clarity
Engineered for uncompromising performance, this display features 16.7M (8-bit) color depth and a 72% NTSC color gamut, delivering vibrant, true-to-life imagery with smooth transitions. Its sunlight-readable design ensures that content remains sharp and legible even in high-ambient light environments, making it an ideal solution for outdoor applications where clarity is paramount.
Efficient and Eco-Friendly Engineering
Beyond its visual prowess, this display prioritizes sustainability and portability. The thin and lightweight profile allows for seamless integration into modern, compact devices, while the low driving voltage significantly reduces power consumption to enhance overall energy efficiency. As a certified Green Product (RoHS and Halogen-free), it combines high-end technology with a commitment to environmental responsibility.

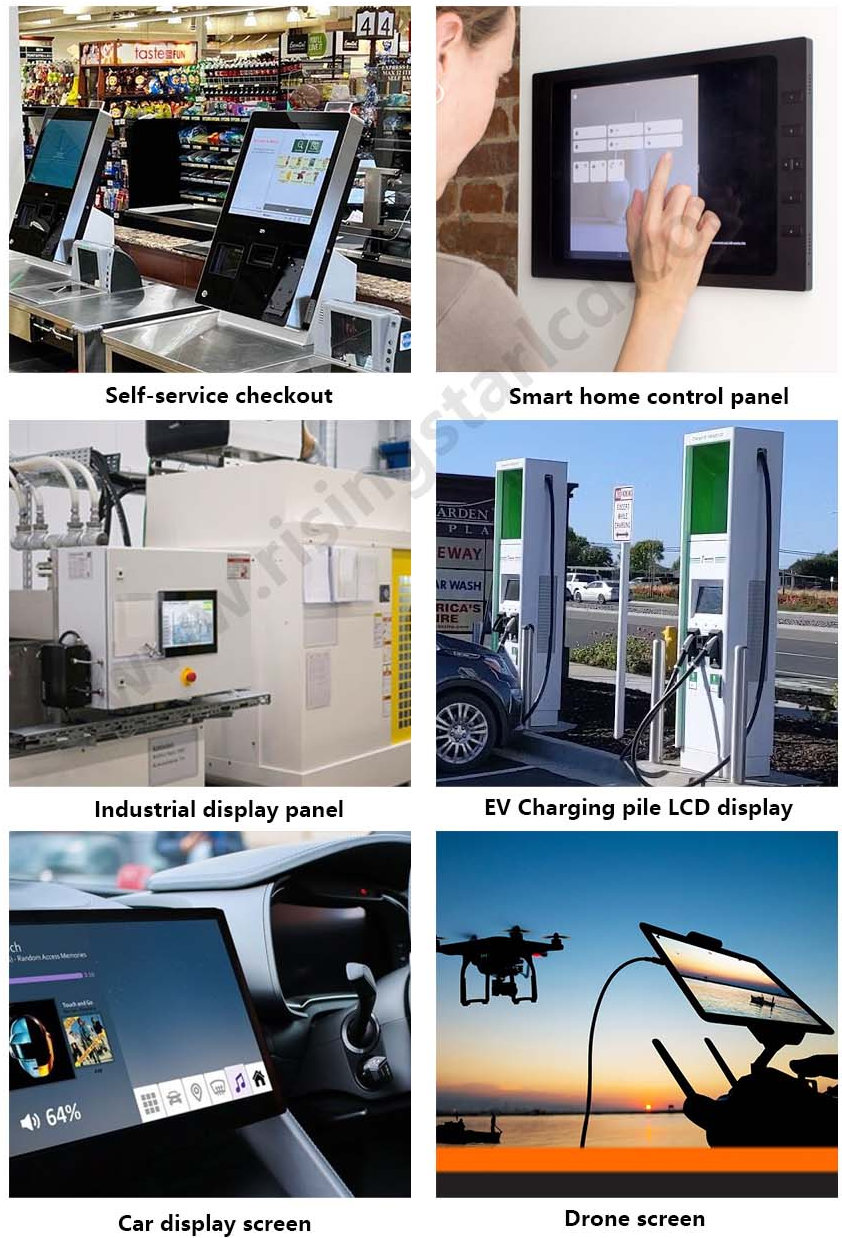

Product application field
LCD display is usually used in commercial billboards,display screens,information display screens, etc., suitable for shopping malls, supermarkets,restaurants, airports, stations and other public places.
Handing & Caution
(1)Pick the pouch only, when taking out module from a shipping package.
(2)Static electricity may damage the LCD module. Slowly peel off the protective sheet from the LCD panel
(3)Do not pull the interface connector in or out while the LCD module is operating.
(4)When the module is operating, do not lose CLK, ENAB signals. If any one of these signals is lost, the LCD panel would be damaged.
(5)Obey the supply voltage sequence. If wrong sequence is applied, the module would be damaged
(6)Do not press or rub on the sensitive product surface. When cleaning the product surface, wipe it a soft dry cloth.(7)Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive gases. Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and sunlight, when storing the product.

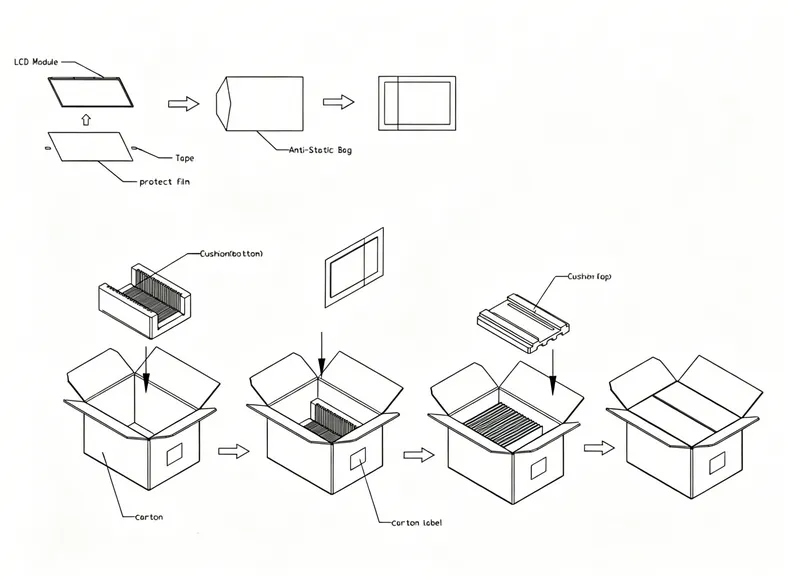

Product packing
