    21.5 inch 2500nits LCD panel
    • 21.5 inch 2500nits LCD panel
    • 21.5 inch 2500nits LCD panel
    • 21.5 inch 2500nits LCD panel

    21.5 inch 2500nits LCD panel

    RisingLCD outdoor high brightness LCD panel adopts independent development on the structure, modeules and parts, long term supply, and can match LCD glass from different suppliers, such as BOE, AUO, LG, Samsunt,etc.

    Brand:

    Risinglcd

    Model name:

    RS215ENT-N25

    Screen size:

    21.5"

    Screen type:

    LCD Monitor

    Resolution:

    1920*1080(RGB)

    Brightness (cd/m²):

    2500

    RisingLCD outdoor high brightness LCD panel adopts independent development on the structure, modeules and parts, long term supply, and can match LCD glass from different suppliers, such as BOE, AUO, LG, Samsunt,etc.

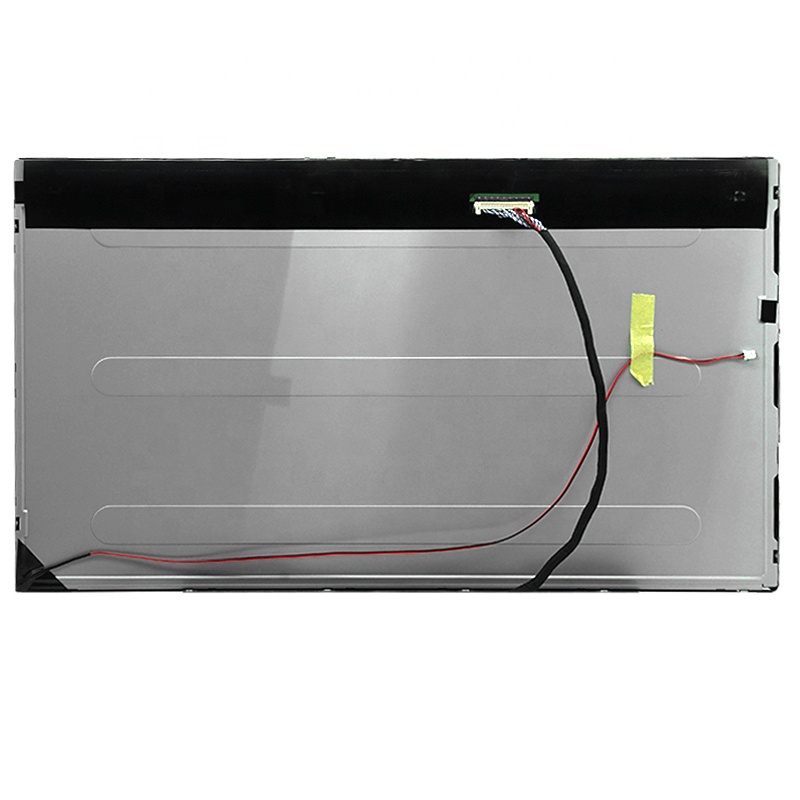

    RisingLCD21.5 inch 2500nits LCD panel RS215ENT-N25 is a 21.5inch 2500nits LCD panel that is equipped with BOE original screen, support a 1920*1080 screen formati with LVDS interface, Wide viewing angles--L/R : 89˚/89˚, U/D : 89˚/89˚ (Typ.), Treated with anti-glare surface treatment to improve outdoor capabilities and sunlight readability.



    21.5 inch 2500nits LCD panel  Main feature

    1.With directly down backlight to make LCD screen brightness up to 2500nits.

    2.Reserved automatic dimming system interface, automatically adjust LCD screen brightness according to outdoor brightness

    3 Adopt imported LED lamp which is low power, high luminous efficiency, and low power consumption.

    4.Blackening Defect free

    5.AR Glass, reduce reflectioin effect.



    Directly down backlight to make LCD screen brightness up to 2500nits.

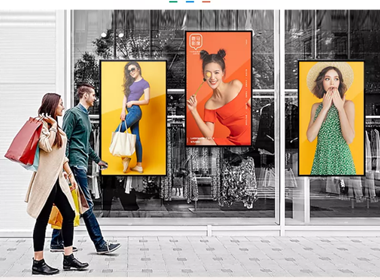

    With RisingLCD customized back light, this 21.5 ich LCD panel can achieve 2500nits high brightness, this high brightness make this panel can be sunlight readable under directly sunlight, it is perfect fit for shoppers, store, employees or visitors that will view Window Facing displays from diverse angles while passing by.

    Directly down light, make this panel will be more uniform brightness, and all the LED lamps are from Korean, higher luminous efficiency and better stability, and we use the aluminum plate, it will be better cool, and aluminum plate can bear 4500W,and make our panel can be used for a long time.

    QQ图片20220526153037_副本

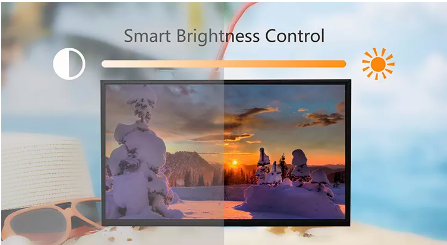

    Auto brightness control

    Different external lighting condition requires different brightness levels, an onboard light sensor that built in our 21.5 inch LCD panel measures the ambient light in the area and automatically adjust the image light accordingly, offer a best experience to the viewer, and also can save the engery cost, reduce the heat and extends the life of the screen

    'RS215ENT-N15 21


    RisngLCD RS215ENT-N25 utilizes advanced anti-reflection technology.

    This innovative solution ensures much better visibility when watching in broad daylight, with a significantly low total reflection rate, ensuring clearer images and text for every viewer.

    55_副本



    RisingLCD is a high-tech enterprise specilized in the research and development of outdoor high brightness LCD modules, with many years experience in the design and manufacturing and sales, we can offer you 10.1inch to 100inch LCD panel with brightness of 500nits to 5000nits according to the customers requests.  OEM/ODM are all welcomed!

    Hot Tags: 21.5 inch 2500nits LCD panel , manufacturers, suppliers, factory, Customized
    Item No:RS215ENT-N25
    Size21.5 inch
    Panel Typea-Si TFT-LCD,   LCM
    Resolution: 1920*1080   FHD, 102PPI
    Pixel FormatRGB Vertical   Stripe

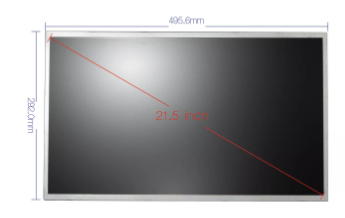

    Display Area476.64(W)×268.11(H)   mm
    Outline   Size 495.6(W)×292.2(H)   ×11.3(D) mm
    Bezel Area479.8(W)×271.3(H) mm
    Surface   Treatment Antiglare, hard   coating (3H)
    Brightness2500cd/m² RisingLCD   customized
    Constrast   Ratio.1000:1
    View Angle89/89/89/89   (Typ.)(CR≥10)
    Display ModelADS, Normally Black,   Transmissive
    Response Time14 (Typ.)(Tr+Td)
    Display Color16.7M   72% NTSC
    BacklightLVDS (2 ch, 8-bit) ,   30 pins Connector
    Touch   Screen Without
    Panel   Weight 1.79 kgs (typ.)
    Frame Rate60Hz
    Input   Voltage 5.0V(Typ.)
    Working   Temperature0-+50 ゚C
    Storage   Temperature-20-+60 ゚C
    Current   State: In Production
