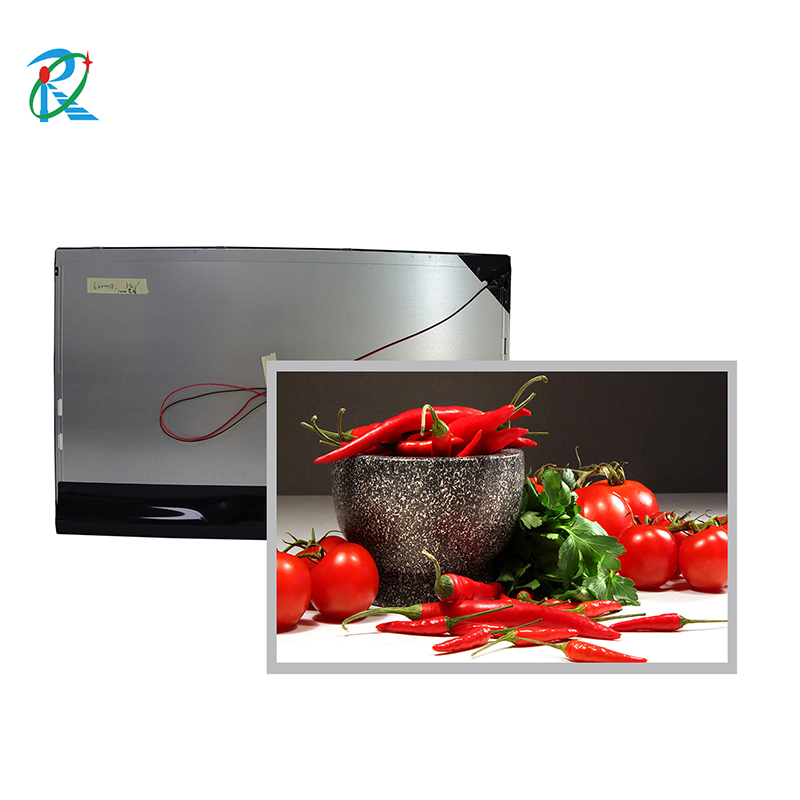

Polski21.5" high bright outside monitor screen
| Brand | Risingstar |
| Model name | RS215NET-N05 |
| Screen size | 21.5 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 500 |
Shenzhen risingstar 21.5" high bright outside monitor screen,the high brightness 1500 nits.high resolution 1920*1080, Full view angle,high constrast :3000:1.
21.5" high bright outside monitor screen profuct feature:
1. Original lcd panel.
2. High brightness 1500 nits,sunshine readable,With light sensor ,Auto adjustment brightness
3.Customized lighting strip,can working 24 hours per da
4.High brightness lcd screen can be used indoor or outdoor display machine.
5. Can be add the touch screen.
Size | 21.5inch |
Panel item | RS215NET-N05 |
Panel type | a-Si TFT-LCD |
Display mode | IPS,Normally black，transmissive display |
Pixels | 1920*1080 |
brightness | 500-1500cd/m2 |
Constrast Ratio | 3000:1 |
Response Time | 6.5ms |
View angle | 89/89/89/89 |
View area | 479.8*271.3mm(H*V) |
Dispaly area | 476.64*268.11mm(H*V) |
Outline Size | 495.6*292.2*11mm(H*V*D) |
Signal Type | LVDS |
Working freqyency | 60Hz |
Working temperature | -20℃ ~ 70℃ |
Storage Temperature | -30 ~ 80 °C |
Display ratio | 16:9 |
Display color | 16.7m |
Backlight Voltage | 5V |
Backlight Power Consumption | 14.3w |
Surface Treatment | Haze 1%,Hard coating(3H) |
Weight | 1.67kgs |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
