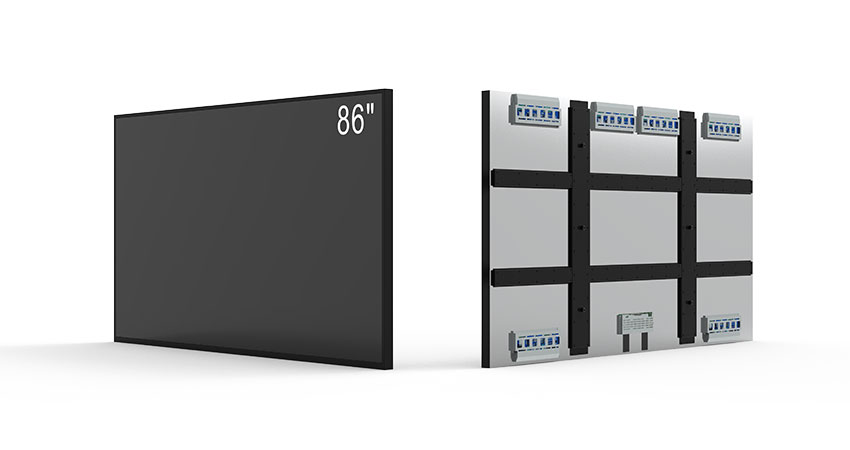

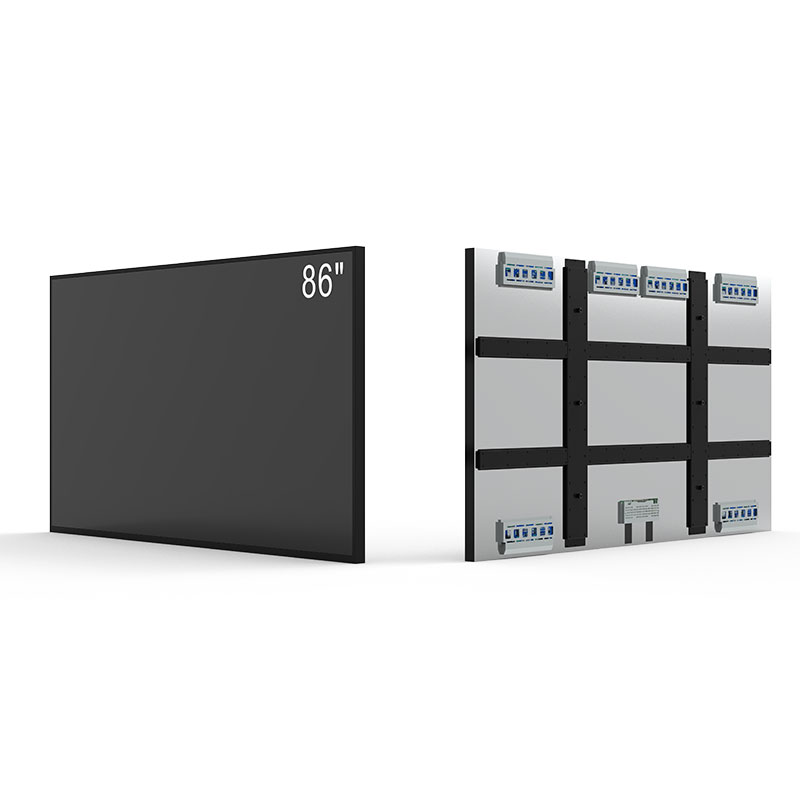

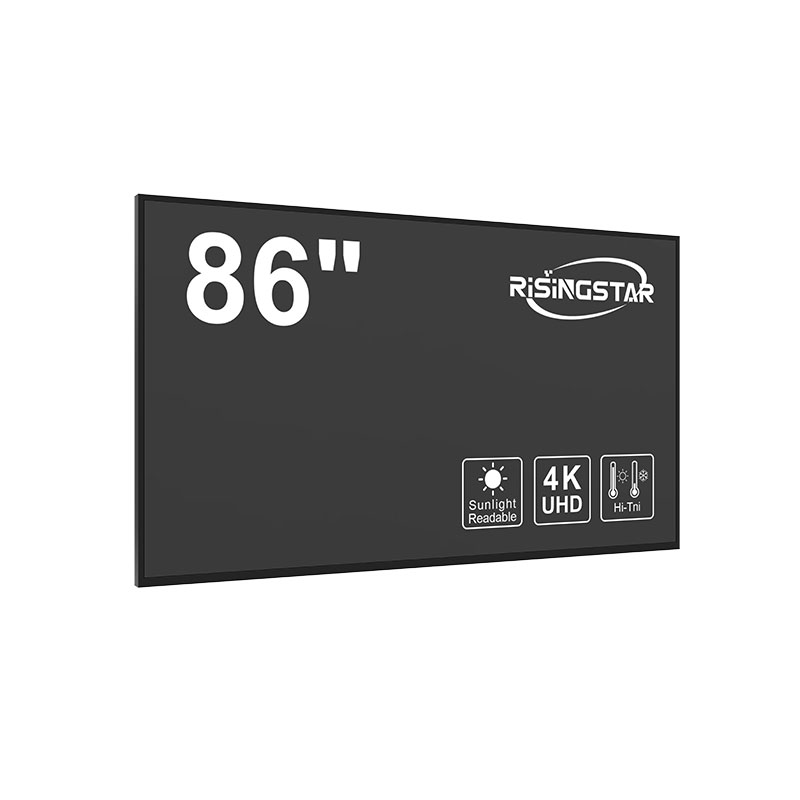

86" Industrial Ultra High Brightness Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
86" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS860ENT-GD20 | 2000 | 3840×2160 |
| RS860ENT-GD25 | 2500 | 3840×2160 |
| RS860ENT-GD30 | 3000 | 3840×2160 |
| RS860ENT-GD35 | 3500 | 3840×2160 |
| RS860ENT-GD40 | 4000 | 3840×2160 |
| RS860ENT-GD45 | 4500 | 3840×2160 |
| RS860ENT-GD50 | 5000 | 3840×2160 |
Specification
| Specification | Details |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB)×2160, UHD, 51 PPI, RGB Vertical Stripe |
| Active Area | 1895.04(W) × 1065.96(H) mm |
| Viewable Area | 1897.0(W) × 1068.0(H) mm |
| Brightness | 2000~5000 nits |
| Viewing Direction | Full View |
| Viewing Angle | 89/89/89/89 (L/R/U/D, Min., CR≥10) |
| Colors Supported | 16.7M / 1.07B, 72% NTSC |
| Weight | 34.1 / 35.8 Kgs (Typ./Max.) |
| Refresh Rate | 60Hz 120Hz (60Hz input, built-in MEMC) 120Hz+120Hz (120Hz panel + 120Hz backlight) 240Hz (60Hz input, built-in MEMC) |
| Surface Treatment | Matte (Haze 3%), Hard Coating (2H) |
| Contrast Ratio | 1200:1 (Typ., Transmissive) |
| Response Time | 8 ms (G-to-G Typ.) |
| Operation Mode | IPS, Normally Black, Transmissive |
| IPS Panel Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Panel Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Backlight Type | WLED, 30K hours, including LED driver |
| Applications | TV, Interactive Whiteboard |
| Interface | 56 pins, V-by-One 8 lane, Terminal |
| Supply Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Description
The 86-inch a-Si TFT-LCD module is a high-performance ultra-high definition display designed for professional and commercial applications. Featuring a 3840×2160 UHD resolution with 51 PPI and RGB vertical stripe pixel layout, it delivers crisp, vibrant images across a large viewing area of 1897 × 1068 mm. Its brightness ranges from 2000 to 5000 nits, ensuring excellent readability in various lighting conditions. The panel provides full viewing angles (89°/89°/89°/89°) and supports up to 1.07 billion colors, covering 72% NTSC color gamut.
Equipped with a matte anti-glare surface (Haze 3%) and 2H hard coating, the panel minimizes reflections while maintaining image clarity. The IPS technology ensures consistent color reproduction and wide viewing angles. Response time is 8 ms (G-to-G), with multiple refresh rate options, including 60Hz, 120Hz, 240Hz with built-in MEMC support. Backlit by WLEDs with a lifespan of 30,000 hours, the display is energy-efficient and reliable.
Interfaces include a 56-pin V-by-One 8 lane connector, with typical supply voltage at 12V. Operating and storage temperatures range from -20 ~ 70 °C, making it suitable for TVs, interactive whiteboards, and other professional display systems.
Applications
Commercial televisions and digital signage
Interactive whiteboards and educational displays
Conference and meeting room displays
Control rooms and monitoring stations requiring ultra-high brightness

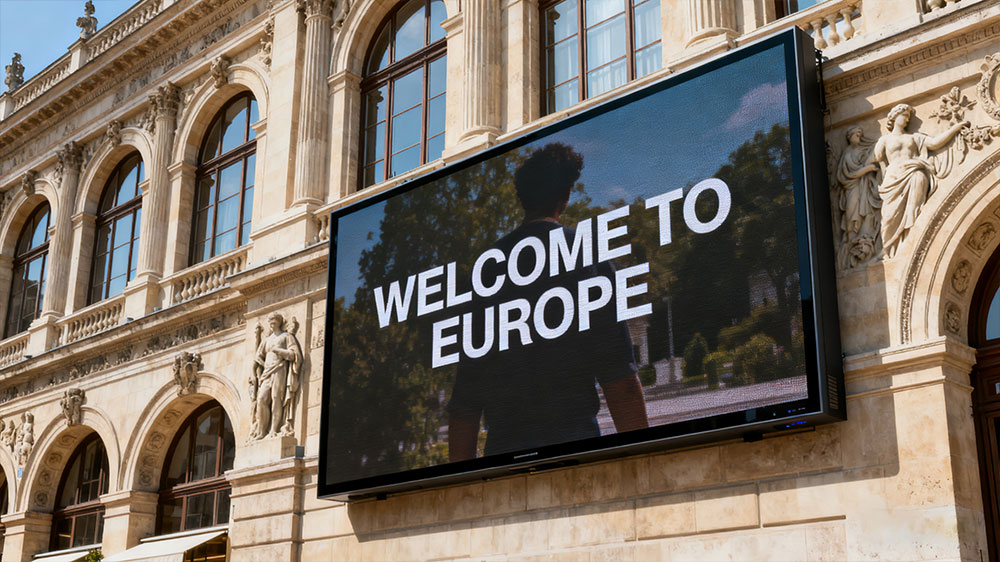

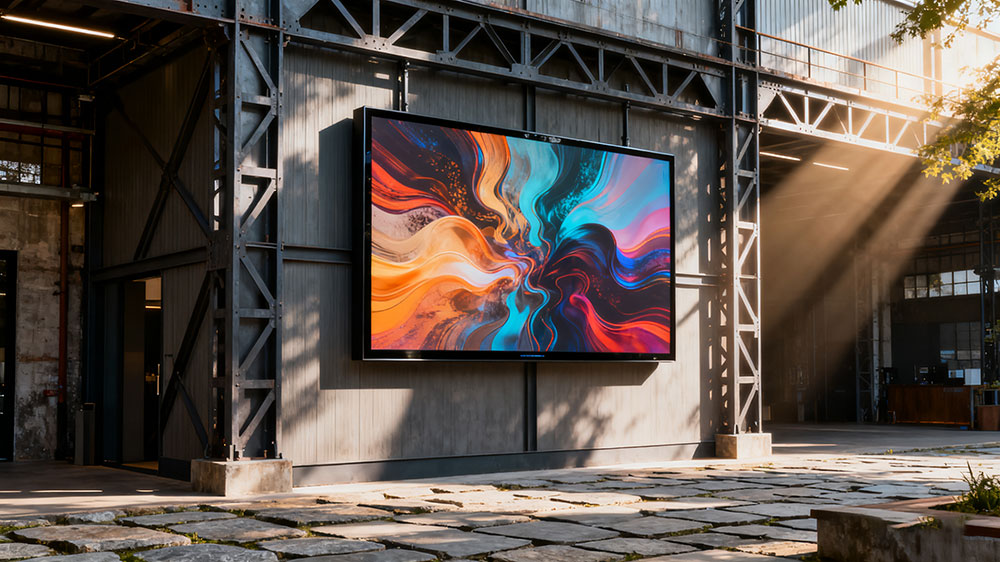

Outdoor or semi-outdoor digital panels (with adequate housing)
| Specification | Details |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB)×2160, UHD, 51 PPI, RGB Vertical Stripe |
| Active Area | 1895.04(W) × 1065.96(H) mm |
| Viewable Area | 1897.0(W) × 1068.0(H) mm |
| Brightness | 2000~5000 nits |
| Viewing Direction | Full View |
| Viewing Angle | 89/89/89/89 (L/R/U/D, Min., CR≥10) |
| Colors Supported | 16.7M / 1.07B, 72% NTSC |
| Weight | 34.1 / 35.8 Kgs (Typ./Max.) |
| Refresh Rate | 60Hz 120Hz (60Hz input, built-in MEMC) 120Hz+120Hz (120Hz panel + 120Hz backlight) 240Hz (60Hz input, built-in MEMC) |
| Surface Treatment | Matte (Haze 3%), Hard Coating (2H) |
| Contrast Ratio | 1200:1 (Typ., Transmissive) |
| Response Time | 8 ms (G-to-G Typ.) |
| Operation Mode | IPS, Normally Black, Transmissive |
| IPS Panel Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Panel Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Backlight Type | WLED, 30K hours, including LED driver |
| Applications | TV, Interactive Whiteboard |
| Interface | 56 pins, V-by-One 8 lane, Terminal |
| Supply Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
