32″ High Brightness Sunlight Readable LCD Panel
| Brand | RisingStar |
| Model name | RS320HVN-GD15 |
| Screen size | 32 " |
| Screen type | Outdoor LCD Monitor |
| Resolution | 1920(RGB)×1080 |
| Brightness | 1500 to 5000nits |
32″ High Brightness Sunlight Readable LCD Panel – Model RS320HVN-GD15 (AUO P320HVN04.1)
RisingStar introduces the 32 inch high brightness LCD module RS320HVN-GD15, powered by AUO P320HVN04.1 open cell technology. Designed for outdoor and industrial environments, this display delivers up to 1500 nits typical brightness with optional customization up to 5000 nits, ensuring crystal-clear visibility even under direct sunlight.

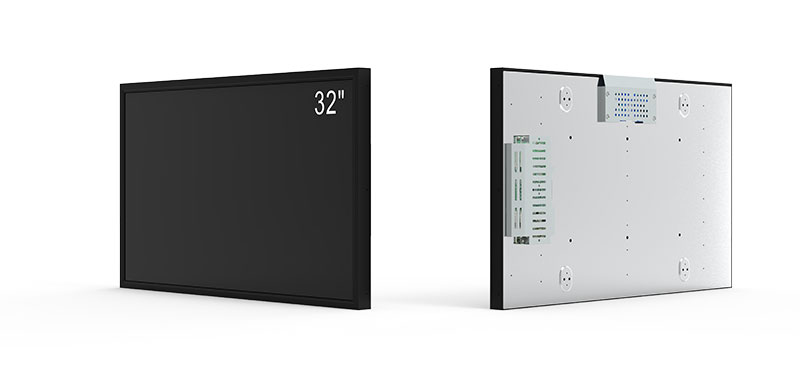

Product images

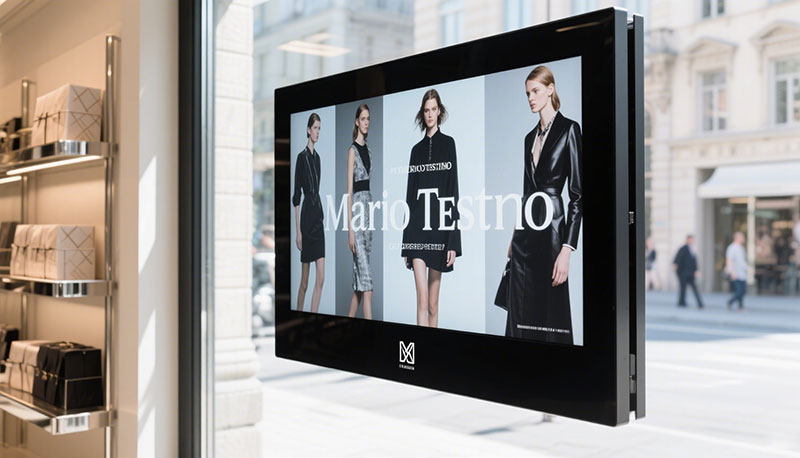

Application examples
Technical specifications
| Specification | Details |
|---|---|
| Panel Size | 32.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB)×1080, FHD, 69PPI |
| Active Area | 698.4 × 392.85 mm |
| Viewable Size | 701.46 × 395.9 mm |
| Brightness | 1500 to 5000 nits |
| Recommended Viewing Angle | Full viewing angle, 89/89/89/89 (Typ., CR≥10) L/R/U/D |
| Color Depth | 1.07B, 100% Adobe RGB |
| Weight | 4.63 ± 0.46 kg |
| Refresh Rate | 60Hz \r\n 120Hz (60Hz input, built-in MEMC circuit) \r\n 120Hz+120Hz (120Hz panel + 120Hz backlight) \r\n 240Hz (60Hz input, built-in MEMC circuit) |
| Surface Treatment | Matte |
| Contrast Ratio | 3000:1 (Typ., Transmissive) |
| Optical Mode | AMVA3, normally black, transmissive |
| Response Time | 8/10 ms (Typ., Tr/Td) |
| Backlight System | WLED, 30K hours, includes LED driver |
| Applications | Industrial, Medical Imaging, Outdoor High Brightness |
| Touch Screen | Not supported |
| Signal Type | 51 pins LVDS (2 ch, 8-bit) |
| Power Supply | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Key Features at a Glance
1500 nits sunlight readable brightness – clear and vibrant images in outdoor conditions.
IPS wide viewing angle (178° H/V) – consistent colors and readability from any direction.
Industrial-grade wide temperature range – tested from –20 °C to +70 °C for reliable performance.
Premium A/A+ open cell sources – supplied from AUO, LG, and BOE with RisingStar custom backlight design.
Full HD resolution (1920×1080) – sharp details for signage, kiosks, and control systems.
Why Choose RisingStar?
With over 10 years of expertise in high brightness display technology, RisingStar collaborates with top panel manufacturers (AUO, BOE, LG) to deliver reliable, customized outdoor LCD solutions. Our proprietary backlight design enhances brightness performance while maintaining low power consumption and stable lifetime.
Application Scenarios
The RS320HVN-GD15 is widely used in:
Outdoor digital signage & advertising displays
Fuel pump and charging station screens
Industrial automation & control panels
Public information kiosks & transportation hubs
Case Example: A European outdoor advertising company reported a 45% improvement in daytime readability after replacing traditional displays with RisingStar’s 32″ sunlight readable LCD panels.
Certifications & Quality Assurance
ISO 9001 certified production process
CE, RoHS compliance
100% reliability tested under high-temperature and sunlight exposure
Customer Testimonials
“RisingStar’s high brightness LCD panels outperform competitors in both stability and outdoor readability. The RS320HVN-GD15 made our signage projects stand out under direct sunlight.”— Project Manager, Outdoor Digital Signage Integrator
Get a Quote or Custom Solution
Looking for a tailored high brightness display for your project? RisingStar provides OEM/ODM services with flexible customization for brightness, touch integration, and rugged housing design.
📧 Email: ai@risinglcd.com📞 Phone: ++86 15889469208
🌐 Address: RisingStar Technology, Shenzhen, China
FAQ
Q: What does “nits” mean in display brightness?A: A nit equals one candela per square meter (cd/m²). The higher the nit value, the brighter the screen. Our RS320HVN-GD15 reaches 1500 nits and can be customized up to 5000 nits.
Q: Can this panel operate in outdoor environments?A: Yes, it is designed for sunlight readability and industrial temperature ranges, making it ideal for outdoor signage and rugged applications.
