37" RisingStar RS370IVN-GD25 Outdoor Stretched Monitor

37" RisingStar RS370IVN-GD25 Outdoor Stretched Monitor

RS370IVN-GD25: 37" 2500 nits large-format display. 1920x540 54PPI. Engineered for information walls and outdoor signage.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

RisingStar 37 inch high brightness stretch LCD bar provides 1920*540 ultra wide aspect ratios, 1500nits high brightness, can be clearly visible under direct sunlight, and give perfect visual performance in a wide public application, especially for the passenger information on the public transport scuh as train.metro station

RisingStar 37 inch stretched LCD displays are using the original factory open cell instead of the resizing or 'cut' LCD panels, whcih is the standard size, and reduces the risk of broken glass, micro cracks, and any light leakages.

37寸

Stretched bar LCD display is an innovative ultra-wide, sunlight readable LED backlight LCD display, it provides an LCD panel with specific rations for digital signage, public transportation, exhibition hall, department store, vending machine, POS and industrial applications, it is a high-quality full color video with energy-efficient.
Risingstar stretched LCD panel parameter

RisingStar high brightness stretch bar LCD display is with super-wide aspect ratios as wide as 16:1 and in sizes ranging 19inch, 24inch, 21 inch, 28inch, 37 inch,43.8inch, 48.5 inch, 58.4 inch, (customization sizes as you like), and with customized backlight, the brightness can achieve 3000nits, or even higher (more brightness are option, 1000nits, 1500nits, 2500nits, 3500nits, 4500nits, 5500 nits, high brightness makes these screen can read even in the directly sunlight, ideal for passenger information display, transport timetables, traffic messages, announcements and other important communications.

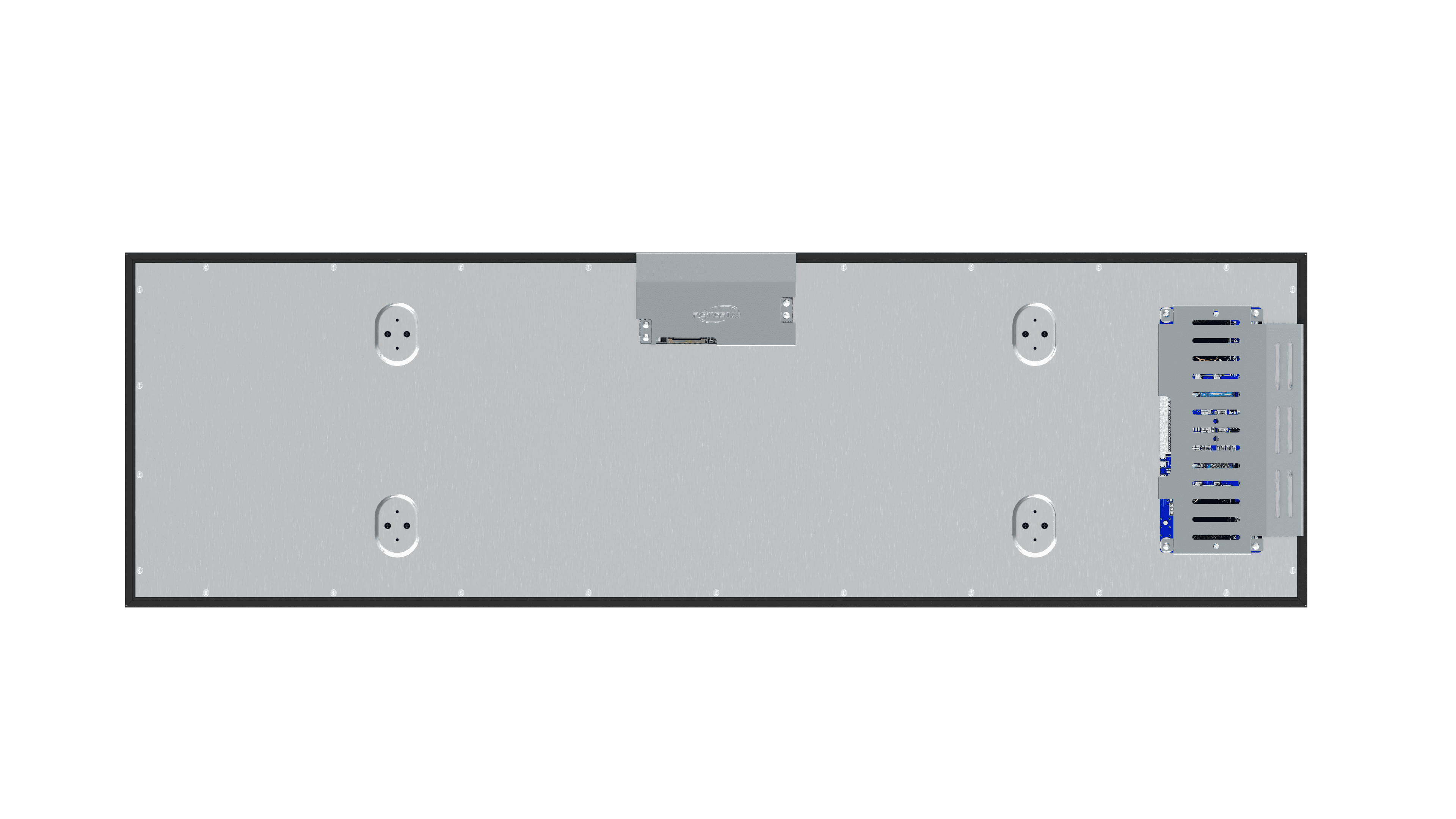

37" RS370IVN-GD25 Outdoor Stretched Monitor


Panel BrandRisingStar
Panel ItemRS370IVN-GD25
Size37 inch
Panel Typea-Si TFT-LCD,   LCM
Resolution: 1920(RGB)*540 54PPI
Pixel FormatRGB Vertical   Stripe
Display Area904.32*245.34(H*V)mm
Outline   Size 923.3*277.1*30.5(H*V*D)mm
Bezel Area907.5*257.5(H*V)mm
Surface Treatment Antiglare (Haze 28%)   , Hard Coating (3H)
Brightness2500cd/m²
Constrast   Ratio.4000:1
View Angle89/89/89/89(Min)
Display ModelAMVA3, Normally   Black, transmissive Display
Best View   on Symmetry
Response Time5 (Typ.)(G to G)
Display Color16.7M/1.078  76% s RGB
BacklightWLED, 70K hours, With   LED Driver
Touch   Screen Without
Panel   Weight 4.59Kgs
Frame Rate60Hz
Signal   Interface LVDS (2ch, 8-bit), 51   pins connector
Input   Voltage 12v(Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Current   State: In Production
RS370IVN-GD25 37 inch high brightness display 37 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
