RisingStar introduces the 46-inch high brightness window facing LCD display with up to 3500 nits luminance, designed for shopfronts, transportation hubs, and digital signage projects that demand clear, vibrant images even under direct sunlight. Engineered with industrial-grade IPS technology, advanced thermal management, and 24/7 operation capability, this display ensures reliable performance and stunning visuals in the most challenging environments.
Ultra High Brightness (3500 nits): Ensures perfect visibility in shop windows and sun-exposed environments.
Sunlight Readable IPS Panel: Wide 178° viewing angles with accurate color reproduction.
Blackening Resistant: Tolerates surface temperatures up to 110°C without screen blackening.
Smart Brightness Control: Automatic adjustment reduces power consumption and extends display life.
Front Tempered Glass Protection: Anti-reflective coating minimizes glare and protects the LCD from damage.
24/7 Operation, 50,000+ Hours Lifespan: Optimized backlight system designed for continuous commercial use.
Flexible Installation: Wall mount, hanging, embedded, or freestanding options available.
Android OS / CMS Support: Integrated media player options for remote content management.
Energy Efficient & Low Heat: Industrial design reduces power usage while ensuring stable performance.
| Specification | Details |
|---|---|
| Panel Size | 46 inch |
| Panel Type | a-Si TFT-LCD, IPS, transmissive |
| Resolution | 1920 × 1080 (FHD) |
| Brightness | 1500 to 5000nits |
| Contrast Ratio | 1100:1 (Typ.) |
| Viewing Angle | 178° (H/V), sunlight readable |
| Response Time | 12 ms (Typ.) |
| Colors | 16.7M, 72% NTSC |
| Surface Treatment | Tempered glass + Anti-reflective coating |
| Backlight | High-efficiency LED, >50,000 hours |
| Refresh Rate | 60Hz; Optional 120Hz MEMC |
| Operating Temp. | -20°C ~ +70°C |
| Storage Temp. | -20°C ~ +70°C |
| Signal Input | HDMI / DVI / VGA / DP / USB / LAN (customizable) |
| Power Supply | 12V DC / AC adapter, energy-efficient |
| Weight | Approx. 22 kg |
| Application | Window-facing signage, retail shopfronts, airports, metro stations |
This 46-inch high brightness LCD display is purpose-built for:
Retail shopfront window displays – attract attention even under direct sunlight.
Quick service restaurants (QSR) – outdoor menu boards with sharp readability.
Transportation hubs – airports, train & metro stations, passenger information screens.
Financial institutions & real estate offices – high visibility marketing displays.
Outdoor kiosks & EV charging stations – reliable and robust signage solutions.

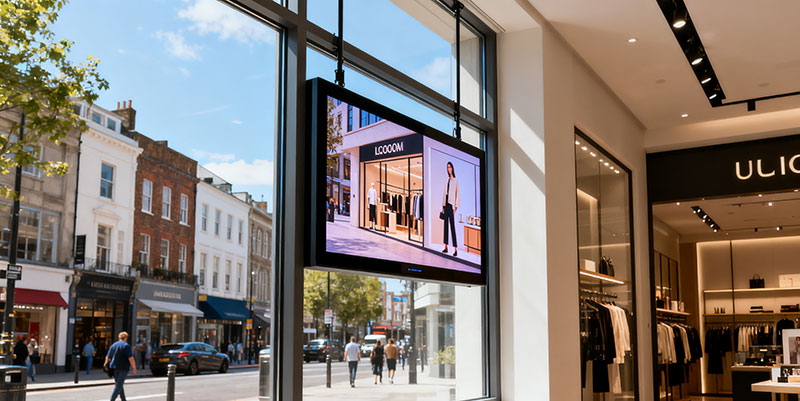

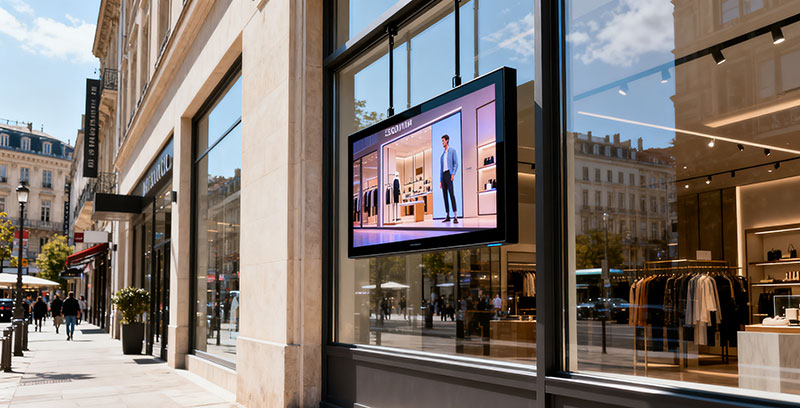

Retail Mall Shopfront – London, UK (2024)
RisingStar supplied 25 units of 46-inch 3500 nits LCD displays for a downtown shopping mall. The screens were mounted behind large glass facades exposed to direct midday sunlight.
Achieved >90% brightness retention through glass.
Operated continuously in 35°C ambient outdoor conditions with no blackening or image degradation.
Customer feedback: Significant increase in customer engagement and foot traffic to the stores.
📷 [Insert real project photos or videos here]
Our high brightness LCDs are tested and certified to meet international standards:
CE, RoHS, UL compliance
IP65 front glass option for dust and water protection
High temperature endurance testing: withstands up to 110°C panel surface without blackening
UV & humidity resistance: 500+ hours UV exposure with <5% brightness degradation
Salt fog & vibration tested for transportation and coastal applications
These certifications ensure peace of mind for system integrators and distributors, guaranteeing long-term stability and compliance with global market requirements.
Q: Will brightness be reduced when the display is installed behind glass?
A: Yes, standard glass can reduce brightness by ~10-15%. Our displays use anti-reflective coatings and higher luminance output to maintain clarity in shopfront applications.
Q: Can the display run 24/7 without overheating?
A: Absolutely. With advanced thermal design and industrial backlight technology, the display operates reliably 24/7 for over 50,000 hours.
Q: Does the LCD blacken in direct sunlight?
A: No. The panel is engineered with high-temperature resistant components that prevent blackening up to 110°C.
Q: What installation methods are supported?
A: Wall-mount, hanging, freestanding, and embedded installation are all available.
Q: What warranty is provided?
A: Standard 2-year warranty, with extended service packages available for OEM/ODM partners.
15+ years experience in industrial and commercial LCD manufacturing
Global clients in Europe, North America, and Asia
OEM / ODM customization available for integrators and distributors
Strong logistics and after-sales support worldwide
👉 Looking for a sunlight readable, energy-efficient 46-inch display for retail or public information projects?
📩 Contact RisingStar today for datasheets, project consultation, or to request a sample unit.
Tel/Whatsapp: +86 15889469208
| E-mail: ai@risinglcd.com
46inch high brightness window facing LCD display Main features
1.Full viewing angles
Thanks to using a matrix with IPS/MVA technology, our high brightness display is readable from any angle. There is no gray scale inversion effect which is a normal feature of popular TN matrixes. A decrease in contrast when increasing the viewing angle is also significantly lower. Superior image quality and color depth at 178 degree ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.
2. Outstanding visibility high brightness
With a great brightness of 3500nits, our window facing display are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility.
3. Smart brightness control
The built-in auto-brightness sensor adjusts backlight brightness according to the surrounding brightness to save power energy and protect your eyes.
4.Blackening Defect Free
Most residential and commercial LCD panel exposed to directly sunlight will blacken or result in isotropic failure. RisingLCD high brightness window facing displays are equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
5. Plug and play
Plug and play, plug you USB stick that have loaded images and videos into our high brightness window facing display, just only wait for your content copy over, then it can play automically.
6. Protective glass
Our high brightness window facing is covered with he tempered and laminated front glass that ensures optimum protection from outdoor extremities, resulting in minimal to no damage form extrenal impacts.
7. Android media player
For this high brightness window facing display, we also offer cloud basis network CMS if required, and you can run the third-party digital signage software on our android platform too
This 46inch high brightness LCD display support the various installation ways, floor stand, wall mounted, hanging to celling, you can choose as your like. landscape and portrain are also available
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
| Factory Model No: | RS460ENT-N25 |
| Panel Brand | BOE Display |
| Panel No.: | HV460FH2-601 |
| Screen Size | 46" |
| Panel Technology | IPS, M+ (WRGB) |
| Active Area(mm) | 1018.08*572.67 (H×V)mm |
| Panel Type. | a-Si TFT-LCD, CELL |
| Aspect Ratio | 16:09 |
| Native Resolution | 1920*1080(FHD) 47PPI |
| Refresh Rate | 60Hz |
| Brightness | 1500 to 5000nits |
| Contrast Ratio | 1200:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | 16.7M, 36% NTSC |
| Viewing Angle (H x V) | 178 x 178 |
| Support Color: | 16.7M, |
| Response Time | 8 (Typ.) (G+G)ms |
| Display Mode | ADS, normally Black, Transmissive |
| Surface Treatment (Haze) | |
| Life time | 50,000 Hrs (Typ) |
| Operation Hours (Hours/Day) | 24/7 |
| Operating Temperature: | 0 ~ 50 °C |
| Storage Temperature: | -20 ~60 °C |
| Portrait / Landscape | Yes / Yes |
| Jack interface input | HDMI (2), , RS232C IN (4pin phone jack), RJ45(LAN), IR IN, USB2.0 Type A (1) |
| Jack interface output | DP Out (Input DP/HDMI), Externel Speaker Out (L/R, 10W+10W), RS232C OUT |
| Net work support | LAN/WLAN/3G/4G/5G network. |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
