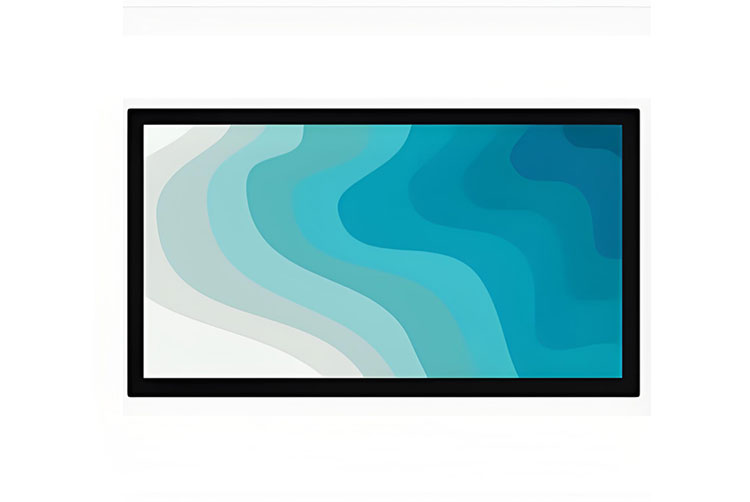

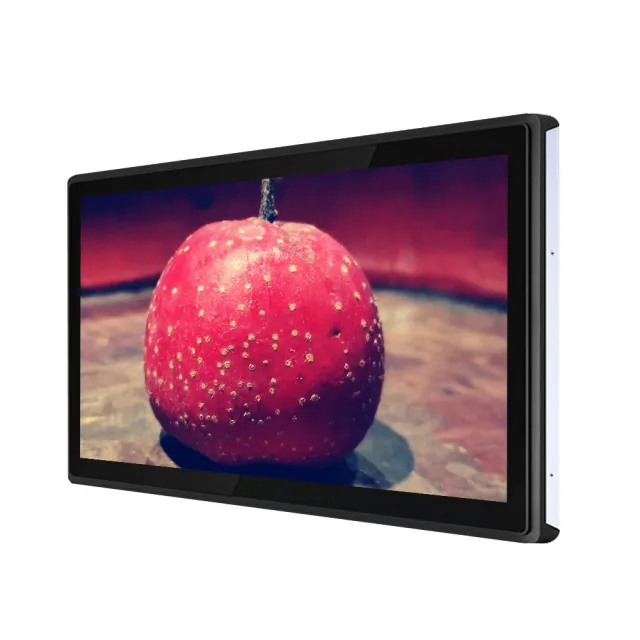

55 Inch Outdoor High Brightness TFT LCD Monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
Items | Specification | Note |
Panel Brand | Risingstar | |
Diagonal Size | 55" | |
Panel Type | a-Si TFT-Module | LG/BOE/AUO |
Resolution | 1920×1080 / 3840 × 2160 (RGB) | |
Pixel Format | RGB Vertical Stripe | |
Display Area | 1209.6×680.4mm (H×V) | |
Outline Size: | 1230.4×706.8×40mm (H×V×D) | |
Surface | Antiglare (Haze 1%), Hard coating (2H). | |
Brightness | 500 to 4000 cd/m² (Typ.) | |
Contrast Ratio | 1300:1 (Typ.) (TM) | |
waterproof level | / | |
Protection level | / |
Support Color | 1.67B 100% NTSC | |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | |
Display Mode | IPS, Normally Black, Transmissive . | |
Response Time | 5 (Typ.)(G to G); 8 (Typ.)(MPRT). | |
Lamp Type | WLED , 50K hours , With LED Driver | |
Frequency: | 60Hz | |
Panel Weight | 16.65 Kgs (Typ./Max.) | |
Application | Outdoor digital signage | |
Signal Interface | LVDS | |
Input Voltage: | 24V ,110 to 260V (Typ.). | |
Operating Temperature | -20 ~ 70 °C | |
Storage Temperature | -30 ~ 80 °C |
Large outdoor high brightness TFT LCD display supplier
Risingstar production factory
The Risingstar 55 inch outdoor high brightness TFT LCD monitor is widely used in commercial applications. The high-brightness LCD module can be directly processed into an open display, digital signage, outdoor TV, outdoor monitor, the advantages of the product:
1. Using LG industrial-grade LCD panel, suitable for all weathers in the world;
2. The direct-lit backlight design is more reliable in heat dissipation;
3. Optical materials pass the 120℃ reliability test;
4. The backlight driver supports 3 adjustment methods;
5. The product structure adopts aluminum alloy material;

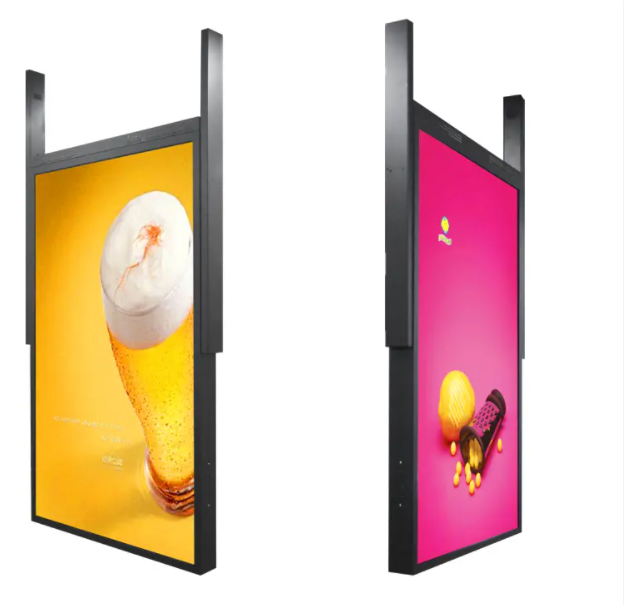

6. Support double-sided display
7. Support horizontal screen and vertical screen playback mode;

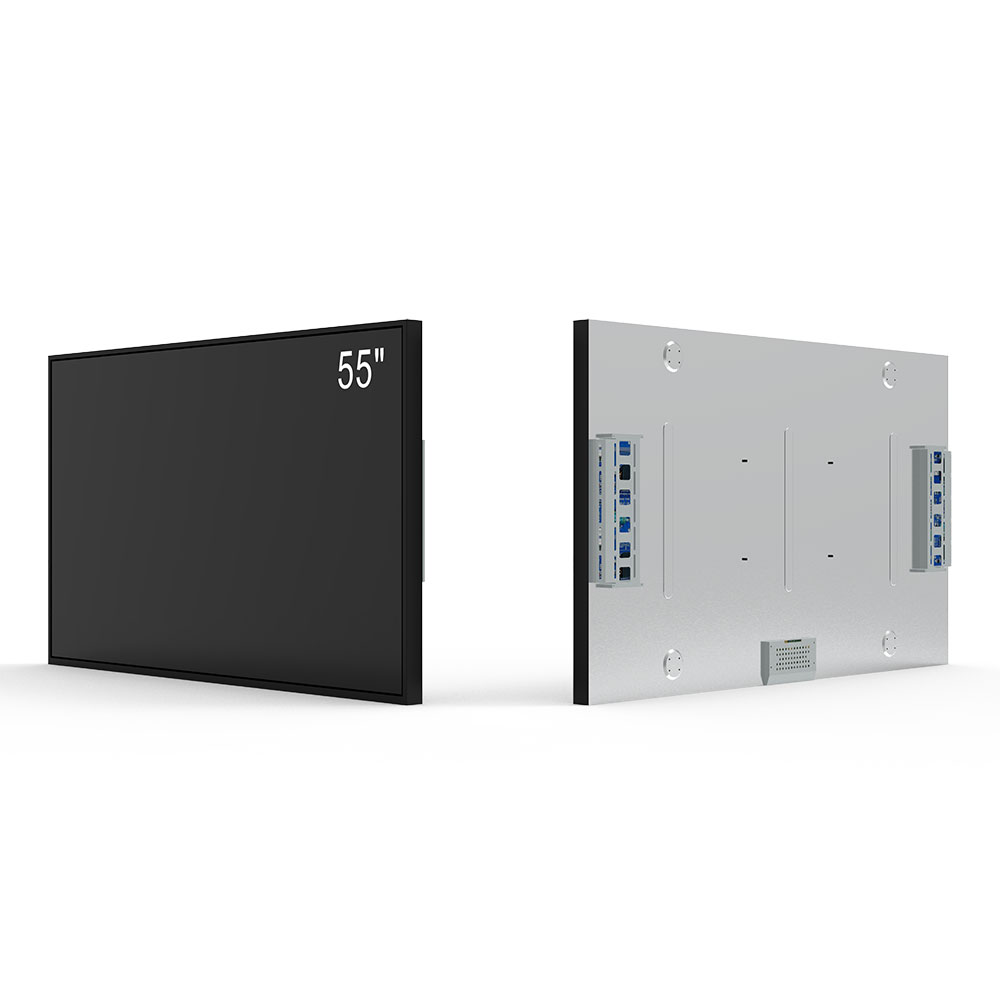

55 Inch Outdoor High Brightness TFT LCD Monitor

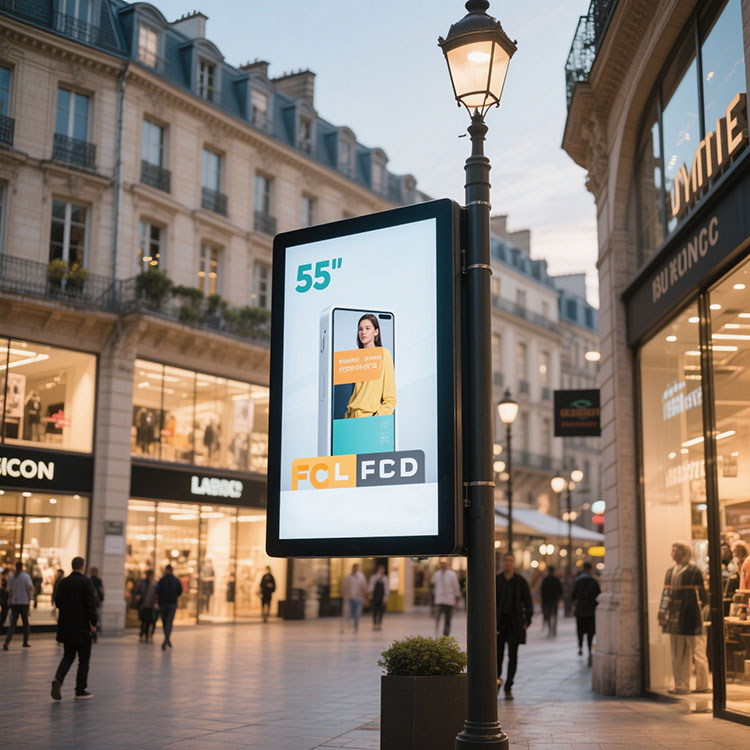

55 inch outdoor high brightness TFT LCD display application case

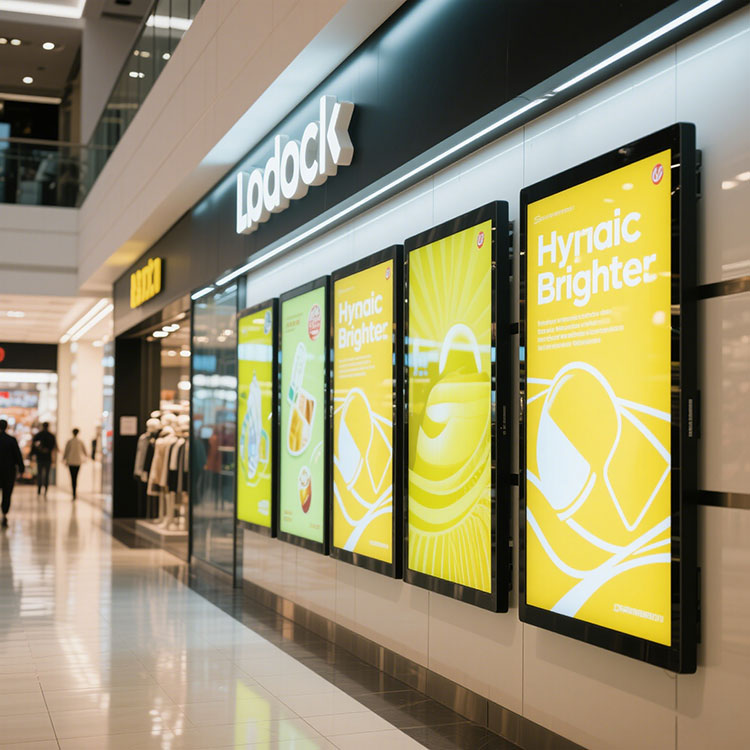

55 inch outdoor high brightness TFT LCD display mall case
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
