21.5 inch edge side LED backlight 1000 nits IPS LCD panel for open frame display

21.5 inch edge side LED backlight 1000 nits IPS LCD panel for open frame display

RisingStar® 21.5 inch RS215ENT-N10-IP sunlight readable display. 1000 nits high brightness, 1920(RGB)×1080 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

21.5 inch ELED backlight 1000 nits IPS LCD panel for open frame display

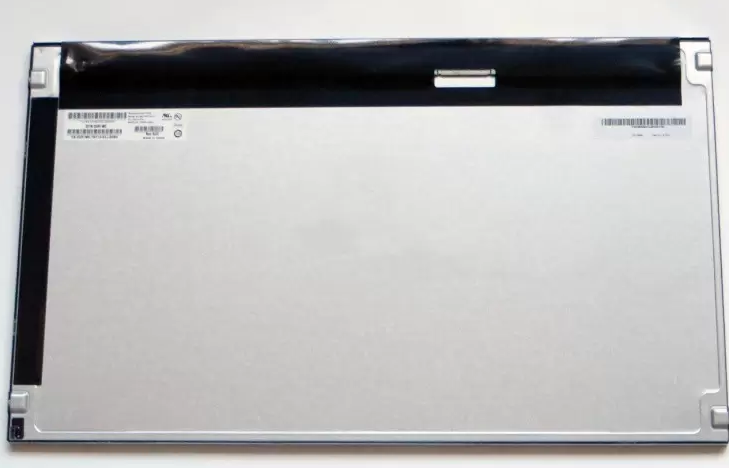

Risingstar RS215ENT-N10-IP is a industrial panel that with AUO IPS original grade a panel G215HAN01.501, and with RisingLCD factory own design edge side led back light that improve the brightness to 1000 nits that make the display can be read even in the directly sunlight.

21.5 inch ELED backlight IPS LCD panel, customized 1000nits brightness, 1920*1080 full HD resolution, display area 478.06 × 267.786 mm, wide viewing angle 89/89/89/89, Wide temperature range: operating: -10 to 70°C, storage: -20 to 80°C. it is ideal for openframe outside and industrial application, with the high performance mainboard and imported LED light, it can be 7*24 continuous operation.

Application: ATM solutions, Marine/military, transportation station, industrial and manufacturing testing device, self-service kiosk and medical checking and testing displays

Factory   Item NoRS215ENT-N10-IP
Panel BrandAUO
Panel ModelG215HAN01.501
Size21.5 inch
Panel Typea-Si TFT-LCD,   LCM
Resolution: 1920(RGB)×1080   [FHD]    102PPI
Pixel FormatRGB Horizontal Stripe
Display Area478.06 × 267.786 mm   (H×V)
Outline   Size 479.8*271.3mm (H×V)
Bezel Area479.6*292.2*11.1mm
Surface   Treatment Antiglare, Hard   coating (3H)
Brightness1000
Constrast   Ratio.1000:1
Aspect   Ratio: 16:9
View Angle89/89/89/89   (Typ.)(CR≥10)
Display ModelADS, Normally Black,   Transmissive
Response Time12/10 (Typ.)(Tr/Td)
Display Color16.7B  72% NTSC
Backlight WLED , 50K hours , W/O LED Driver
Interface TypeLVDS (2 ch, 8-bit) ,   30 pins Connector
Panel   Weight 1.74KGS   (Typ./Max.)
Frame Rate60Hz
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS215ENT-N10-IP 21.5 inch high brightness display 21.5 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
