75 inch Industrial LCD advertising monitor DV750QUM-N00
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
General Description:
Risingstar 75 inch industrial LCD monitor is with the original BOE 4K resolution 3840(RGB)*2160(UHD) screen DV750QUM-N00 , and this screen is equipped with a direct-light source LED backlight, brightness 500-4000cd/m² and contrast ratio of 1200:1, it is widely used in shopping street, supermarket, gas station, ATM, Bus station and so on.
DV750QUM-N00 LCD monitor is readable under direct sunlight application, which delivering a clear and attractive contents for viewers no matter where they are.

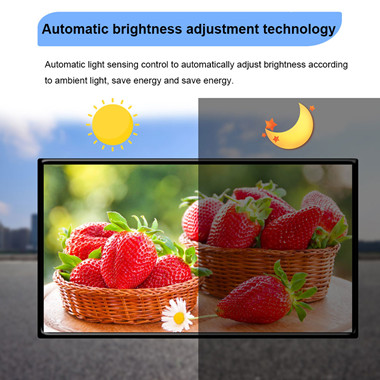

And this panel is built-in an auto brightness sensor helps to reduce it brightness at night to avoid light pollution and to extend its life time.Saving the operating expenses and power consumption.
With 4000nits high brightness and 4k UHD resoluation, our this industrial advertising monitor are situated outddors or in store windows, the readability and longevity of the advertising display is optimised. RisingLCD have continually focussed on developing a solution to ensure that the high brightness digital displays are appropriate as an outdoor digital advertising display.
OEM and ODM are welcomed!
Risingstar Advantage:
OEM/ODM is acceptable!
Small MOQ is acceptable!
Competitive price!
Fast Delivery time!
Risingstar is your best choice!
Ref no. P750QVN02.1, P750QVN02.2
Hot Tags: sunlight screen 4000 nits lcd panel, China, factory, cheap, price, customized, quotation, window facing LCD, 3000 cd/m² LCD Display, 43 Charging Pile LCD Advertising Player, 65 Inches Highlight LCD, 1000 cd/m²s LCD Screen, 82 LCD E-Reader, 21.5 LCD Strip Screen, industrial
| 75 inch Industrial LCD advertising monitor DV750QUM-N00 | |
| Panel Brand | BOE |
| Panel Item | DV750QUM-N00 |
| Size | 75 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 3840(RGB)*2160(UHD) 59PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1649.66*927.936(H*V)mm |
| Outline Size | 1683.46*961.74(H*V)mm |
| Bezel Area | |
| Surface Treatment | Antiglare (Haze 1%) Hard coating(2H), |
| Brightness | 4000cd/m² |
| Constrast Ratio. | 1200:1 |
| View Angle | 89/89/89/89(Min) |
| Display Model | ADS, Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 8(Typ.)(G to G) ms |
| Display Color | 1.07B 89% NTSC |
| Backlight | WLED, 30K hours, With LED Driver |
| Touch Screen | Without |
| Panel Weight | 27.0Kgs |
| Frame Rate | 60Hz |
| Signal Interface | V-by-One 8 lane, 51 pins connector |
| Input Voltage | 12v(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
