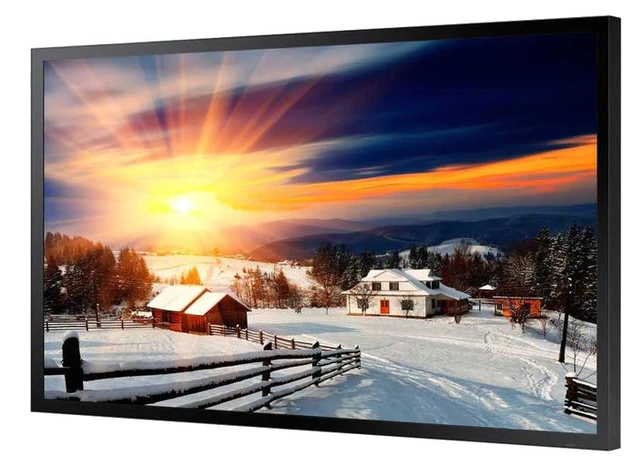

LTI460HZ01 46" Samsung 5000 nits high brightness LCM
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
Brand：SAMSUNG Model：LTI460HZ01
Diagonal Size：46 inch Type： a-Si TFT-LCD, LCM
Pixel Format：1920(RGB)×1080 [FHD] 47PPI Configuration：RGB Vertical Stripe
Active Area： 1018.08(H)×572.67(V) mm Outline Dim.1043.2(H)×596.8(V) ×69.2(D) mm
Bezel Area：1020.2(H)×574.8(V) mm TreatmentAntiglare
Luminance5000 cd/m² (Typ.) Contrast Ratio4000:1 (Typ.) (TM)
View DirectionSymmetry Response Time8.0 (Typ.)(G to G)
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Operating ModeSVA, Normally Black, Transmissive
Support Color16.7M 65% NTSC Light SourceWLED , 50K hours , With LED Driver
Weight13.0/14.0Kgs (Typ./Max.) Designed For：Digital Signage Outdoor High Brightness
Frame Rate60Hz Touch Panel：Without
Interface TypeLVDS (2 ch, 10-bit) , 51 pins Connector
Power Supply12.0V (Typ.)
EnvironmentOperating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
46 Samsung 5000 nits high brightness LCM, suitable for outdoor or bright environment with sunlight, outdoor monitor, outdoor digital signage, outdoor TV, etc.
LTI750HF01 Samsung 75" LCM 1920×1080 2500 5000:1 89/89/89/89 1.07B WLED LVDS
LTI460HF01 Samsung 46" LCM 1920×1080 2500 5000:1 89/89/89/89 16.7M WLED LVDS
LTI550HF04 Samsung 55" LCM 1920×1080 2500 5000:1 89/89/89/89 16.7M WLED LVDS
LTI460HZ01 Samsung 46" LCM 1920×1080 5000 4000:1 89/89/89/89 16.7M WLED LVDS
LTI460HN03 Samsung 46" LCM 1920×1080 1500 4000:1 89/89/89/89 16.7M CCFL LVDS
LTB213QR-L01 Samsung 21.3" LCM 2048×1536 1500 2000:1 90/90/90/90 Grayscale CCFL LVDS
LTI460AA03 Samsung 46" LCM 1366×768 1500 3500:1 89/89/89/89 16.7M CCFL LVDS
LTI460AA03-001 Samsung 46" LCM 1366×768 1500 3500:1 89/89/89/89 16.7M CCFL LVDS
LTI700HD02 Samsung 70" LCM 1920×1080 2000 2000:1 89/89/89/89 16.7M WLED LVDS
LTI700HD02-001 Samsung 70" LCM 1920×1080 2000 2000:1 89/89/89/89 16.7M WLED LVDS
S63HW-XD04 Samsung 63" PDP 1366×768 1000 5000:1 80/80/80/80 68.72B self LVDS
S50HW-XB02 Samsung 50" PDP 1366×768 1000 2500:1 80/80/80/80 16.7M self LVDS
S42AX-XD02 Samsung 42" PDP 1024×768 1050 3000:1 80/80/80/80 16.7M self LVDS
S42AX-YD01 Samsung 42" PDP 1024×768 1100 10000:1 80/80/80/80 16.2M self LVDS
S42AX-YD03 Samsung 42" PDP 1024×768 1500 10000:1 80/80/80/80 550B self LVDS
S50HW-YD01 Samsung 50" PDP 1366×768 1100 8000:1 80/80/80/80 1.07B self LVDS
S63FH-XD01 Samsung 63" PDP 1920×1080 1000 7000:1 80/80/80/80 68.72B self LVDS
LTI460AL04 Samsung 46" LCM 1366×768 1000 4500:1 89/89/89/89 16.7M WLED LVDS0
LTI370LN02 Samsung 37" LCM 1920×540 1500 4000:1 89/89/89/89 16.7M WLED LVDS
S63FH-YB03 Samsung 63" PDP 1920×1080 1000 100000:1 80/80/80/80 68.72B self LVDS
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
