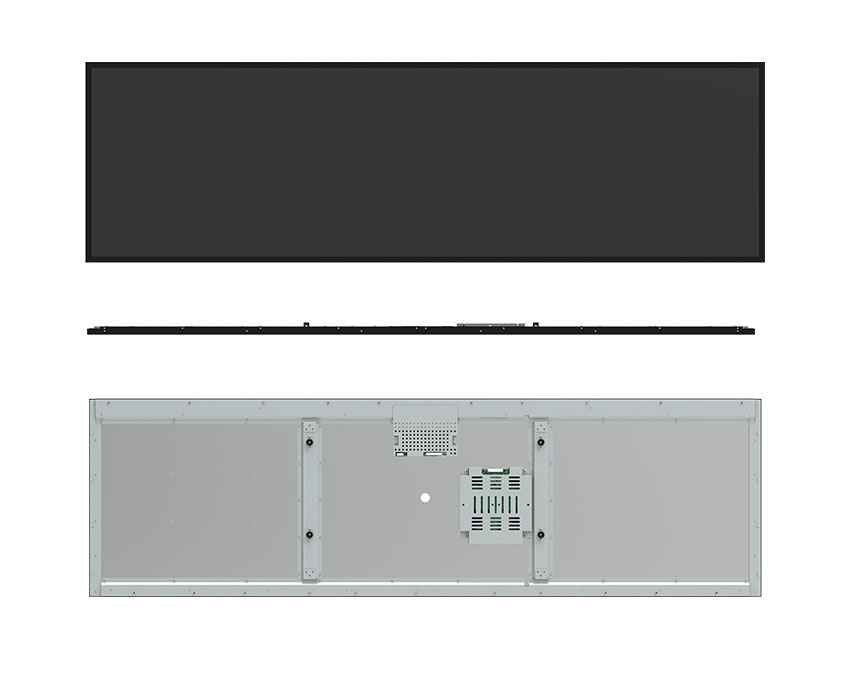

58.4" Industrial Stretch Bar TFT/IPS LCD Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Specification
| Category | Item | Specification |
|---|---|---|
| Display | Screen Size | 58.4 inch |
| Active Area | 1428 × 402 mm | |
| Product Outline | 1471 × 445 × 55 mm | |
| Screen Type | a-Si TFT-LCD | |
| Pixel Number | 3840 × 1080 | |
| Aspect Ratio | 32:9 | |
| Brightness | 500–5000 nits | |
| Contrast Ratio | 2000:1 | |
| Viewing Angle | 89/89/89/89 (CR≥10) | |
| Color Depth | 1.07B (68% NTSC) | |
| Response Time | 8 ms (G-to-G) | |
| Pixel Pitch | 0.372 × 0.372 mm | |
| Mainboard | CPU | MST98A0Q1 |
| Interface | HDMI×3 / USB×1 / DP / DC | |
| Machine | Appearance & Structure | Sheet Metal |
| Color | Black | |
| Peripheral | WiFi / Speaker×2 | |
| Power Supply | AC 100–230V | |
| Power Consumption | ≤60W | |
| Environment | Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C | |
| Installation | Method | Wall-Mounted |
| Logistics | Net Weight | 25 kg |
| Carton Size | 1560 × 400 × 160 mm | |
| Number of Boxes | 1 PCS/Carton | |
| Carton Weight | 28 kg |
Product Description
This 58.4-inch 32:9 ultra-wide high-brightness display is designed for professional digital signage and industrial applications. Featuring a sunlight-readable brightness range of 500 to 5000 nits, the panel provides excellent visibility in both indoor and outdoor environments. The a-Si TFT-LCD module delivers a 3840×1080 resolution, 1.07 billion colors, and wide 89° viewing angles, making it ideal for long-format content such as transportation information, commercial advertising, and retail messaging.
Equipped with an MST98A0Q1 mainboard, triple HDMI inputs, DP, USB, WiFi, and integrated speakers, the display supports flexible system integration. Its sheet-metal structure ensures durability, and the wall-mountable design simplifies installation. Low power consumption (≤60W) and wide operating temperatures make the device suitable for continuous 24/7 operation.
Recommended Applications
Transportation passenger-information systems (railway, metro, bus station)
Retail digital signage (storefront promotion, menu boards, aisle displays)
Corporate & industrial dashboards (production lines, control rooms)
Outdoor/indoor advertising displays
EV charging station displays
Building & real-estate directory signage
| Display | |
| Screen Size | 58.4 inch |
| Active Area | 1428*402(mm) |
| Products Outline | 1471*445*55(mm) |
| Screen Type | a-Si TFT-LCD |
| Pixel Number | 3840*1080 |
| Aspect Ratio | 32:9 |
| Brightness | 500~5000 |
| Contrast Ratio | 2000:1 |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth | 1.07B 68% NTSC |
| Response | 8 (Typ.)(G to G) ms |
| Pixel Pitch | 0.372*0.372(mm) |
| Mainboard） | |
| CPU | MST98A0Q1 |
| Interface | HDMI*3/USB*1/DP/DC |
| Machine | |
| Appearance and Structure | Sheet Metal |
| Color | Black |
| Peripheral | WIFI/Speaker*2 |
| Power supply | AC100~230V |
| Power consumption | ≦60W |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Installation method | Wall hanging |
| 净重(Net weight) | 25Kg |
| Carton size | 1560*400*160 |
| Number of boxes | 1PCS/Corton |
| Carton weight | 28Kg |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
