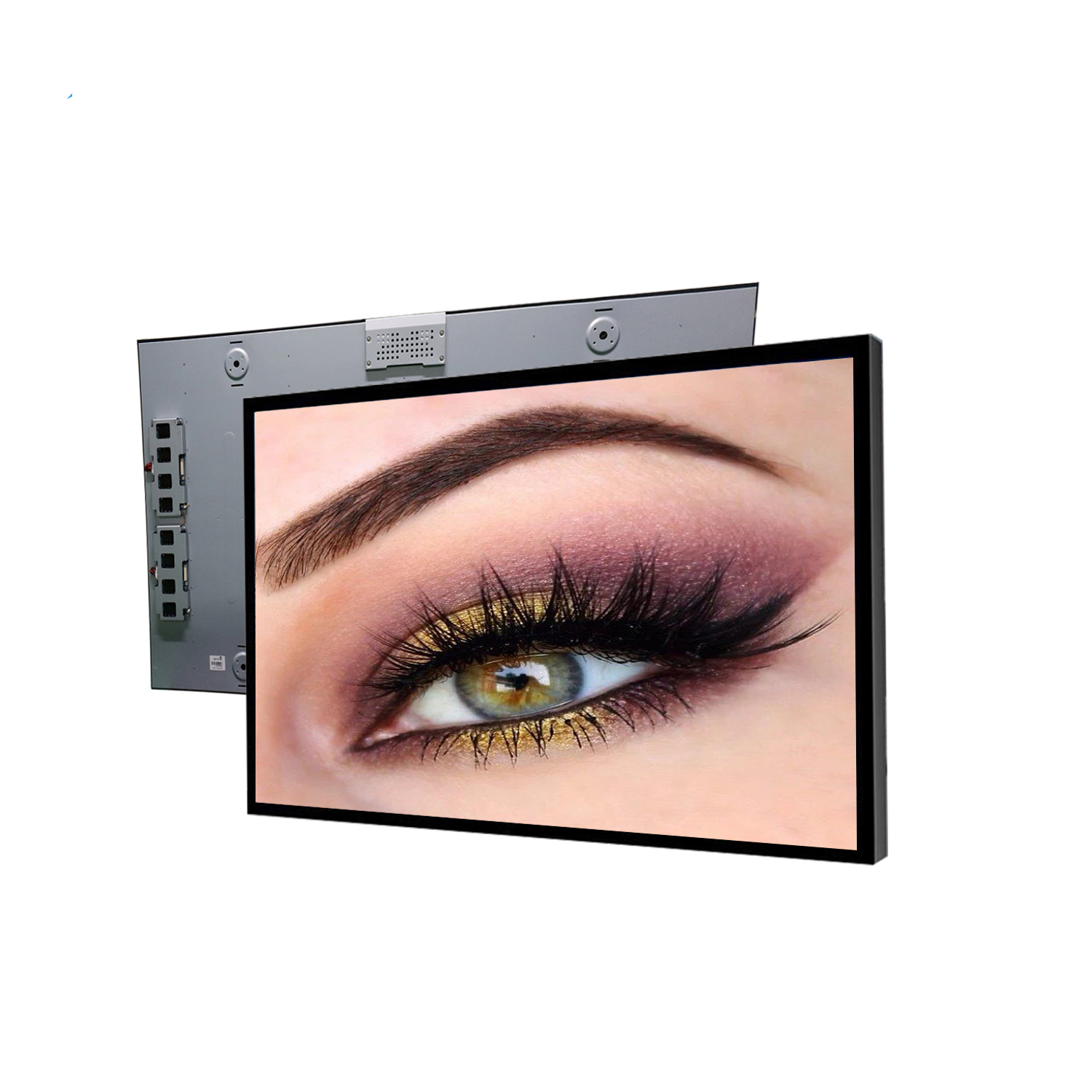

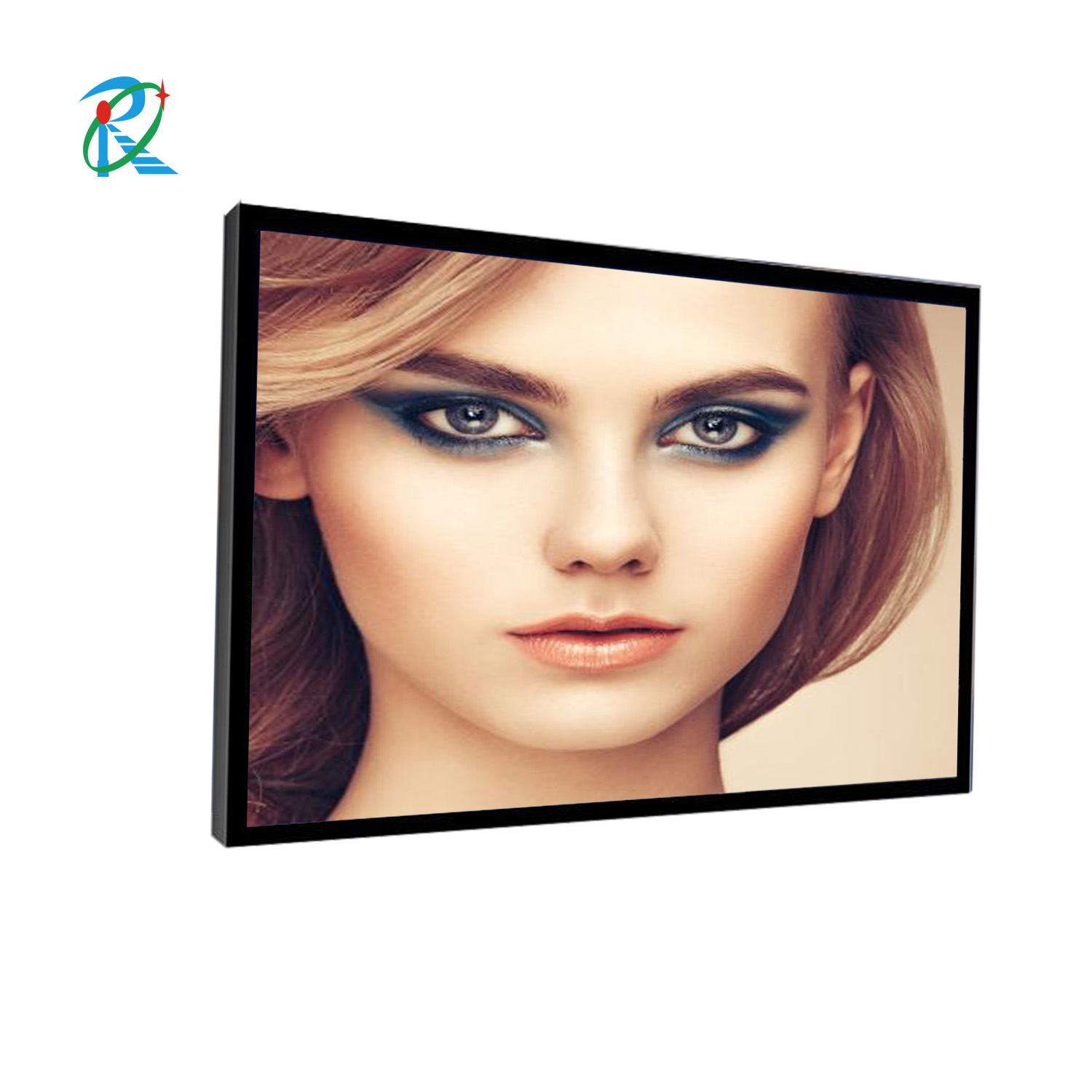

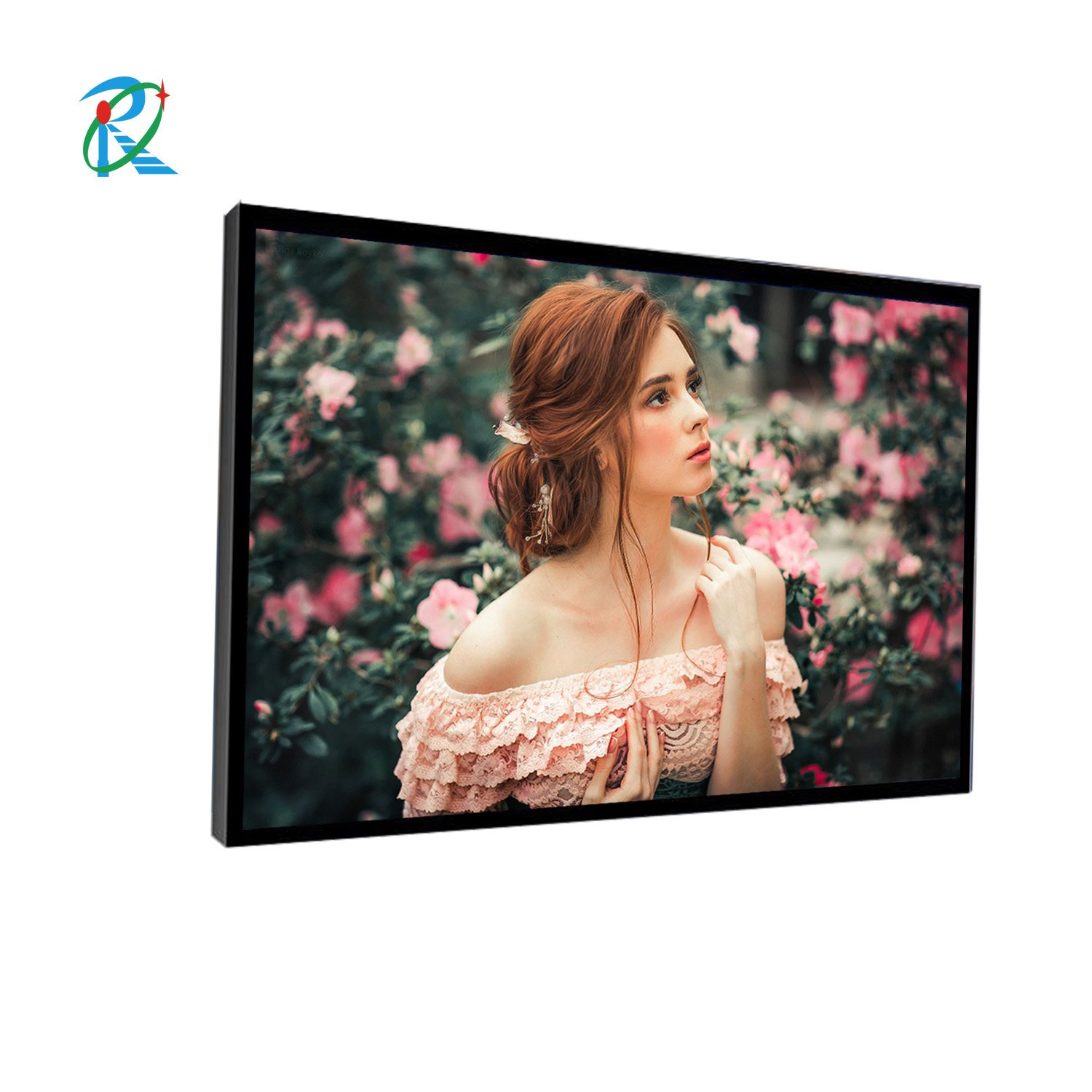

UHD 4K 55 inch sunlight readable 2500nitsLCD display module
| Brand | Risinglcd |
| Model name | RS550ENT-N25 |
| Screen size | 55 " |
| Screen type | LCD Monitor |
| Resolution | 3840 2160 |
| Brightness (cd/m²) | 2500(RGB) |
55inch 2500nits high brightness lcd display module use LG brand. widely used in industrial control displays, electronic class cards, new energy charging piles, express cabinets, outdoor handheld control panels, car custom screens, tankers, etc. All of these devices are special depend on the high brightness.
Risingstar 55inch 3840*2160 lcd module ,Brightness 500-5000nits Outdoor High Light LCD Screen From China , LVDS,IPS, LCD Display Screen,The Brightness Can Be Customized.As one high resolution screen enterprises in China, we warmly welcome you to wholesale bulk cheap 55inch lcd module, high resolution screen made in China here and get quotation from our factory. All customized products are with high quality and competitive price.
Size | 55inch | |||
Panel type | a-Si TFT-LCD | |||
View area | 1214.2 × 685.0 mm (H×V) | |||
Dispaly area | 1209.6 × 680.4 mm (H×V) | |||
Outline size | 1232 × 708.9 × 28.6 mm (H×V×D) | |||
Dispaly mode | IPS,Normally black,Transmissive | |||
Drive-screen Voltage | 12.V (Typ) | |||
Resolution | 3840*2160 , WXGA | |||
Display ratio | 16:9 | |||
Display brightness | 500- 5000cd/m2 | |||
Constrast Ratio | 2000:1 | |||
View angle | 89/89/89/89 | |||
Display color | 16.7M , 68% NTSC | |||
Working freqyency | 60Hz | |||
Surface Treatment | Haze ,Hard coating(3H) | |||
Light source type | WLED | |||
Backlight lifetime | 50000 hrs | |||
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

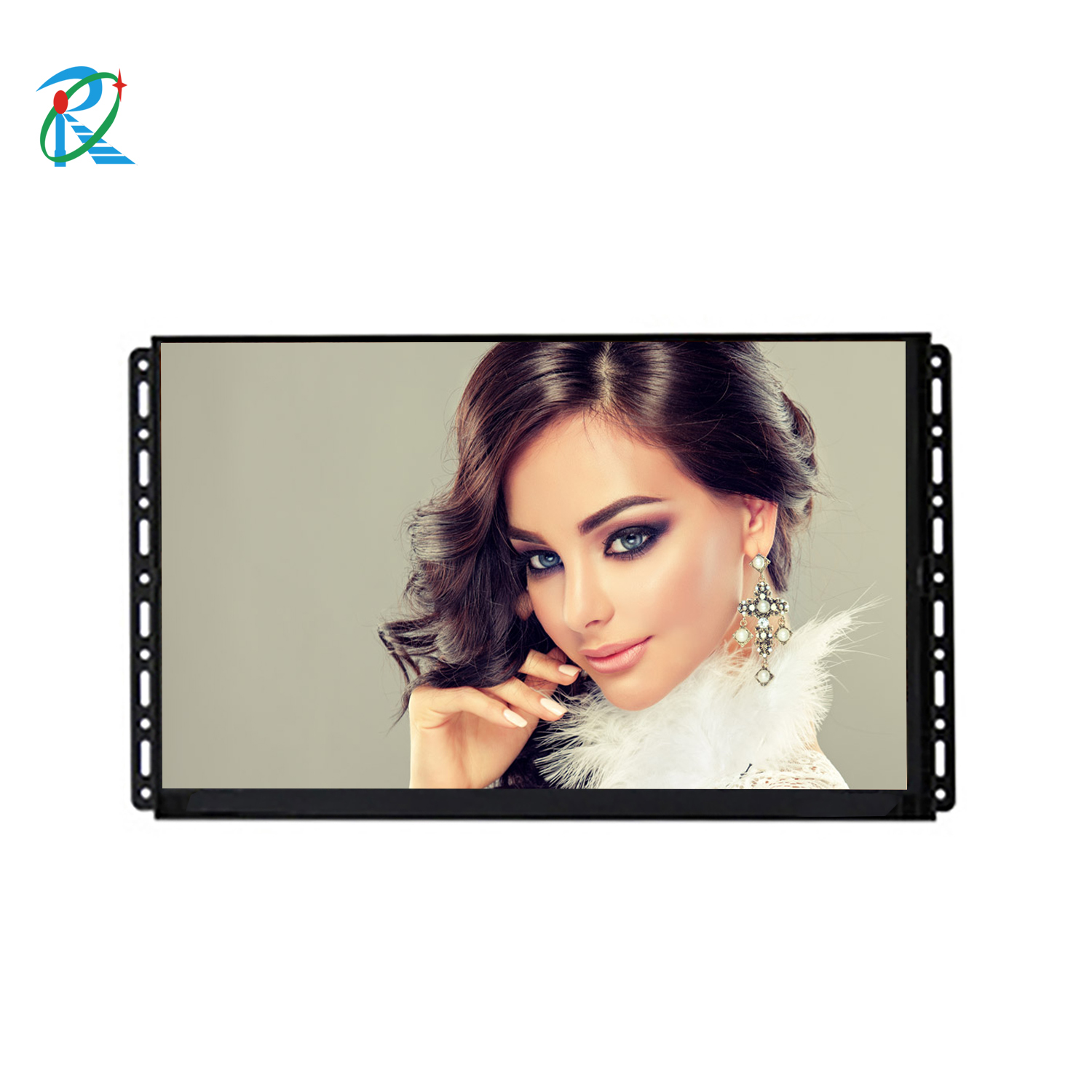

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
