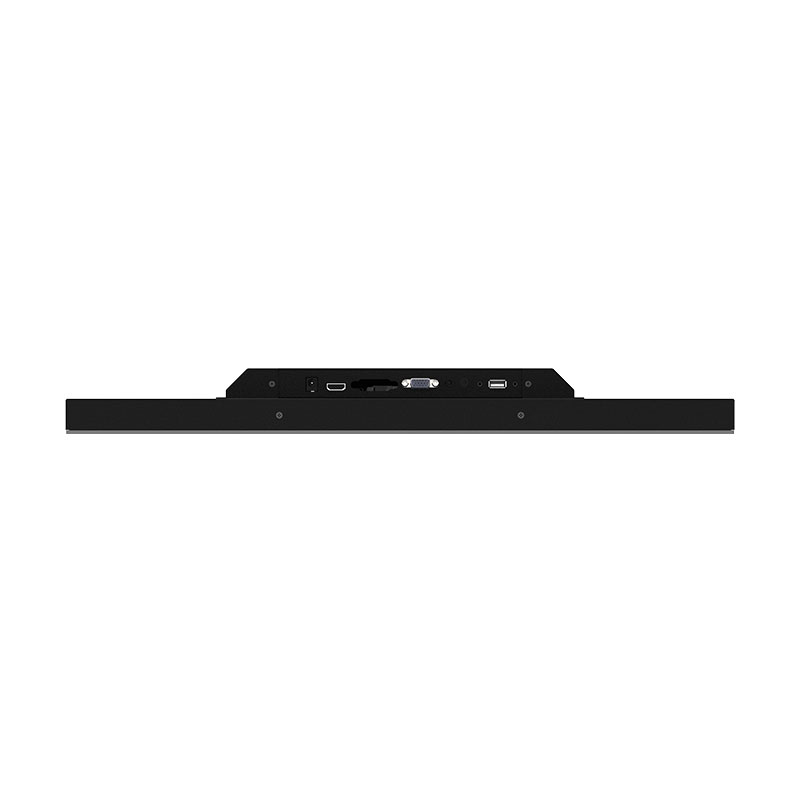

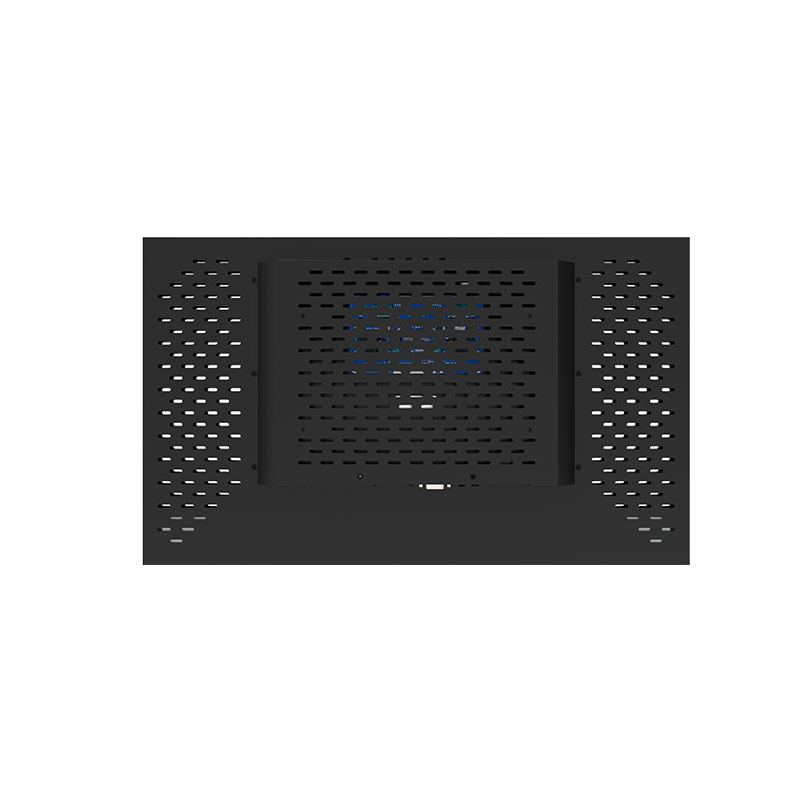

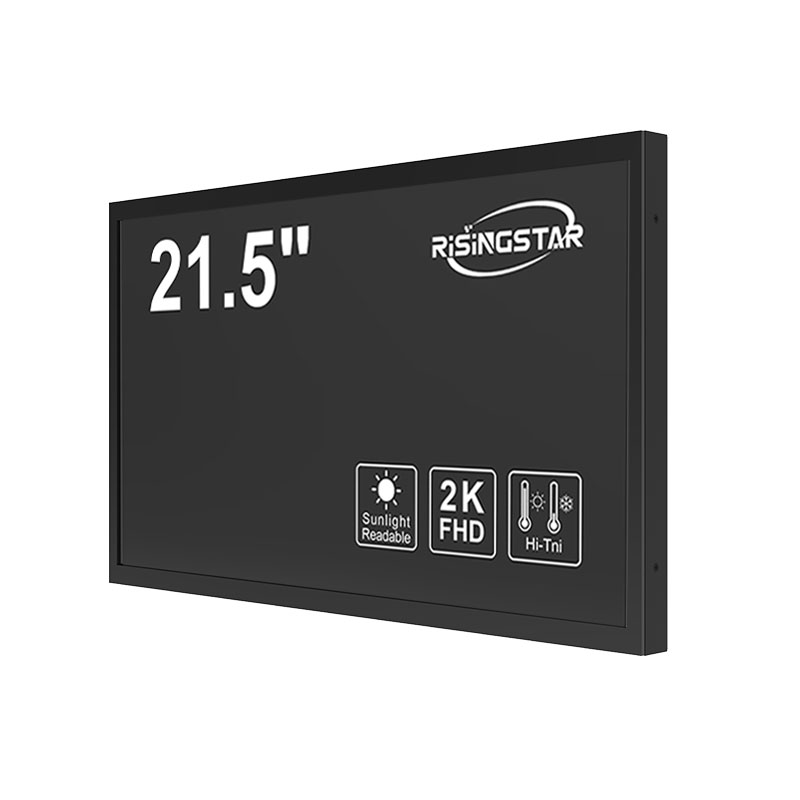

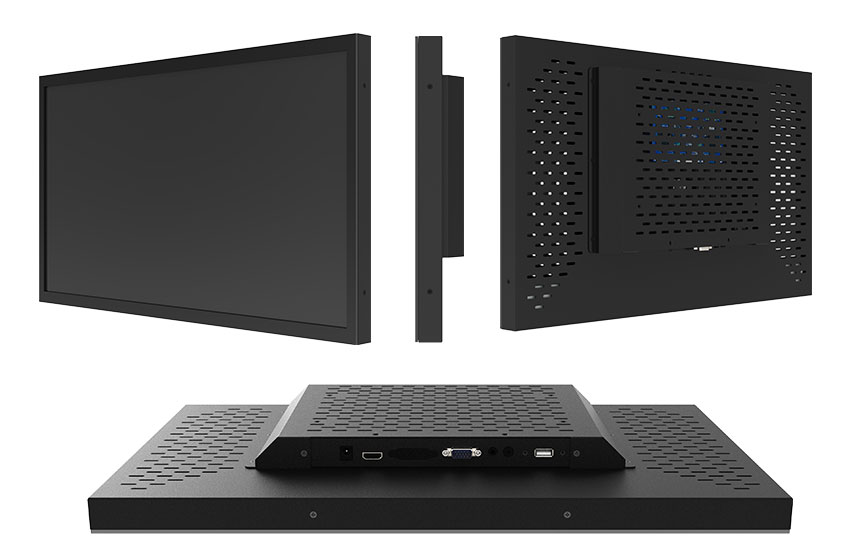

21.5 Inch Open Frame LCD Monitor
| Brand | RisingStar |
| Model name | RS215MNX03D01-BK |
| Screen size | 21.5" |
| Screen type | open frame monitor |
| Resolution | 1920(RGB)×1080 |
| Brightness | 1000 to 5000 |
Key Features
High brightness: 2500 nits, sunlight readable
LED Backlight with long lifespan
Wide viewing angle: 178° horizontal / 178° vertical
Wide operation temperature: -20 ~ 70 °C
LCD blacking defect free
Low power consumption
Backlight MTBF: 50,000 hours
Intelligent temperature control system with active heat dissipation
PCAP touch with 3mm tempered glass OCR
Specifications
| Parameter | Details |
|---|---|
| Model Name | RS215FNX01D01-BK |
| Screen Size | 21.5" |
| Display Area (mm) | 478.656 (H) x 260.28 (V) |
| Brightness | 2500 cd/m² |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.2493 (H) x 0.241 (V) |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Color Saturation (NTSC) | 73% |
| Display Colors | 16.7M |
| Response Time | 20 ms (Typ., Tr/Td) |
| Input Interface | USB TOUCH x1, EARPHONE OUT x1, AUDIO IN x1, VGA x1, DVI x1, HDMI x1, DC IN x1 |
| OSD Key | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Glass | 3mm Tempered Glass OCR |
| Touch Type | PCAP |
| Input Power | DC12V~10A |
| Power Consumption | 70W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 518.5 x 310.5 x 51.8 |
| Mounting | 100 x 100 mm (Screws metric M4) |
| Weight | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Specifications
| Parameter | Details |
|---|---|
| Model Name | RS215FNX01D01-BK |
| Screen Size | 21.5" |
| Display Area (mm) | 478.656 (H) x 260.28 (V) |
| Brightness | 2500 cd/m² |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.2493 (H) x 0.241 (V) |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Color Saturation (NTSC) | 73% |
| Display Colors | 16.7M |
| Response Time | 20 ms (Typ., Tr/Td) |
| Input Interface | USB TOUCH x1, EARPHONE OUT x1, AUDIO IN x1, VGA x1, DVI x1, HDMI x1, DC IN x1 |
| OSD Key | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Glass | 3mm Tempered Glass OCR |
| Touch Type | PCAP |
| Input Power | DC12V~10A |
| Power Consumption | 70W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 518.5 x 310.5 x 51.8 |
| Mounting | 100 x 100 mm (Screws metric M4) |
| Weight | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
