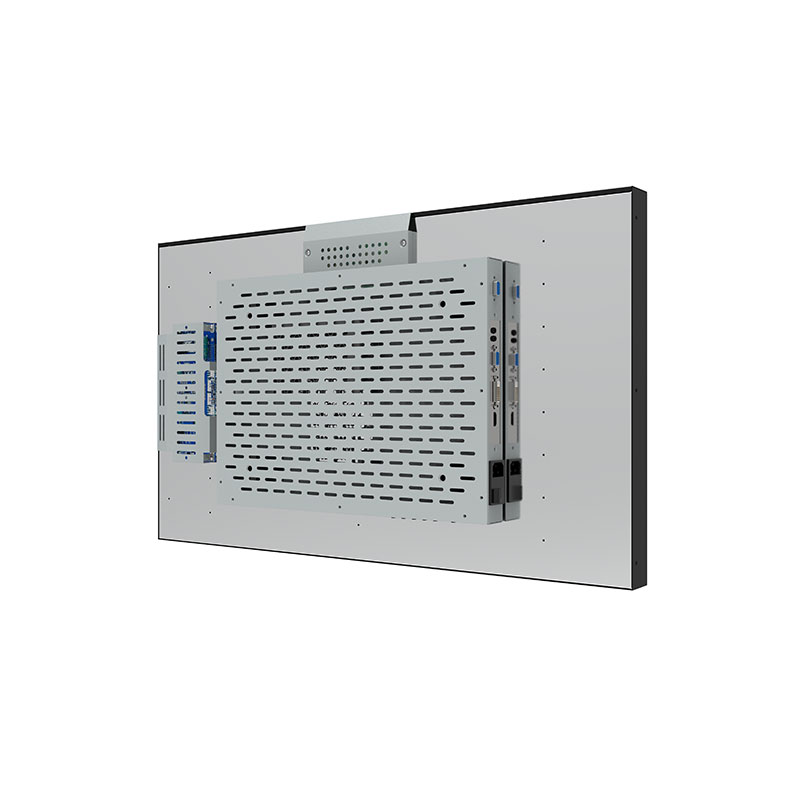

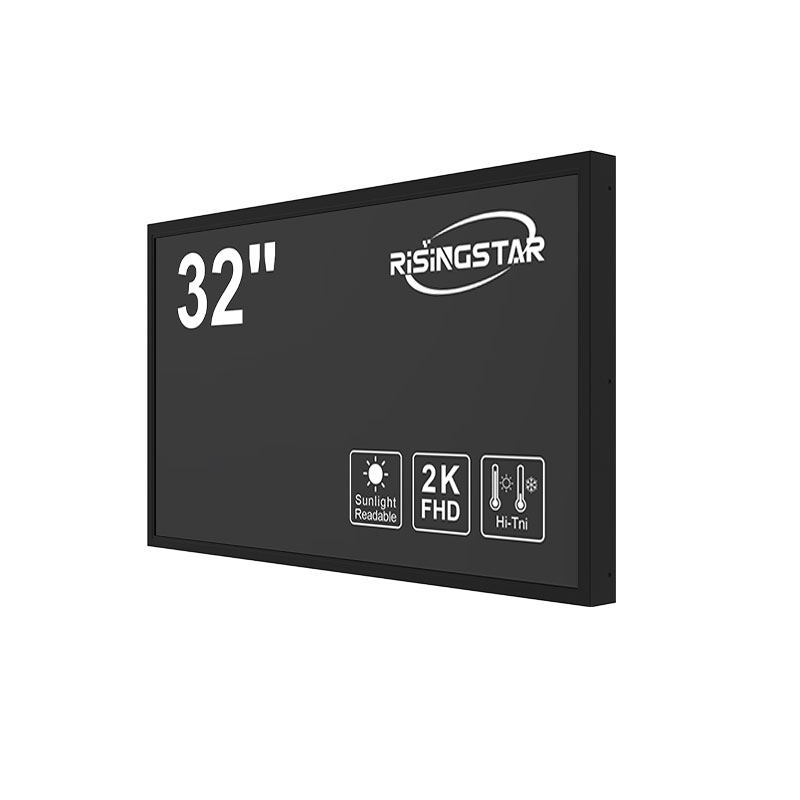

32 Inch High Brightness Open Frame LCD Monitor

32 Inch High Brightness Open Frame LCD Monitor

BrandRisingstar
Model nameRS320FNX01D04-BK
Screen size27"
Screen typeOpen frame monitor
Resolution1920(RGB)×1080
Brightness (cd/m²)2500
Overview Specifications Customized Services Support & Shipping

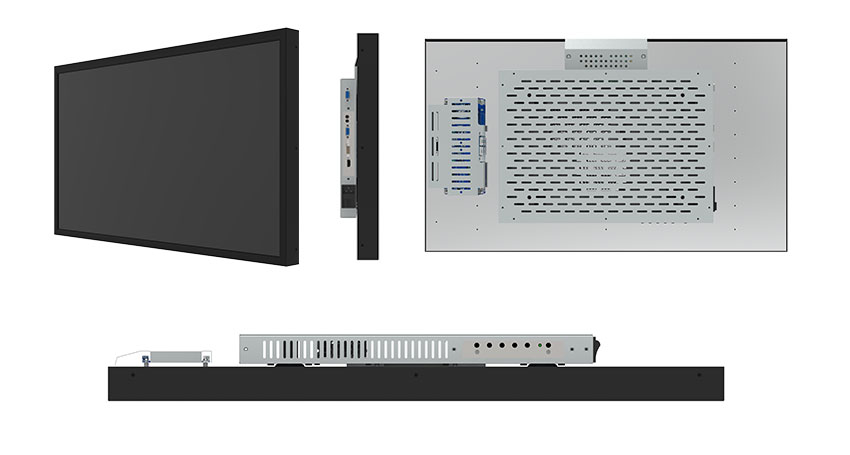

32-inch-open-frame-display

Key Features

  • High brightness: 1000 nits

  • Sunlight readable

  • LED backlight

  • Wide viewing angle: 178° (H) / 178° (V)

  • Wide operation temperature: -20 ˚C ~ 60 ˚C

  • LCD blacking defect free

  • Low power consumption

  • BL MTBF: 50,000 hours

  • Intelligent temperature control system with active heat dissipation

Specifications

SpecificationDetails
Model NameRS320FNX01D04-BK
Screen Size32"
Display Area (mm)698.4 (H) × 392.85 (V)
Brightness1000 cd/m²
Resolution1920 × 1080
Aspect Ratio16 : 9
Contrast Ratio1200 : 1
Pixel Pitch (mm)0.36375 (H) × 0.36375 (V)
Viewing Angle89/89/89/89 (Min., CR≥10)
Color Saturation (NTSC)72%
Display Colors16.7M
Response Time (ms)8 (Typ., Tr/Td)

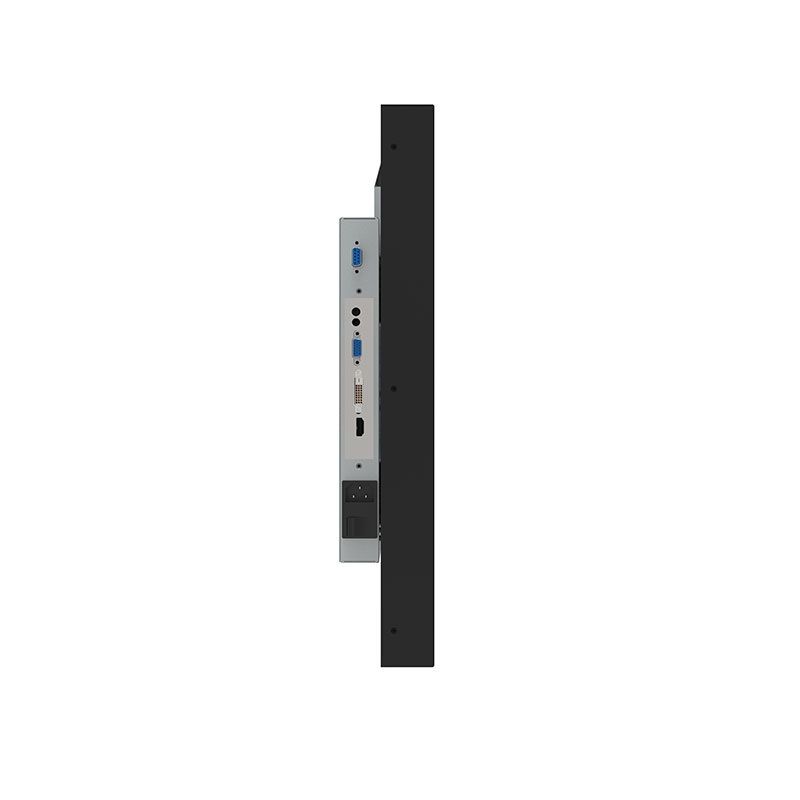

Input InterfaceUSB Touch ×1, Earphone Out ×1, Audio In ×1, VGA ×1, DVI ×1, HDMI ×1, AC IN ×1
OSD KeyAUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER
Glass6MM Tempered Glass OCR
Touch TypePCAP
Input PowerAC 200-240V
Power Consumption60W
Radiator SystemAutomatic heat dissipation
Dimensions (mm)754.5 × 448.5 × 66
Mounting100 × 100 mm screws, metric M4
Weight (Net)16.5 kg
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS320FNX01D04-BK 27 inch high brightness display 27 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

Specifications

SpecificationDetails
Model NameRS320FNX01D04-BK
Screen Size32"
Display Area (mm)698.4 (H) × 392.85 (V)
Brightness1000 cd/m²
Resolution1920 × 1080
Aspect Ratio16 : 9
Contrast Ratio1200 : 1
Pixel Pitch (mm)0.36375 (H) × 0.36375 (V)
Viewing Angle89/89/89/89 (Min., CR≥10)
Color Saturation (NTSC)72%
Display Colors16.7M
Response Time (ms)8 (Typ., Tr/Td)
Input InterfaceUSB Touch ×1, Earphone Out ×1, Audio In ×1, VGA ×1, DVI ×1, HDMI ×1, AC IN ×1
OSD KeyAUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER
Glass6MM Tempered Glass OCR
Touch TypePCAP
Input PowerAC 200-240V
Power Consumption60W
Radiator SystemAutomatic heat dissipation
Dimensions (mm)754.5 × 448.5 × 66
Mounting100 × 100 mm screws, metric M4
Weight (Net)16.5 kg
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
