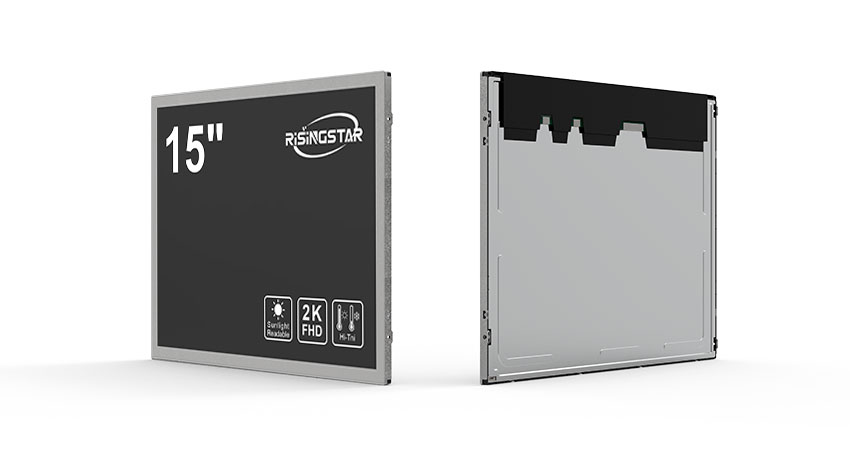

15.0-inch TFT-LCD panel specifications, including explanation and applications:
| Specification | Details |
|---|---|
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 1024 (RGB) × 768, XGA, 85 PPI, RGB vertical stripe |
| Active Area (AA) | 304.128 mm (W) × 228.096 mm (H) |
| Outline/Opening Area | 307.4 mm (W) × 231.3 mm (H) |
| Surface Treatment | Matte, Hard Coating 3H |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Recommended Viewing Angle | 6 o'clock |
| Response Time | 2/6 ms (Typ.) (Tr/Td) |
| Viewing Angle (CR≥10) | L/R/U/D: 75° / 75° / 70° / 75° (Typ.) |
| Display Mode | TN, Normally White, Transmissive |
| Supported Colors | 16.7M, 60% NTSC |
| Backlight Type | CCFL [2 pcs], 50,000 hrs, no driver |
| Weight | 1.0 kg (Typ.) |
| Frame Rate | 60Hz; MEMC support: 120Hz (60Hz input), 120Hz+120Hz, 240Hz (60Hz input) |
| Interface | 20-pin LVDS (1 ch, 8-bit) connector |
| Power Supply | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
| Applications | Industrial displays, human-machine interfaces (HMI), industrial control panels, embedded systems |
High Brightness & Wide Temperature: With 500–5000 nits and -20~70°C operation, this panel suits outdoor and industrial environments.
Durable Surface: Matte finish with 3H hard coating ensures minimal glare and scratch resistance.
Industrial Grade: CCFL backlight with 50,000-hour lifespan and robust TN panel make it ideal for long-term industrial use.
Versatile Interfaces: LVDS interface supports easy integration into embedded and industrial systems.
Industrial automation and control panels
HMI (Human-Machine Interface) in factories
Embedded systems requiring robust, reliable displays

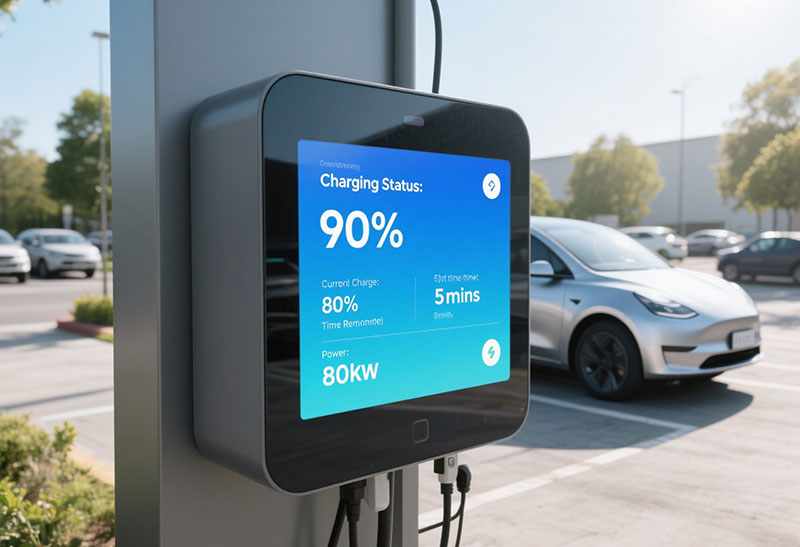

Outdoor or semi-outdoor industrial displays with variable lighting conditions
| Specification | Details |
|---|---|
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 1024 (RGB) × 768, XGA, 85 PPI, RGB vertical stripe |
| Active Area (AA) | 304.128 mm (W) × 228.096 mm (H) |
| Outline/Opening Area | 307.4 mm (W) × 231.3 mm (H) |
| Surface Treatment | Matte, Hard Coating 3H |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Recommended Viewing Angle | 6 o'clock |
| Response Time | 2/6 ms (Typ.) (Tr/Td) |
| Viewing Angle (CR≥10) | L/R/U/D: 75° / 75° / 70° / 75° (Typ.) |
| Display Mode | TN, Normally White, Transmissive |
| Supported Colors | 16.7M, 60% NTSC |
| Backlight Type | CCFL [2 pcs], 50,000 hrs, no driver |
| Weight | 1.0 kg (Typ.) |
| Frame Rate | 60Hz; MEMC support: 120Hz (60Hz input), 120Hz+120Hz, 240Hz (60Hz input) |
| Interface | 20-pin LVDS (1 ch, 8-bit) connector |
| Power Supply | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
| Applications | Industrial displays, human-machine interfaces (HMI), industrial control panels, embedded systems |
