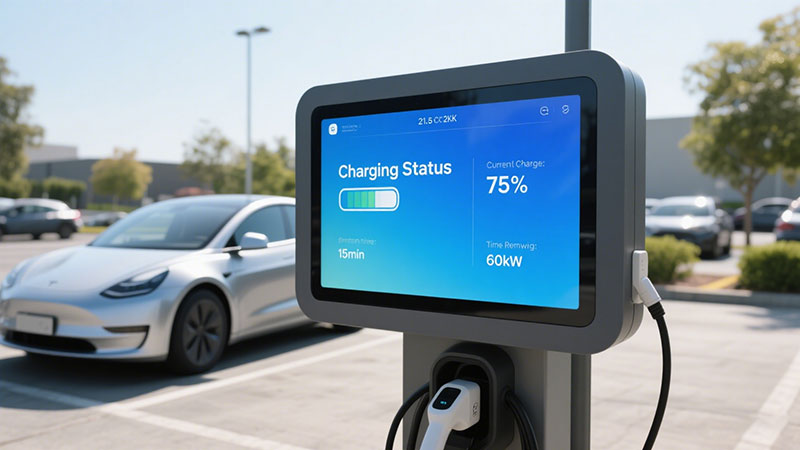

18.5" Industrial Ultra High Brightness Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
18.5" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS185ENT-GE05 | 500 | 1366×768 (WXGA), 84 PPI |
| RS185ENT-GE10 | 1000 | 1366×768 (WXGA), 84 PPI |
| RS185ENT-GE15 | 1500 | 1366×768 (WXGA), 84 PPI |
18.5-inch TFT-LCD Panel Specification
| Item | Specification |
|---|---|
| Panel Size | 18.5 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1366 (RGB) × 768 (WXGA), 84 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 409.8 (W) × 230.4 (H) mm |
| View Area (Bezel Opening) | 413.4 (W) × 234.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 13%), Hard Coating (3H) |
| Brightness | 500 ~ 1500 nits |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Recommended Viewing | Full Viewing Angle |
| Response Time | 6 ms (Typ.) (G to G) |
| Viewing Angle (CR ≥10) | 89/89/89/89 (Left/Right/Up/Down) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Panel Technology Notes | IPS Hard-Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Supported Colors | 16.7M, 68% NTSC |
| Backlight Type | WLED, 50,000 hours lifetime, Built-in LED Driver |
| Weight | 1.04 / 1.10 kg (Typ./Max.) |
| Application Product | TV |
| Frame Rate | 60 Hz |
| High-Refresh Notes | 120 Hz (60 Hz input) with built-in MEMC; 120 Hz + 120 Hz (panel + backlight); 240 Hz (60 Hz input) |
| Interface | 30-pin LVDS (1 ch, 8-bit), Connector |
| Supply Voltage | 5.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Description & Application
This 18.5-inch a-Si TFT-LCD panel is designed for versatile display applications requiring wide viewing angles, stable image performance, and long-term reliability. Featuring an S-IPS “normally black” transmissive mode, the panel delivers consistent color accuracy and excellent contrast even under off-axis viewing—making it ideal for environments where screens are frequently viewed from multiple directions.
With brightness ranging from 500 to 1500 nits, the display supports both indoor and high-brightness outdoor-adapted use cases. Its anti-glare surface (13% haze) and 3H hard coating improve durability and readability, while the WLED backlight offers a 50,000-hour lifespan and integrates the LED driver for simplified system design.
The panel supports up to 120 Hz/240 Hz solutions with MEMC and high-speed backlight modulation, making it suitable for smoother motion display requirements such as gaming TVs, information kiosks, or multimedia screens. The wide operating temperature range (–20 to 70°C) enhances its suitability for industrial and semi-outdoor environments.
With a lightweight structure (1.04–1.10 kg), LVDS 30-pin interface, and robust IPS technology, this panel is commonly used in:
Consumer televisions
Information displays
Industrial monitors
Control panels
Advertising and signage displays
Embedded display systems
18.5-inch TFT-LCD Panel Specification
| Item | Specification |
|---|---|
| Panel Size | 18.5 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1366 (RGB) × 768 (WXGA), 84 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 409.8 (W) × 230.4 (H) mm |
| View Area (Bezel Opening) | 413.4 (W) × 234.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 13%), Hard Coating (3H) |
| Brightness | 500 ~ 1500 nits |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Recommended Viewing | Full Viewing Angle |
| Response Time | 6 ms (Typ.) (G to G) |
| Viewing Angle (CR ≥10) | 89/89/89/89 (Left/Right/Up/Down) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Panel Technology Notes | IPS Hard-Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Supported Colors | 16.7M, 68% NTSC |
| Backlight Type | WLED, 50,000 hours lifetime, Built-in LED Driver |
| Weight | 1.04 / 1.10 kg (Typ./Max.) |
| Application Product | TV |
| Frame Rate | 60 Hz |
| High-Refresh Notes | 120 Hz (60 Hz input) with built-in MEMC; 120 Hz + 120 Hz (panel + backlight); 240 Hz (60 Hz input) |
| Interface | 30-pin LVDS (1 ch, 8-bit), Connector |
| Supply Voltage | 5.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
