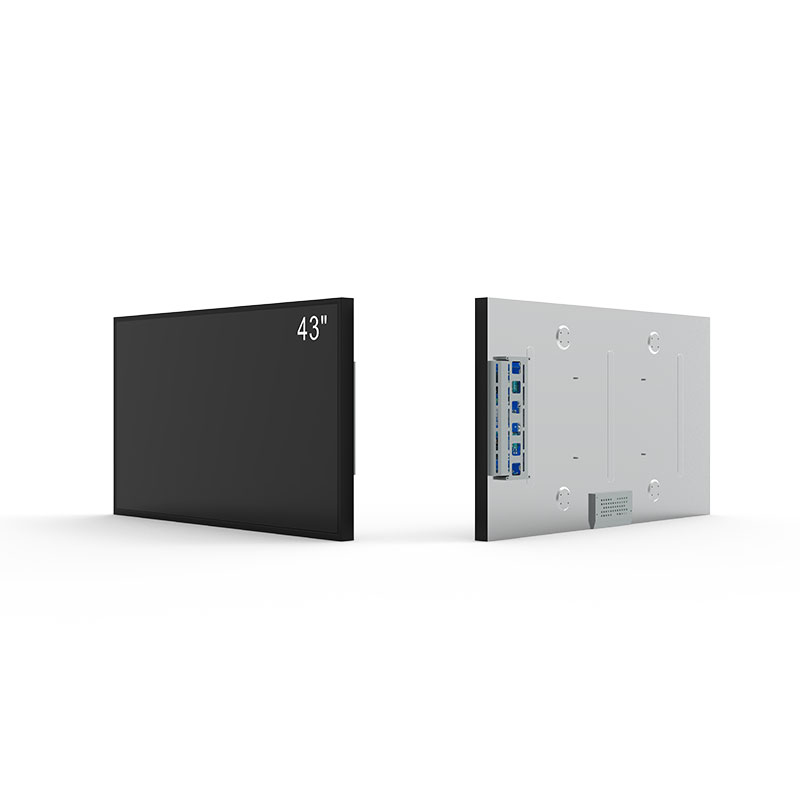

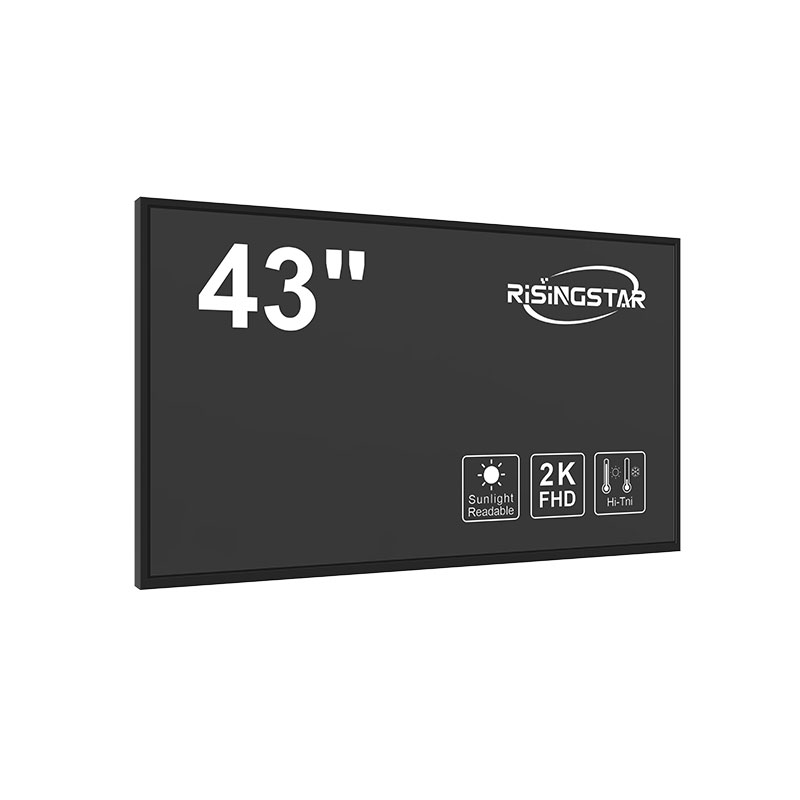

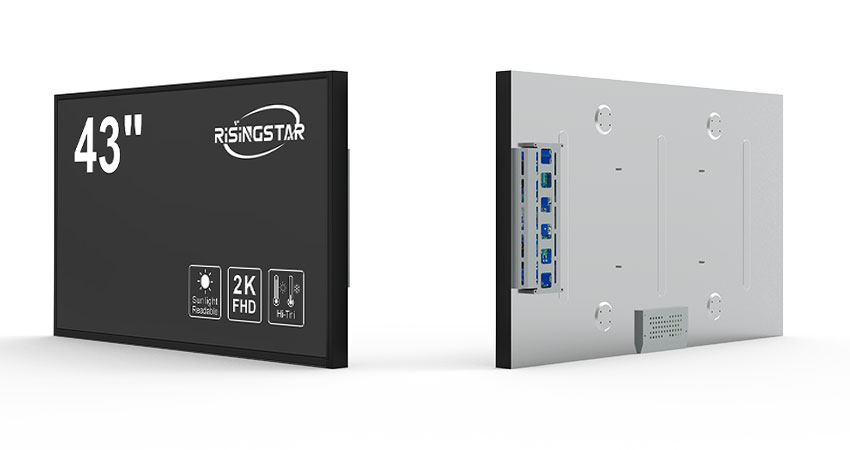

43" Industrial Ultra High Brightness LCD Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
43" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS430ENT-GD20 | 2000 | 1920×1080 / 3840×2160 |
| RS430ENT-GD25 | 2500 | 1920×1080 / 3840×2160 |
| RS430ENT-GD30 | 3000 | 1920×1080 / 3840×2160 |
| RS430ENT-GD35 | 3500 | 1920×1080 / 3840×2160 |
| RS430ENT-GD40 | 4000 | 1920×1080 / 3840×2160 |
| RS430ENT-GD45 | 4500 | 1920×1080 / 3840×2160 |
| RS430ENT-GD50 | 5000 | 1920×1080 / 3840×2160 |
43'' Industrial a-Si TFT-LCD Panel
| Category | Specification |
|---|---|
| Panel Size | 43 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920(RGB) × 1080 (FHD), 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 941.184(W) × 529.416(H) mm |
| Viewing Area | 945.8(H) × 534.02(V) mm |
| Brightness | 2000–5000 nits |
| Viewing Direction | All View |
| Viewing Angle (CR ≥10) | 89/89/89/89 (Left/Right/Up/Down) |
| Supported Colors | 16.7M colors, 68% NTSC |
| Weight | 7.50 kg (Typ.) |
| Frame Rate Options | 60Hz; 120Hz (60Hz input, built-in MEMC); 120Hz+120Hz (panel + backlight); 240Hz (60Hz input, MEMC) |
| Surface Treatment | Matte (Haze 1%), Hard Coating 3H |
| Contrast Ratio | 1100:1 (Typ., Transmission) |
| Response Time | 12 ms (Typ., Tr+Td) |
| Operating Mode | S-IPS, Normally Black, Transmissive |
| Compatible IPS Modes | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Mode Alternatives | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Backlight Type | WLED (2 strings), 50,000 hours, driver not included |
| Suitable Applications | Digital Signage |
| Interface Type | 51-pin LVDS (2-ch, 8-bit), Terminal |
| Power Supply Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Description & Application
This 43-inch a-Si TFT-LCD module is engineered for industrial and commercial display environments that require high brightness, long lifespan, and wide-format visual performance. With a peak brightness range up to 5000 nits, the panel remains clearly visible even in strong ambient light, making it suitable for sunlight-readable outdoor and semi-outdoor installations.
Its S-IPS technology provides superior color accuracy, consistent luminance, and ultra-wide viewing angles of 89° in all directions, ensuring reliable readability from any position. The matte surface with 3H hard coating reduces glare and enhances durability, offering stronger resistance to everyday wear in public areas.
Multiple frame-rate configurations, including MEMC-enhanced 120Hz and 240Hz modes, allow smooth content playback for advertising, video walls, retail media, and transportation information displays. The WLED backlight delivers 50,000 hours of service life, making it ideal for 24/7 operational settings.
With LVDS interface, robust temperature tolerance from –-20 ~ 70 °C, and compatibility with various IPS/VA technologies, this panel is widely used in:

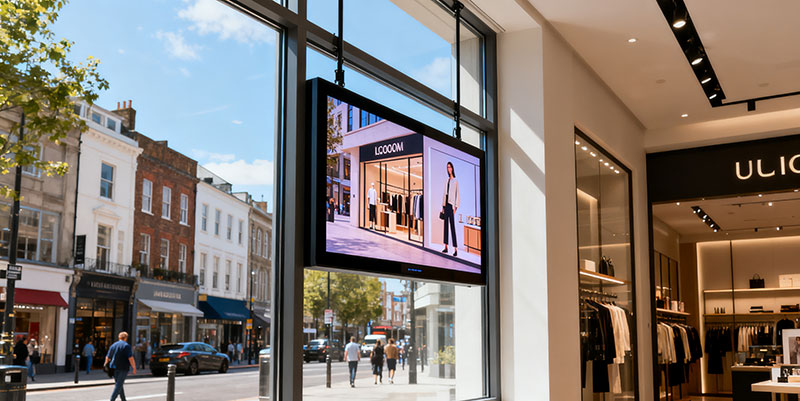

Outdoor and indoor digital signage
Retail advertising displays
Transit passenger information systems
Industrial HMI terminals
Corporate and commercial display boards
43'' a-Si TFT-LCD Panel)
| Category | Specification |
|---|---|
| Panel Size | 43 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920(RGB) × 1080 (FHD), 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 941.184(W) × 529.416(H) mm |
| Viewing Area | 945.8(H) × 534.02(V) mm |
| Brightness | 2000–5000 nits |
| Viewing Direction | All View |
| Viewing Angle (CR ≥10) | 89/89/89/89 (Left/Right/Up/Down) |
| Supported Colors | 16.7M colors, 68% NTSC |
| Weight | 7.50 kg (Typ.) |
| Frame Rate Options | 60Hz; 120Hz (60Hz input, built-in MEMC); 120Hz+120Hz (panel + backlight); 240Hz (60Hz input, MEMC) |
| Surface Treatment | Matte (Haze 1%), Hard Coating 3H |
| Contrast Ratio | 1100:1 (Typ., Transmission) |
| Response Time | 12 ms (Typ., Tr+Td) |
| Operating Mode | S-IPS, Normally Black, Transmissive |
| Compatible IPS Modes | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Mode Alternatives | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Backlight Type | WLED (2 strings), 50,000 hours, driver not included |
| Suitable Applications | Digital Signage |
| Interface Type | 51-pin LVDS (2-ch, 8-bit), Terminal |
| Power Supply Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
