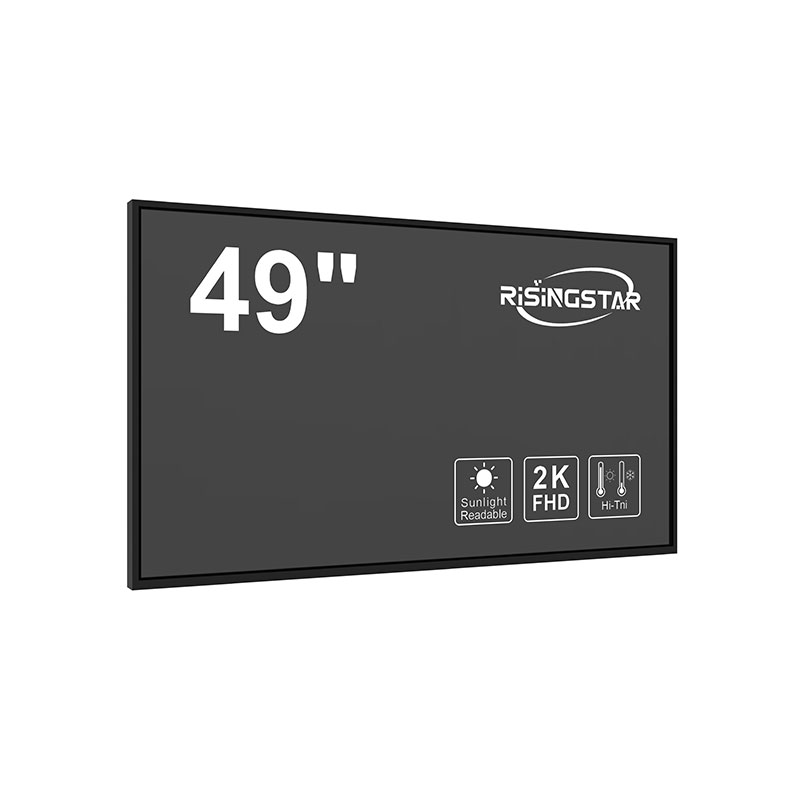

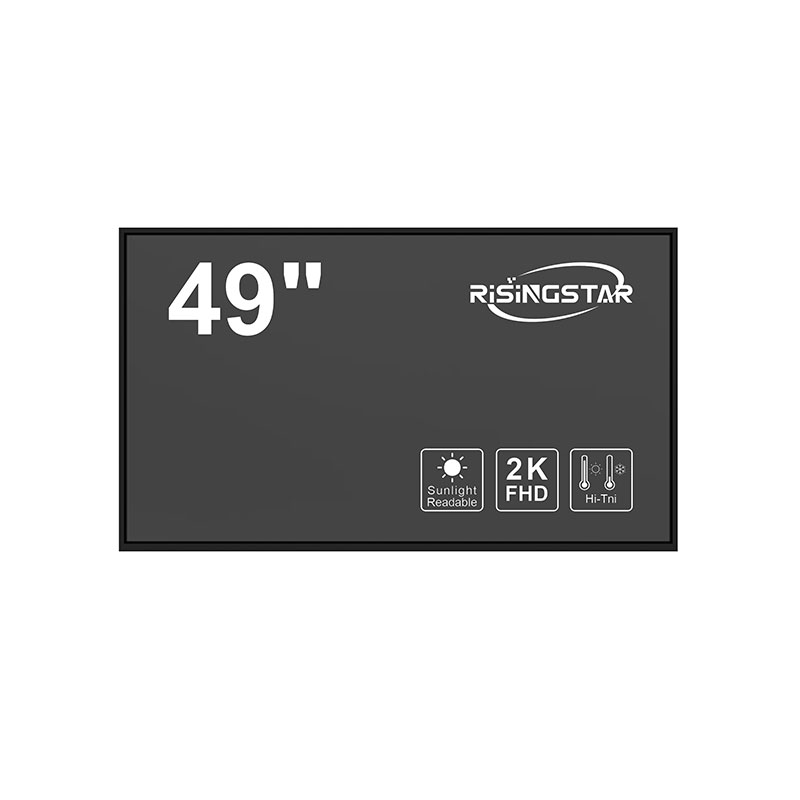

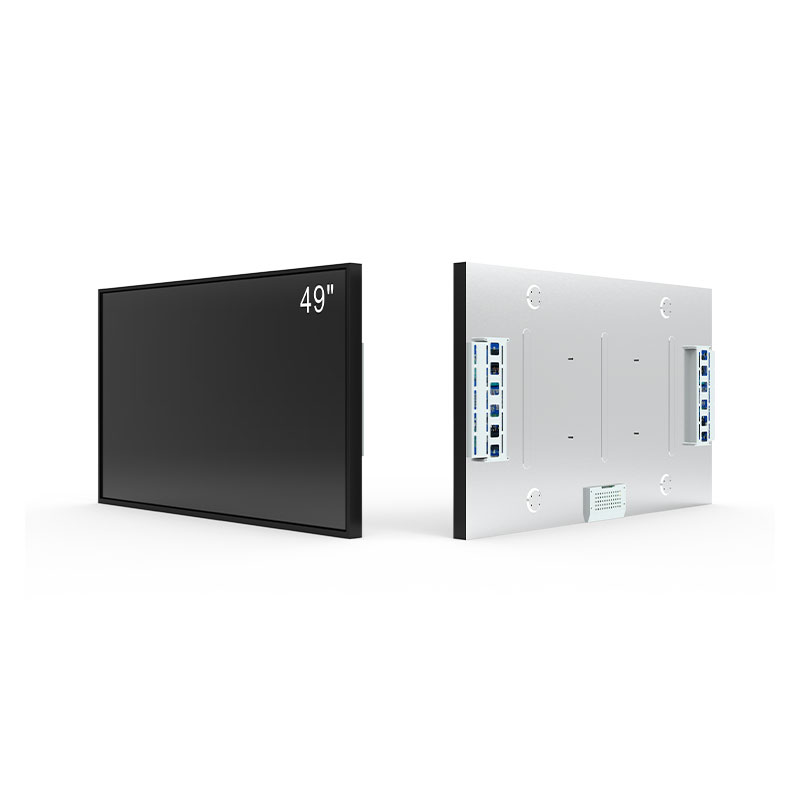

49" Industrial Ultra High Brightness LCD Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
49" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS490ENT-GD20 | 2000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD25 | 2500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD30 | 3000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD35 | 3500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD40 | 4000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD45 | 4500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD50 | 5000 | 1920×1080 / 3840×2160 |
Specification
| Parameter | Specification |
|---|---|
| Panel Size | 49.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 1073.78 × 604 mm |
| Visible Area (W×H) | 1078.6 × 609.5 mm |
| Surface Treatment | Anti-Glare (Haze 1%) |
| Brightness (cd/m²) | 2000 ~ 5000 |
| Contrast Ratio | 1200:1 (Typ., Transmissive) |
| Optical Mode | ADS, Normally Black, Transmissive |
| Viewing Angle (L/R/U/D) | 89° / 89° / 89° / 89° (Typ., CR≥10) |
| Response Time (Tr+Td) | 8 ms (Typ.) |
| Color Support | 16.7M colors, 68% NTSC |
| Backlight Type | WLED, 15,000 hours, with LED driver |
| Refresh Rate | 60Hz; 120Hz (60Hz input, MEMC built-in); 120Hz+120Hz; 240Hz (60Hz input, MEMC built-in) |
| Touch Function | None |
| Signal Interface | LVDS (2ch, 8-bit), 51 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
| Weight | 9.80 kg (Max.) |
| Applications | Digital Signage |
Description
This 49-inch a-Si TFT-LCD module features a Full HD (1920×1080) resolution with RGB vertical stripe pixel arrangement, delivering clear and vibrant images. With an anti-glare surface (Haze 1%) and adjustable brightness range from 2000 to 5000 cd/m², it is suitable for both indoor and semi-outdoor digital signage applications. The ADS optical mode ensures wide viewing angles (89° all around) and consistent color reproduction (16.7M colors, 68% NTSC). The module supports a variety of refresh rates and comes with a WLED backlight rated for 15,000 hours. Lightweight at 9.8 kg, this panel is ideal for high-brightness signage, advertising displays, and information boards. Operating temperature is -20 ~ 70 °C, making it suitable for controlled indoor environments.
Applications

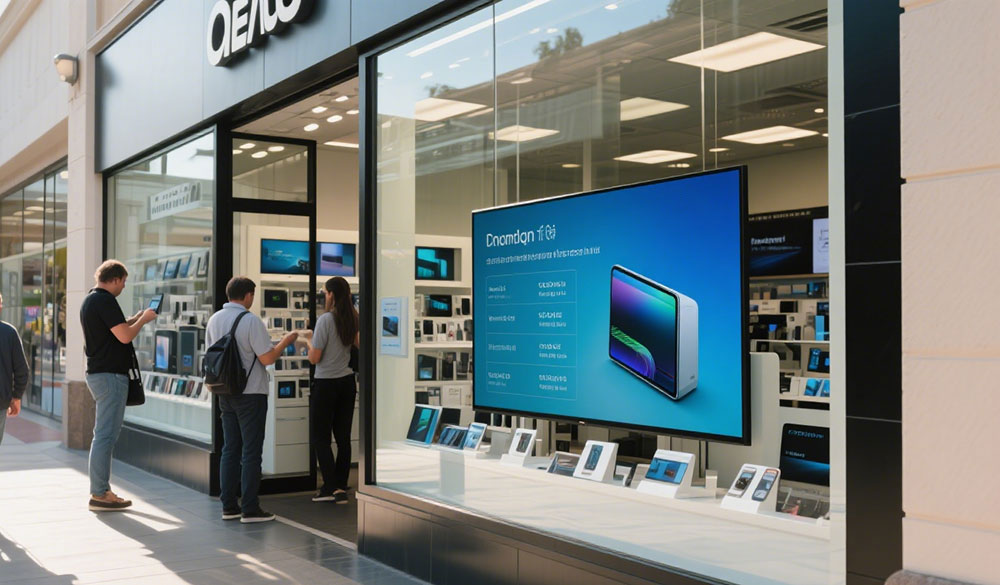

Digital Signage Displays – Airports, train stations, bus stops, shopping malls.
Advertising Screens – Retail stores, outdoor/indoor promotions.
Information Panels – Passenger information systems, wayfinding signage.
Control & Monitoring – Industrial or commercial monitoring displays in bright environments.
Specification Table (Excel Style)
| Parameter | Specification |
|---|---|
| Panel Size | 49.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 1073.78 × 604 mm |
| Visible Area (W×H) | 1078.6 × 609.5 mm |
| Surface Treatment | Anti-Glare (Haze 1%) |
| Brightness (cd/m²) | 2000 ~ 5000 |
| Contrast Ratio | 1200:1 (Typ., Transmissive) |
| Optical Mode | ADS, Normally Black, Transmissive |
| Viewing Angle (L/R/U/D) | 89° / 89° / 89° / 89° (Typ., CR≥10) |
| Response Time (Tr+Td) | 8 ms (Typ.) |
| Color Support | 16.7M colors, 68% NTSC |
| Backlight Type | WLED, 15,000 hours, with LED driver |
| Refresh Rate | 60Hz; 120Hz (60Hz input, MEMC built-in); 120Hz+120Hz; 240Hz (60Hz input, MEMC built-in) |
| Touch Function | None |
| Signal Interface | LVDS (2ch, 8-bit), 51 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
| Weight | 9.80 kg (Max.) |
| Applications | Digital Signage |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
