Specification
| Parameter | Specification |
|---|---|
| Panel Size | 55 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB) × 2160, UHD, 80 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 1209.6 × 680.4 mm |
| Viewable Area | - |
| Brightness | 500 ~ 5000 NITS |
| Viewing Angle | 89/89/89/89° (Typ.) (CR≥10) Left/Right/Up/Down |
| Viewing Direction | Full View |
| Display Colors | 1.07B, 74% NTSC |
| Refresh Rate | 60Hz 120Hz (60Hz input): built-in MEMC 120Hz+120Hz: 120Hz panel + 120Hz backlight 240Hz (60Hz input): built-in MEMC |
| Weight | 15.0 kg (Typ.) |
| Surface Treatment | Anti-glare (Haze 1%), Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Operating Mode | ADS, Normally Black, Transmissive IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ., G to G) |
| Backlight Type | WLED, 50,000 hours, includes LED driver |
| Touch Screen | None |
| Panel Application | Digital Signage, Outdoor High Brightness |
| Signal Interface | V-by-One 8 lane, 51 pins, Terminal |
| Driving Voltage | 12.0V (Typ.) |
| Operating Environment | Operating: -20 ~ 70 °C Storage: -20 ~ 60 °C |
Description:
This 55-inch a-Si TFT-LCD panel features UHD 3840×2160 resolution with 80 PPI, delivering ultra-high brightness from 500 up to 5000 nits. The display uses an RGB vertical stripe arrangement, providing sharp and vivid images with 1.07B colors and 74% NTSC coverage. With a wide viewing angle of 89° in all directions and a contrast ratio of 1200:1, this panel ensures clear visibility in various environments. Equipped with WLED backlight lasting up to 50,000 hours, it supports multiple refresh modes including 60Hz, 120Hz with MEMC, and 240Hz. The surface is anti-glare with 3H hard coating, and its ADS/IPS operating modes are suitable for digital signage and outdoor high-brightness applications.
Application:

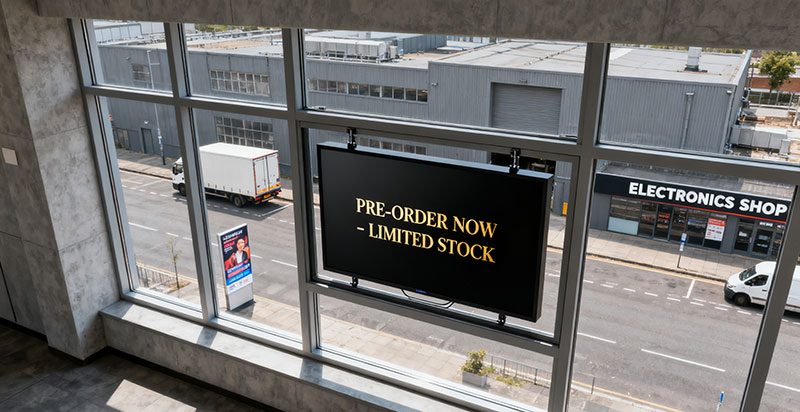

Outdoor digital signage in high-ambient-light areas
Retail and commercial advertising displays
Passenger information displays in transportation hubs
Industrial display systems requiring wide temperature tolerance (-20~70°C)
Any high-brightness, full-view-angle visual solution
| Parameter | Specification |
|---|---|
| Panel Size | 55 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB) × 2160, UHD, 80 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 1209.6 × 680.4 mm |
| Viewable Area | - |
| Brightness | 500 ~ 5000 NITS |
| Viewing Angle | 89/89/89/89° (Typ.) (CR≥10) Left/Right/Up/Down |
| Viewing Direction | Full View |
| Display Colors | 1.07B, 74% NTSC |
| Refresh Rate | 60Hz 120Hz (60Hz input): built-in MEMC 120Hz+120Hz: 120Hz panel + 120Hz backlight 240Hz (60Hz input): built-in MEMC |
| Weight | 15.0 kg (Typ.) |
| Surface Treatment | Anti-glare (Haze 1%), Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Operating Mode | ADS, Normally Black, Transmissive IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ., G to G) |
| Backlight Type | WLED, 50,000 hours, includes LED driver |
| Touch Screen | None |
| Panel Application | Digital Signage, Outdoor High Brightness |
| Signal Interface | V-by-One 8 lane, 51 pins, Terminal |
| Driving Voltage | 12.0V (Typ.) |
| Operating Environment | Operating: -20 ~ 70 °C Storage: -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
