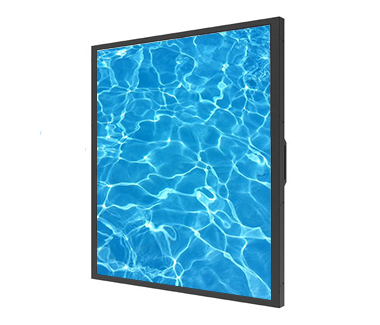

22 inch square LCD display for video wall

22 inch square LCD display for video wall

BrandLG/AUO/BOE
Model nameRS220E
Screen size22"
Screen typeRound and Square display
Resolution1920(RGB)×1920
Brightness (cd/m²)500
Overview Specifications Customized Services Support & Shipping

RS220ENT-NE05 is a square screen with BOE commercial grade LCD screen, 1920*1920 high resolution, 500 nits brightness, and 1000:1 contrast ratio, 1.5 mm Splicing Seam. This special size is ideal for big video wall. this square LCD screen could be used in wide public environments, including retail, restaurants (square digital menu boards), hotels, schools, hospitals.

- Ultra high brightness 500-1000 high brightness, customized as your request
.The proportion of special display ratio (1:1) screen reaches more than 90%
·Super narrow bezel to bezel measurents (around 3mm) provid a near seamless video wall.

High contrast ratio: 1000:1

.The product has stable performance and supports 7 * 24-hour uninterrupted work
·Plug in USB flash disk to play_The USB flash disk is encrypted, and the inserted USB flash disk is automatically copied to the local storage for video l picture playback

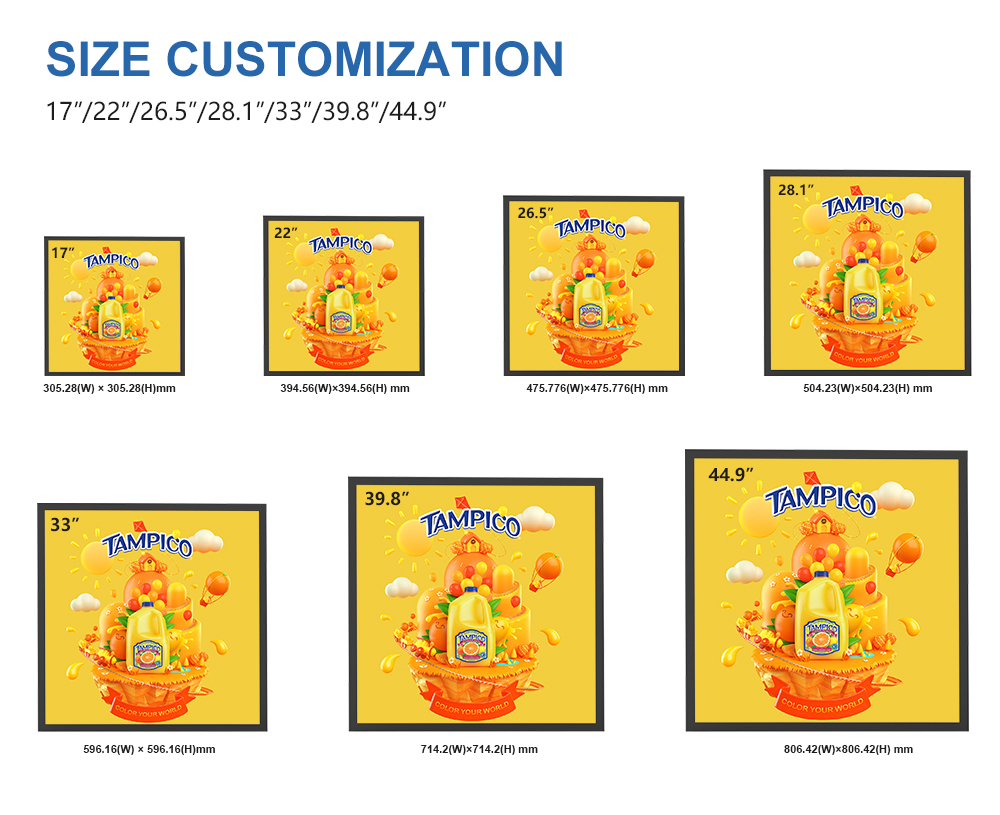

More square LCD screen are available, 17 inch, 22 inch, 26.5 inch, 33.2 inch, 39.8 inch, 44.9 inch.

square LCD display more sizes

RS220E 22 inch high brightness display 22 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal22 inch MDL
Model NoRS220ENT-NE05
Active Area 394.56(W)×394.56(H) mm
Pixels1920(RGB)×1920  123PPI
Physical Size409.56×409.56×12.6 (H×V×D)
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 1000:1 (Typ.)
Optical Response Time8 (Typ.)(G to G)
Splicing Seam15.0 mm (active to active seam)
Signal TypeLVDS (4 ch, 8-bit) , Connector 92 pins
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Support Color 16.7M, 72%  NTSC
Surface Treatment Antiglare (Haze 25%), Hard coating (3H)
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
