Here is a professional ‌English specification table‌ for the ‌RisingStar RS320QU1-ND15 8K Outdoor High Brightness LCD Module‌:

‌Key Highlights‌:

• ‌Ultra-High Resolution‌: 8K (7680×4320) clarity for immersive visual experiences.

• ‌Outdoor Durability‌: 1500 cd/m² brightness ensures sunlight readability and outdoor adaptability.

• ‌Magic Mirror Functionality‌: Dual-use design for interactive displays and mirrored surfaces.

• ‌Robust Build‌: IPS hard screen with wide viewing angles (89°/89°/89°/89°).

• ‌Application Versatility‌: Ideal for digital signage, outdoor advertising, conference rooms, and interactive public displays.

‌

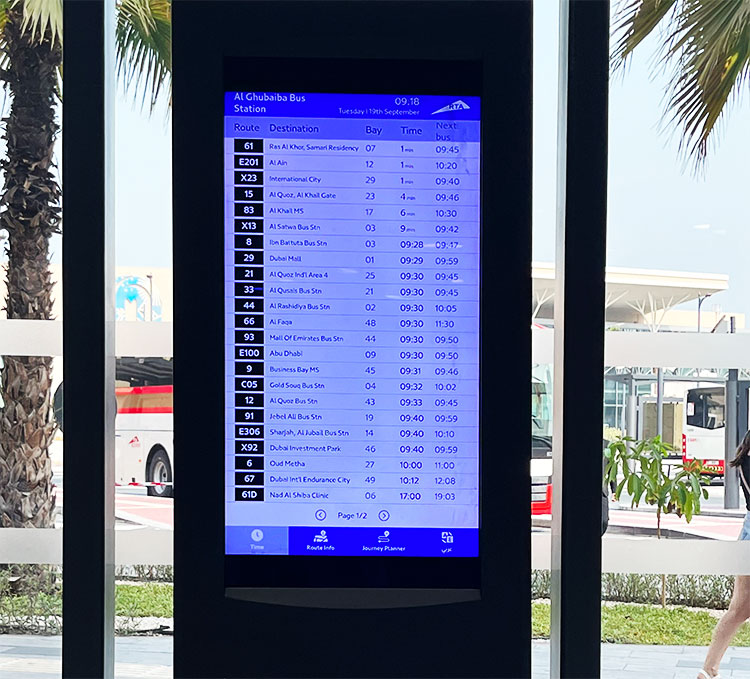

32 Inch High Brightness LCD Display in Outdoor Environments

Research on the application of high brightness LCD display in outdoor environment‌

Digital display technology is developing faster and faster, and high brightness LCD display has gradually become an important carrier for outdoor information dissemination. This paper analyzes the lighting characteristics of outdoor environment and LCD technical parameters to explore key technologies such as anti-reflection technology, temperature adaptation mechanism, and energy consumption optimization scheme of high-brightness display.

‌I. Technology of outdoor display environment

‌1. Natural light interference‌

The light intensity in outdoor environment can reach 100,000 lux (midday sunlight), which is far higher than the indoor illumination (usually <500 lux). The contrast of ordinary display screens (500-1000 nits) drops by 90% under direct sunlight, causing serious visibility problems.

‌2. Extreme temperature influence‌

The operating temperature range must meet -30℃ to +60℃. The response speed of liquid crystal materials decreases by 42% at low temperatures. High temperature environment accelerates the aging of backlight modules and shortens the life of LED light sources by about 30%.

‌3. Dynamic energy management‌

When operating at continuous high brightness (2500 nits), energy consumption can reach 5-8 times that of indoor mode, and the efficiency of conventional cooling solutions is reduced by 60%.

‌II. Core technology solutions‌

‌

1. Using triple composite brightness enhancement technology:

Full array direct backlight (FALD) partition control technology to achieve 2000-4000 nits brightness output

Double-layer brightness enhancement film (DBEF) improves light efficiency utilization to 85%

Dynamic dimming algorithm automatically adjusts according to ambient light (±15% accuracy)

‌2. Anti-reflection treatment‌

Surface etching process to produce micro-structure anti-glare layer, reflectivity <2.5%

Polarized light compensation film reduces mirror reflection by 60%

Nano AR coating expands viewing angle to 178°

‌3. Thermal management system‌

Equipped with intelligent temperature control components:

The thermal conductivity of the copper-based heat spreader is 400 W/(m·K)

The power consumption of the variable frequency fan system is reduced by 40%

Phase change energy storage material (PCM) can maintain normal startup at -20℃

‌4. Environmental adaptation technology ‌

IP65 protection level dustproof and waterproof structure design

Self-cleaning hydrophobic coating contact angle >110°

Vibration compensation mechanism ensures 0.2mm level pixel stability

High Brightness LCD Display in Outdoor Environments Application Video

Are there any limitations to using high brightness LCD displays in very bright outdoor environments?

There are many limitations to using high brightness LCD displays in extremely bright outdoor environments. First, they consume a lot of energy and require more power to maintain high brightness, which is not friendly to portable devices. Second, high-brightness components are prone to heat generation, which affects performance and life under high temperatures. Third, color accuracy may decrease and colors tend to appear pale. In addition, the viewing angle is limited, and the viewing effect varies greatly from different angles. Finally, their manufacturing cost and selling price are high, which increases the cost of use and the economic burden.
