    23.6" 1000 nits ips and va high brightness LCD monitor China

    2021-11-04 16:12:43  News

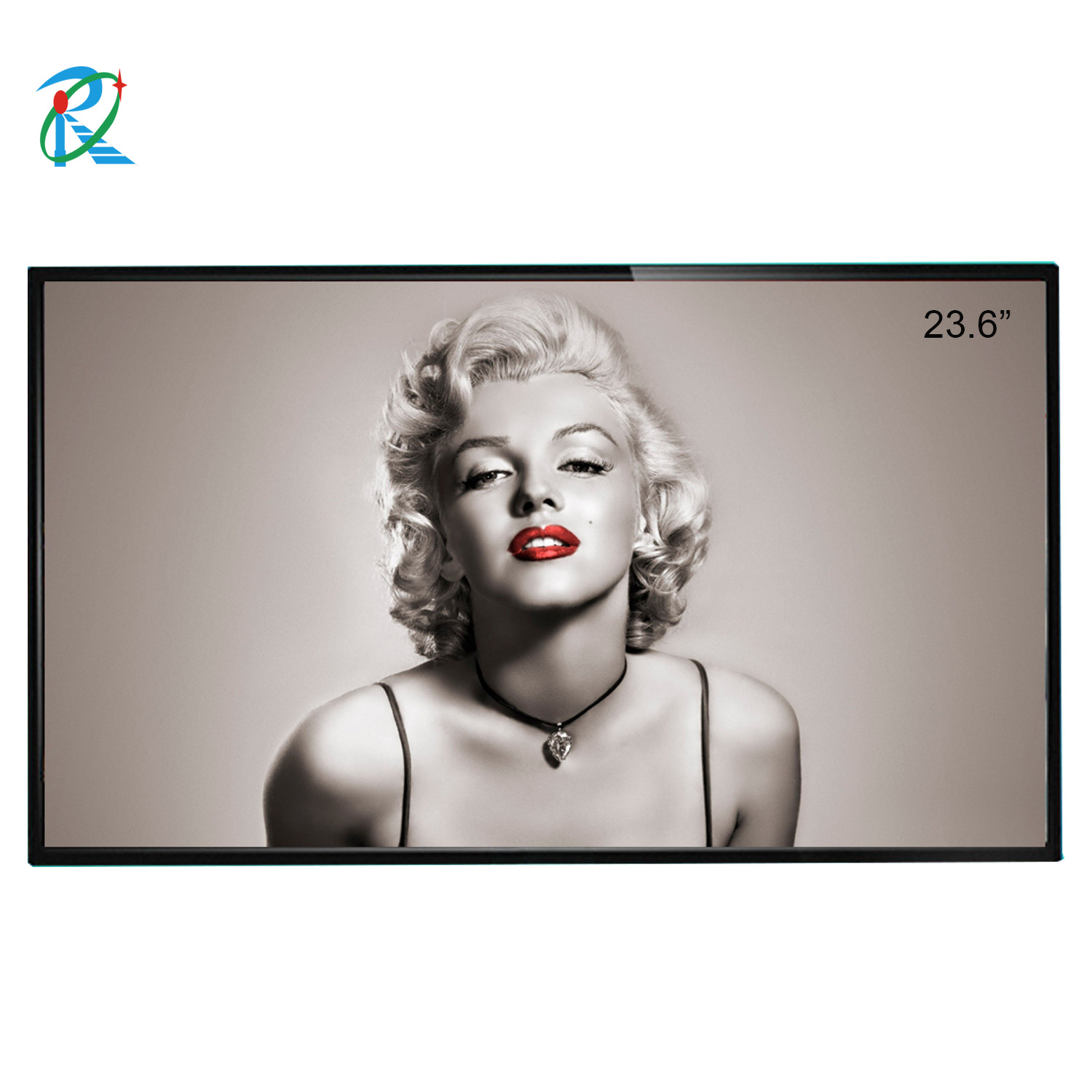

    Risinglcd 23.6-inch high-brightness LCD monitor, high-brightness LCD screen, product features: high brightness, low power consumption, backlight design is double-sided led backlight, separate backlight driver board, support automatic dimming, pwm dimming, manual knob adjustment Light, brightness 500 to 1500 nits, this product commonly used LCD panel brands: BOE, Innolux, AUO, and can also customize products according to customer requirements.

    23

    Risinglcd high-brightness LCD screen sizes are: 10.1"/12.1"/13.3"/14"/15"/15.6"/17"/18.5"/19"/19.5"/21.5"/22"/23"/24"/ 27"/29"/32" and above are the company's small size LCD screens, large size 32 to 120 inches, please contact the staff for detailed size.

    Panel brand Risinglcd; Panel model RS236ENT-EN10;

    Panel size 23.6 inches; Panel type a-Si TFT-LCD, LCD module;

    Number of pixels 1920(RGB)×1080, FHD, 93PPI; pixel layout RGB vertical strip;

    Display area 521.28 (width) × 293.22 (height) mm; viewing area 525.22 (width) × 297.22 (height) mm;

    Appearance size 544.8 (width) × 320.5 (height) × 11.5 (thickness) mm; matte surface treatment (Haze 25%), Hard coating (3H);

    Panel brightness 1000 cd/m² (Typ.); Contrast ratio 3000:1 (Typ.) (TM);

    Viewing angle 89/89/89/89 (Typ.); working mode Super MVA, normally black display, transmissive;

    Best viewing angle full viewing angle reaction time 20 (Typ.)(G to G) ms;

    Display color 16.7M, 72% NTSC; light source type 4 strings WLED, 40K hours, without driver;

    Working frequency 60Hz; panel weight 2.31±0.11Kgs panel application display;

    Signal interface LVDS (2 ch, 8-bit), 30 pins, terminal;

    Driver screen voltage 5.0V (Typ.);

    Working environment: 0 ~ 50 °C; storage: -20 ~ 60 °C;

    Place of Origin: Shenzhen, Guangdong, China
