LH75OMAEBGBXZA Samsung 75" outdoor signage window facing display

LH75OMAEBGBXZA Samsung 75" outdoor signage window facing display

BrandSamsung
Model nameOM75A
Screen size75"
Screen typeWindow facing display
Resolution3840(RGB)×2160
Brightness (cd/m²)4000
Overview Specifications Customized Services Support & Shipping

Samsung 75" outdoor signage window facing display LH75OMAEBGBXZA

LH75OMAEBGBXZA is Samsung’s OMA series 75"outdoor signage that with 4000 nits ultra high brightness, and 3840*2160 high resolution, embedded MagicINFO Player boosts performance and modernize space with slim design, it is ideal for a store front window display.

LH75OMAEBGBXZA main features:

Enhance promotions with premium picture quality

Built to optimize promotions in storefront windows, the LH75OMAEBGBXZA delivers high picture quality, displaying content in UHD resolution.and high brightness and polarized sunglass support eliminate any potential display blindness for an uncompromised customer viewing experience.

Crystal Processor 4K

LH75OMAEBGBXZA UHD upscaling feature is made possible by Samsung’s crystal processor 4K, this innovative technology allows the display to play lower resolution content at near 4k-level quality while also improving the visibility of on-screen text and images.

Dynamic Crystal Display

LH75OMAEBGBXZA Immerse your customers in every picture with a wider range of colours. Dynamic Crystal Display creates lifelike images, allowing the viewer to see even the subtlest details.

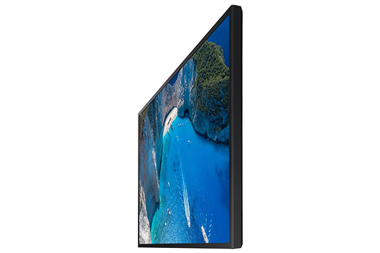

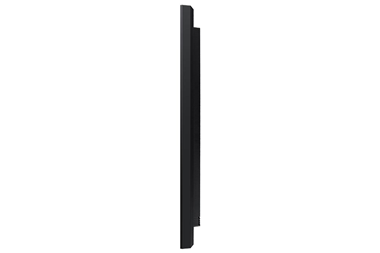

Modernize space with 84.4mm slim design

LH75OMAEBGBXZA the slim design is well complemented the surroundings of any retail environment while freeing up valuable space for all those latest products.

Streamline content management

LH75OMAEBGBXZA is embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.

Clutter-Free Configuration

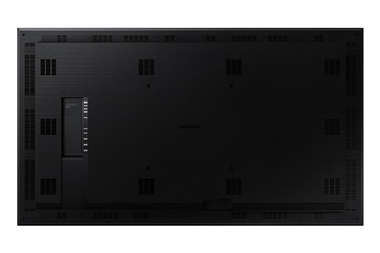

Cable guide and embedded Wi-Fi provide clean, organized look and allow for content and firmware updates without the need for additional messy cables

OM75A 75 inch high brightness display 75 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Item NoOM75A
Panel Brandsamsung display
Diagonal Size75"
TypeVA
Model NoLH75OMAEBGBXZA
Pixel   Pitch(mm)0.4296 x 0.4296
Resolution: 3840*2160   (4K UHD)
Brightness(Typ.)4000   nits
Active Display   Area(mm)1649.664(H) x   927.936(V)
Dispay   Mode IPS
Aspect   Ratio: 16:9
Contrast  Ratio1200:1
View Angle89/89/89/89   (Typ.)(CR≥10)
Color Gamut72%
Operation Hour24/7
Haze1%
Power   Supply AC 100-240V, 50/60Hz
Power   consumption Max(W/h)900
Operating Temperature-20 ~ 70 °C
Package   Weight 48.5kgs
VESA Mount(mm)400*400mm
Bezel   Width(mm)23.9mm
