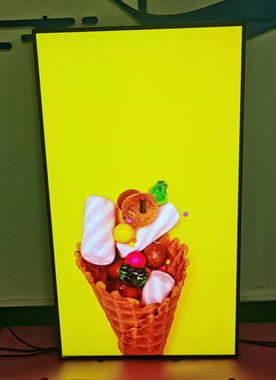

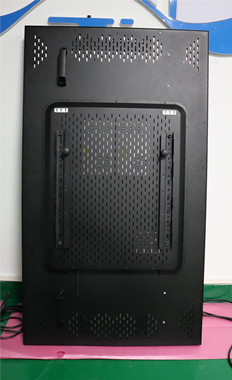

55 inch 3000 nits TFT public digital signage
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
Screen Size | 55” |
Display Area (mm) | 1209.6(H) x 680.4(V) |
Brightness | 3000 cd/m2 |
Resolution | 1920x1080 |
brightness control | Light sensitive dimming, control range 40%-100% |
Aspect Ratio | 16 : 9 |
Contrast Ratio | 1000 : 1 |
Pixel Pitch (mm) | 0.630(H) x 0.630(V) |
Viewing Angle | 178°(H),178°(V) |
Color Saturation (NTSC) | 70% |
Display Colors | 16.7M |
Response Time (Typical) | 14 (Typ.)(Tr/Td) (ms) |
OS |
CPU | |
RAM | |
SDD | |
HDMI*1 VGA*1 AUDIO IN*1 HDMI*1DVI*1 DCIN*1 Light Sensation IN*1 | |
shell material | Aluminum profiles, sheet metal black fine sand spraying |
Input Power | AC100-240V |
Power Consumption | 280W |
Radiator System | Intelligent air cooling |
Dimensions (mm) | 1235*705.8 |
Mounting | M8-400x400mm |
Weight (Net) | TBD |
Operating Temperature | -20 ˚C ~ 60 ˚C |
Storage Temperature | -30 ~ 80 °C |
Risingstar high brightness TFT public digital signage are manufactured specifically to perform in brightly lit environments, even in a direct sunlight. They are ideally suited to a number of applications that including bus shelf, train station, airports, retail store window and public space.
Public tft digital signage Main features:
1. 55 inch HD display: LCD panel of industrial grade, brand-new A-gauge panel.
2.High brightness: 3000 nits sunlight readable TFT display.
3.Simple design: ultra-thin LCD advertising machine shell
4. Smart brightness control
5. Blackening Defect Free
6.Customization: The production line is fully managed by ISO 9001 advanced scheme, and can customize shell shape, fuselage color, and silk LOGO according to customer requirements.
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
