32 Inch Outdoor Waterproof Digital Signage Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
| Display | Panel Size | 32 inch |
| Display Area | 698.4*392.8mm | |
| Brightness | 3000 nits sunlight readable | |
| Resolution: | 1920*1080 | |
| Aspect Ratio: | 16:9 | |
| Response Time | 6/9 (Typ.)(Tr/Td) ms | |
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |
| Backlight | （DLED) | |
| Life Hour | 50000H | |
| Control System | Smart Dimming | Support |
| Intelligent Temperature Control | Support | |
| Remote Control Function | Support |
| AV Inputs | Video | HDMI, VGA |
| Electrical Parameters | Input Voltage | AC110V/220V,50/60HZ |
| Maximum Power | 80W | |
| Shell | Shell Material | Sheet Metal |
| Product Size | 798*491*108mm | |
| Weight | 28kg | |
| Protection Glass | Thickness | 5mm AR tempered glass |
| Accessories | Included | AC Power Cable, Remote Control, Wall Mount |
| Operating Environment | Operating Environment | Outdoor |
| Operating Ttemperature and Humidity | -20-70℃/5%-95%RH | |
| Multimedia | Motherboard Type | Android/PC/HD Driver Board (optional) |
| IO interface | HDMI/VGA/DVI |
Reliable Global Supplier of Outdoor IP65 Waterproof LCD Digital Displays

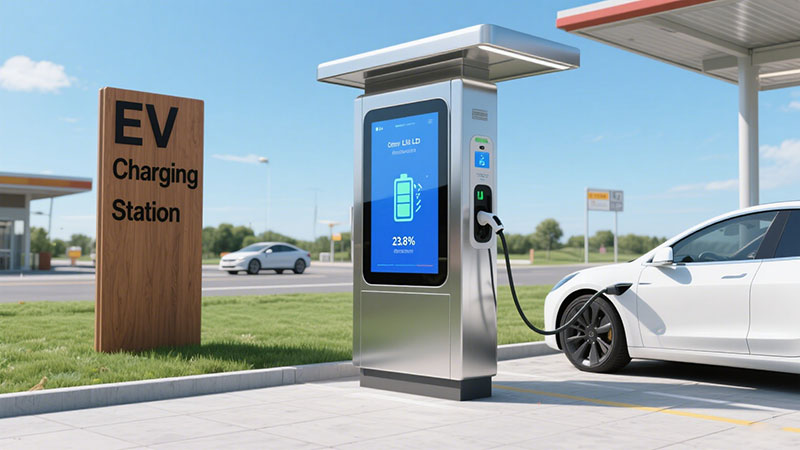

Durable screens built for all weather, delivering sharp visibility in rain, dust, or sunlight. Trusted worldwide for smart retail, transit hubs, and EV charging stations.
32 Inch Outdoor Waterproof LCD Display | 2500 Nits Sunlight-Readable, IP65 Weatherproof for Retail, Transit Stops & Gas Stations. CE/FCC/RoHS Certified, 24/7 Operation (-20 ~ 70°C). Custom Sizes & Content Solutions.
Why Choose RisingStar?
Affordable for small shops, reliable for large projects! RisingStar specializes in 3,000-nit ultra-bright outdoor waterproof displays, engineered with IP66 weatherproofing to withstand heavy rain, dust, and extreme temperatures from -20 ~ 70°C. Perfect for community stores, bus stops, and gas stations, our displays offer flexible size and content customization, 24/7 stable operation, and minimal maintenance costs—saving you money means more profit!
Key Features with Citations:
1. 4,000-nit brightness for sunlight readability
2. IP66-rated dust/water resistance
3. All-weather durability (-20 ~ 70°C)
4. Modular customization for diverse scenarios1
5. 24/7 operation with low maintenance
IK10 tempered glass with optical bonding provides the strongest protection
Having multiple national patent certificates
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
